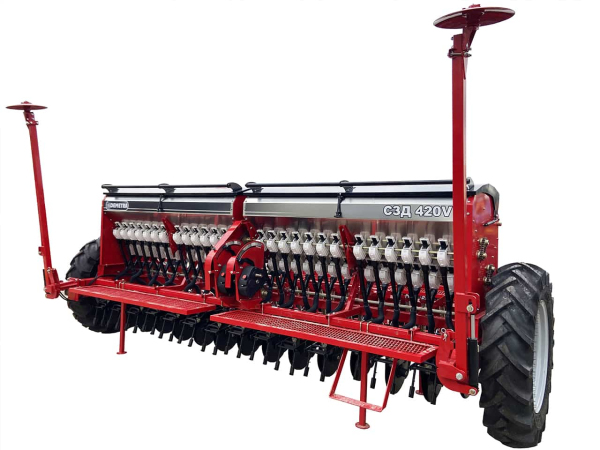

Variable grain seeder СЗД-420V
SZD-420V – grain seeder with a continuously variable transmission (variator), designed for row seeding (wheat, barley, rye, oats), legumes (soy, peas, beans, chickpeas), and small‐seeded crops (rapeseed, mustard, flax) of loose and medium‐loose grass seeds with simultaneous application of mineral fertilizers.
Advantages of this seeder:
-
Continuously variable transmission (variator) -
Hopper rear wall made of stainless steel -
Seed metering and fertilizer metering devices made of polymer materials -
Reinforced seeder frame -
Enlarged hoppers for grain and fertilizers -
Small‐seed metering device -
Seeder discs made of boron‐containing steel 30MnB5, 3 mm thick -
Seed metering bar is 10 mm thick -
Reinforced seeder shock absorber (16 mm bar, 6 mm spring) -
Counter‐drive shafts mounted on rolling bearings -
Detailed powder coating -
Anti‐corrosion galvanic coating on selected parts
| Specification Names | Unit | Parameters | |||
| SZD 360-V | SZD 420-V | SZD 540-V | |||
| Productivity per 1 hour of main operation | ha/h | 3.2-4.3 | 3.8-5.0 | 4.9-6.5 | |
| Working speed during main operations | km/h | 9-12 | |||
| Working capture width | m | 3.6 | 4.2 | 5.4 | |
| Row spacing | cm | 15 | |||
| Fertilizer placement depth | mm | 20-80 | |||
| Number of seeding sections | pcs | 24 | 28 | 36 | |
| Seed seeding rate | kg/ha | 0.5-400 | |||
| Limits for mineral fertilizer seeding rate | kg/ha | 25-200 | |||
| Seed placement depth | mm | 20-80 | |||
| Weight of the seeder empty/filled with grain and fertilizers | kg | 1680/2700 | 2680/ | 2830/ | |
| Overall dimensions of the seeder in working position with the transport device and markers | m |
| |||
|
| Length | 3.50 | 3.80 | 4.55 | |
| Width (excluding markers) | 4.60 | 5.30 | 6.50 | ||
| Height | 2.90 | ||||
| Hopper capacity (total) | m3 |
| |||
|
| for seeds | 0.720 | 0.900 | 1.140 | |
| for fertilizers | 0.350 | 0.440 | 0.552 | ||
| Overall dimensions of the seeder in transport position with markers | m |
| |||
|
| Length | 3.50 | 5.80 | 6.90 | |
| Width | 4.60 | 3.00 | 3.00 | ||
| Height | 2.90 | 3.30 | 3.30 | ||
| Transport speed, maximum | km/h | 20 | |||
| Ground clearance, minimum | mm | 300 | |||
| Deviation of seeding between individual seeding devices, maximum | % | 0.5 | |||
| Volume of damaged (crushed) seeds, maximum | % | 0.2 < Video review Reviews Write a review There are no reviews for this product Write a review  Recommended products   Variable grain seeder СЗД-540V СЗД-540V
SZD-540V (SZ-5.4) – Grain Seeder with a continuously variable transmission (variator), designed for row seeding (wheat, barley, rye, oats), legumes (soy, peas, beans, chickpeas), small-seeded crops (rapeseed, mustard, flax) of loose and medium-loose grass seeds with simultaneous application of mineral fertilizers.
Advantages of this seeder :
Variator (continuously variable transmission mechanism)
Rear wall of the tank made of stainless steel
Seed metering and fertilizer metering devices made of polymer materials
Reinforced frame of the seeder
Enlarged hoppers for grain and fertilizers
Small-seed metering device
Seeder discs made of boron-containing steel 30MnB5, 3 mm thick
The seed metering bar has a thickness of 10 mm
Reinforced seeder shock absorber (16 mm bar, 6 mm spring)
Counter-drive shafts mounted on rolling bearings
Powder coating of individual parts
Anti-corrosion galvanic coating on some parts
Specification Names
Unit of Measure
Parameters
SZD 360-V
SZD 420-V
SZD 540-V
Productivity per 1 hour of main operation
ha/h
3.2-4.3
3.8-5.0
4.9-6.5
Working speed during main operations
km/h
9-12
Working capture width
m
3.6
4.2
5.4
Row spacing
cm
15
Fertilizer placement depth
mm
20-80
Number of seeding sections
pcs
24
28
36
Seed seeding rate
kg/ha
0.5-400
Fertilizer seeding rate limits
kg/ha
25-200
Seed placement depth
mm
20-80
Weight of the seeder empty/filled with grain and fertilizers
kg
1680/2700
2680/ 3960
2830/ 4450
Overall dimensions of the seeder in working position with the transport device and markers
m
Length
3.50
3.80
4.55
Width (excluding markers)
4.60
5.30
6.50
Height
2.90
Bunker capacity (total)
m 3
for seeds
0.720
0.900
1.140
for fertilizers
0.350
0.440
0.552
Overall dimensions of the seeder in transport position with markers
m
Length
3.50
5.80
6.90
Width
4.60
3.00
3.00
Height
2.90
3.30
3.30
Transport speed, maximum
km/h
20
Ground clearance, minimum
mm
300
Deviation of seeding between individual seeding devices, maximum
%
0.5
Volume of damaged (crushed) seeds, maximum
%
0.2
617 000 UAH Latest reviews  05.01.2026, 17:39
