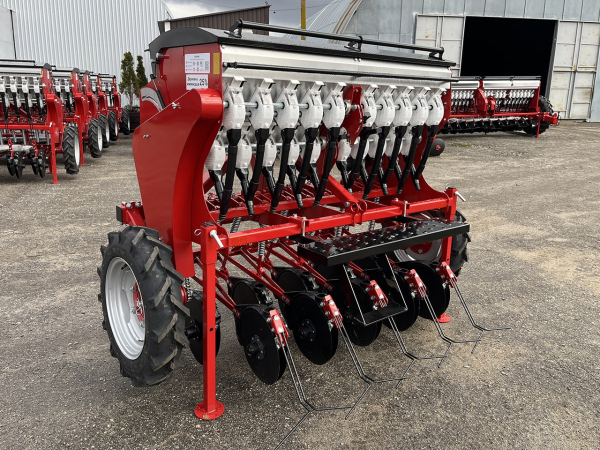

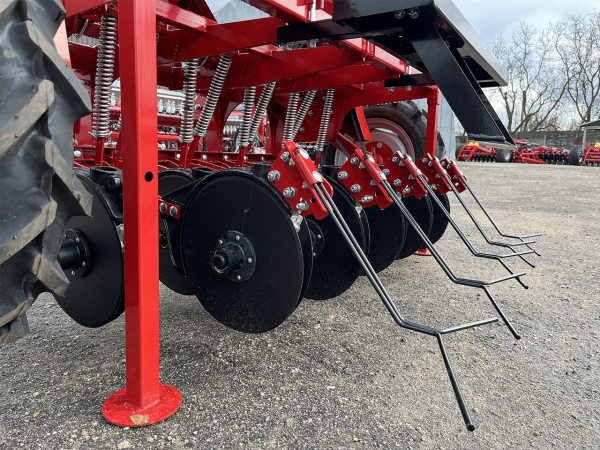

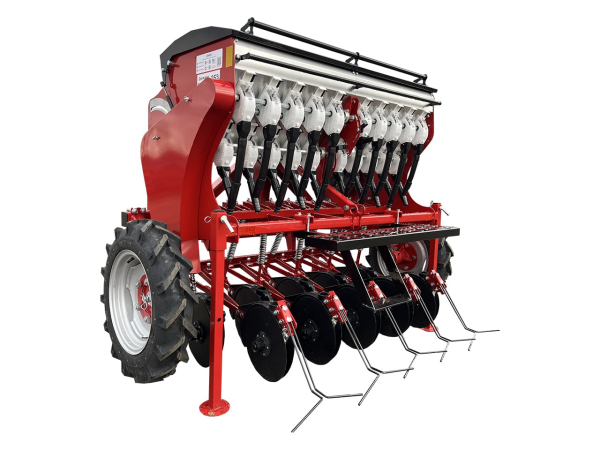

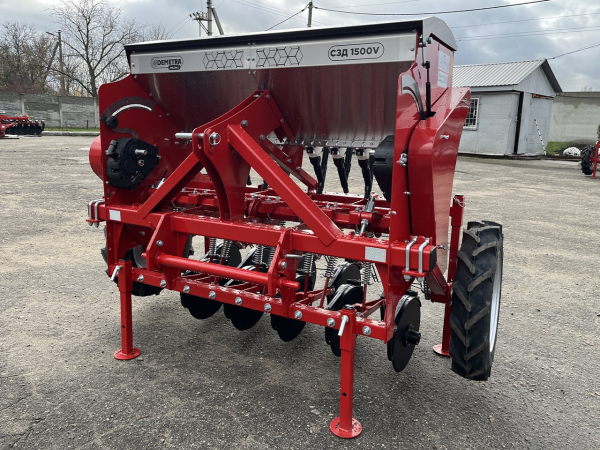

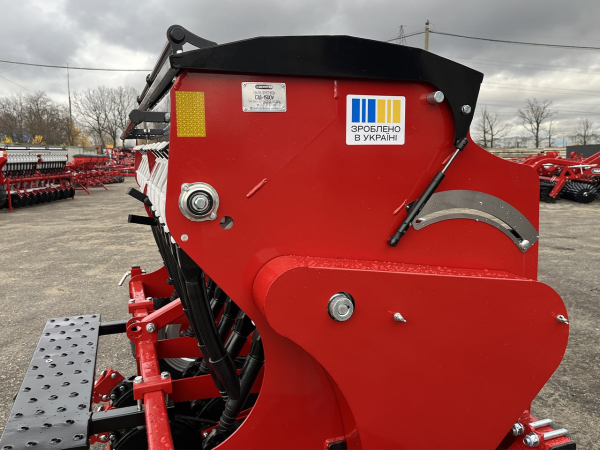

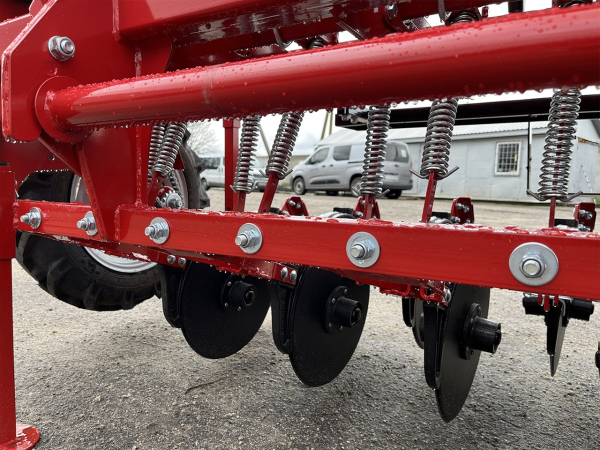

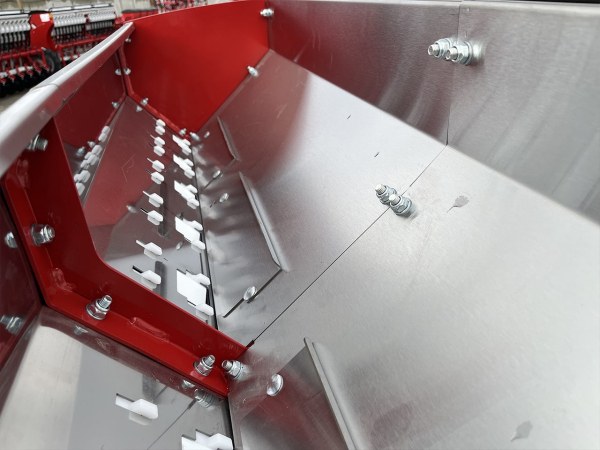

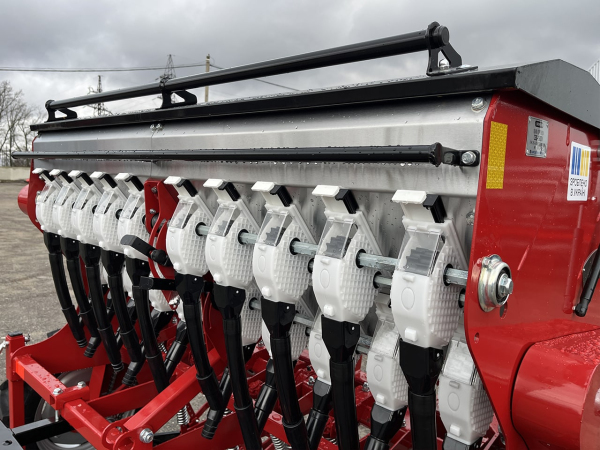

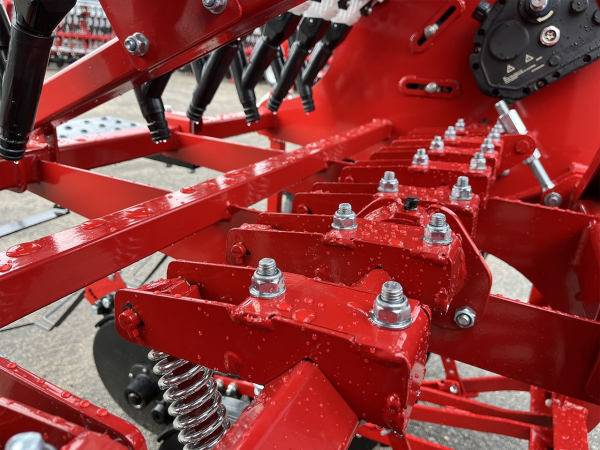

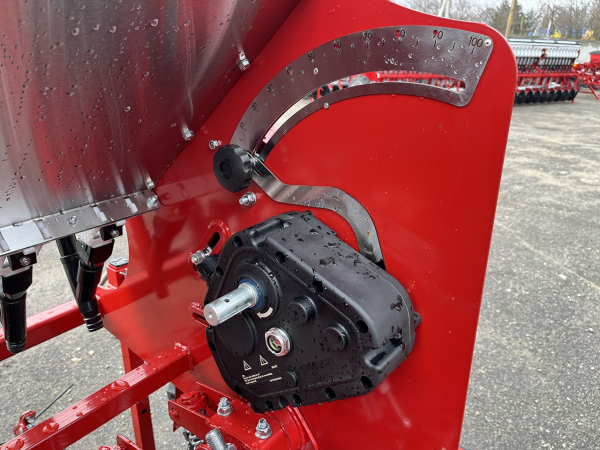

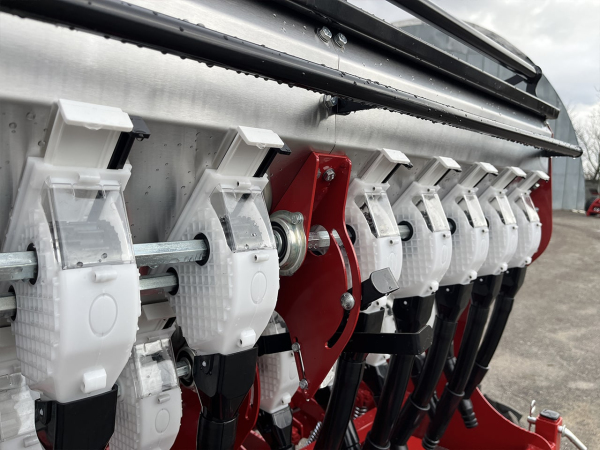

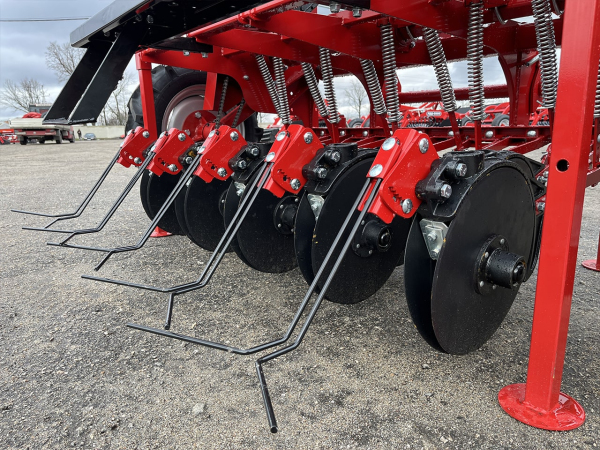

Seed drill "DEMETRA MINI" СЗД 1500V
Mounted Cultivator KPN-4.2
is designed for inter-row cultivation of corn, sunflower, castor, and other row crops, featuring complete weed cutting and high-quality soil loosening with simultaneous application of granular mineral fertilizers (in bags).
The parallelogram suspension of the working tool sections ensures that the soil surface is accurately followed, while atmospheric tires and rubberized rollers provide self-cleaning from adhered dirt. An option is available for continuous cultivation using single-sided flat-cutting shares.
Advantages of our cultivator:
- Reinforced section with a 16 mm thick bar
- All section components mounted on bearings
- Steel-cast holders for working tools
- Atmospheric (soft) tire
- Transport device
- Powder coating
- Anti-corrosive galvanic coating on selected parts
| No. z/p | Parameter Name | Value | ||||
| KPN-4.2 | KPN-5.6 | |||||
| 1 | Cultivator productivity per hour of main operation, ha/h | 4.0–4.6 | 5.5–6.0 | |||
| 2 | Minimum tractor drawbar power, hp | 65 | 80 | |||
| 3 | Working speed, not more than, km/h | 12 | ||||
| 4 | Weight, kg | 1625 | 2050 | 2800 | 3900 | 4200 |
| 5 | Working width, m | 4.2 | 5.0 | 6.0 | 8.0 | 10.0 |
| 6 | Cutting sweep width, mm | 260 | ||||
| 7 | Tillage depth, up to, cm | 5–12 | ||||
| 8 | Tillage depth for weed removal, cm | 7 | ||||
| 9 | Number of cutting sweeps, pcs | 20 | 26 | 31 | 41 | 49 |
| 10 | Number of packer drums, pcs | 2 | 2 | 4 | 4 | 6 |
| 11 | Overall dimensions, m |
| ||||
|
| – Length | 5.4 | 7.7 | 7.6 | 7.6 | |
|
| – Working/transport width | 4.2 | 5.2 | 6.2/4.2 | 8.6/4.9 | 9.9/4.9 |
|
| – Working/transport height | 1.0/1.3 | 1.0/1.3 | 1.4/2.6 | 1.4/3.2 | 1.4/3.8 |
| 13 | Maximum transport speed, km | 20 | ||||
| 14 | Road clearance, mm | 300 | ||||
|
|
| |||||
