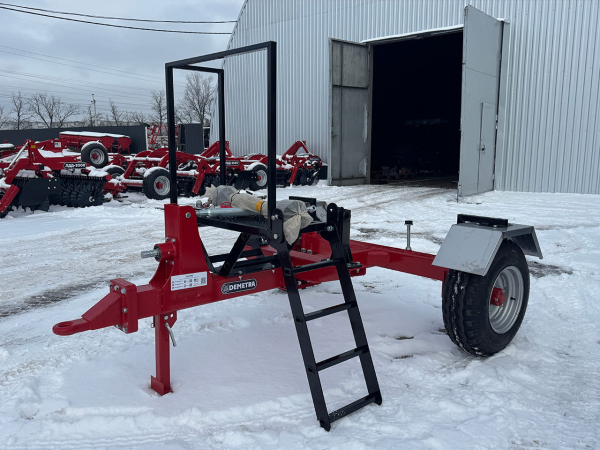

Transport trolley VT-3 for mineral fertilizer spreaders
Precision Seeding Seeder SPM-8 (M) – Analog Vesta 8
A universal pneumatic seeder designed for the precise (dotted) seeding of calibrated seeds: corn, sunflower, sorghum, soybean, as well as feed legume seeds: soybean, bean and lupine, with simultaneous, seed-independent application of granular mineral fertilizers and soil covering in the rows.
Advantages of this seeder:
- Inter-section placement of drive wheels
- Modern seeding control system
- The best air blower (fan) on the market
- Transport mechanism
- High-quality materials
- Fasteners with a strength class of 8.8
- Hoppers made of high-quality polymer alloy, resistant to ultraviolet radiation and temperature fluctuations
- Steel screw shaft in the fertilizer application system
- Hydrofied marker system
- Detailed powder coating
- Anti-corrosion galvanic coating on selected parts
- 1-year warranty.
TECHNICAL SPECIFICATIONS
| No. item | Specification Name | Unit | Corresponding Parameters | ||||
| SPM‑4.0 | SPM‑6.0 | SPM‑8.0 | SPM‑12.0 | ||||
| 1 | Minimum Tractor Power for Coupling | hp | 25 | 65 | 80 | 80 | |
| 2 | Productivity per 1 Hour of Main Operation | ha/h | 6-9 | 8-11 | 10-14 | 8-11 | |
| 3 | Working Speed during Moisture-Conserving Soil Treatment | km/h | 2.5-9 | ||||
| 4 | Working Capture Width | m | 2.8 | 4.2 | 5.6 | 5.6 | |
| 7 | Row Spacing | mm | 450-700 | ||||
| 8 | Seed and Fertilizer Placement Depth (min-max) | mm | 40..120 | ||||
| 13 | Seeder Weight | t | 0.75 | 1.0 | 1.25 | 1.5 | |
| 14 | Overall Dimensions of the Seeder (without markers) in Working Position | m |
3.35 |
4.75 |
6.15 |
6.15 | |
|
| length | ||||||
| width | 2.3 | ||||||
| height | 3.0 | ||||||
| 16 | Transport speed, not more than | km/h | 15 | ||||
| 17 | Road clearance, not less than | mm | 300 | ||||
