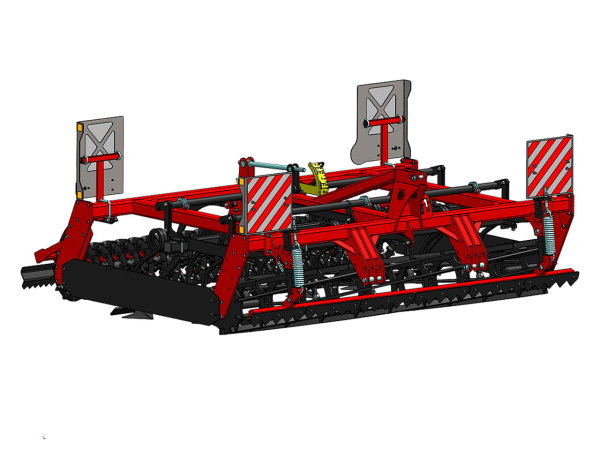

Compactor TOR-3 pre-planting combinations
Learn moreMore about "Compactor TOR-3 pre-planting combinations"
Purpose of the Compactor:
The compactor is used for leveling the soil surface and preparing the seedbed before sowing. An important part of pre-sowing preparation is achieving a level soil profile after prior operations.
Technical Specifications of the TOR-3 Compactor
Working width – 3 meters
Productivity – 1.8-3,2 ha/hour
Working speed – 8-14 km/hour
Working depth – from 1 to 10 cm
Number of main working elements:
Tine type 270 mm, two-twist stand 25x25 mm
Number of auxiliary working elements:
Leveling bars – 3 pcs;
Clod breaking roller – 1 pc;
Consolidation roller – 2 pcs;
Recommended tractor power – from 90 hp
Weight of the unit – 1560 kg
The TOR-6 compactor performs 6 operations simultaneously, namely:
- The clod breaking roller crushes large clods, preparing the soil for the proper operation of the tine tines
- The tine tines loosen the soil and cut weeds to prepare the seedbed at the desired depth
- Levels the processed soil after the tine tines with an additional independent bar
- Consolidates the soil with the rear roller, which finely breaks down the remaining clods and restores the soil structure, thus pulling moisture to the surface
- Finally, levels the soil surface with the toothed bar for further sowing.
The "TOR" compactors are the optimal solution for farmers looking for a reliable, efficient, and versatile tool for soil preparation before sowing.
