Cultivator for continuous cultivation КСО-3Н
Learn moreMore about "Cultivator for continuous cultivation КСО-3Н"
| Parameter | Value |
|---|---|
| Тип | Навісний |
| Потужність трактору, не менше, к.с. | 80 |
| Глибина обробітку, см | 5-12 |
| Продуктивність, га/год | 2,5-3,0 |
| Робоча швидкість, не більше, км/год | 12 |

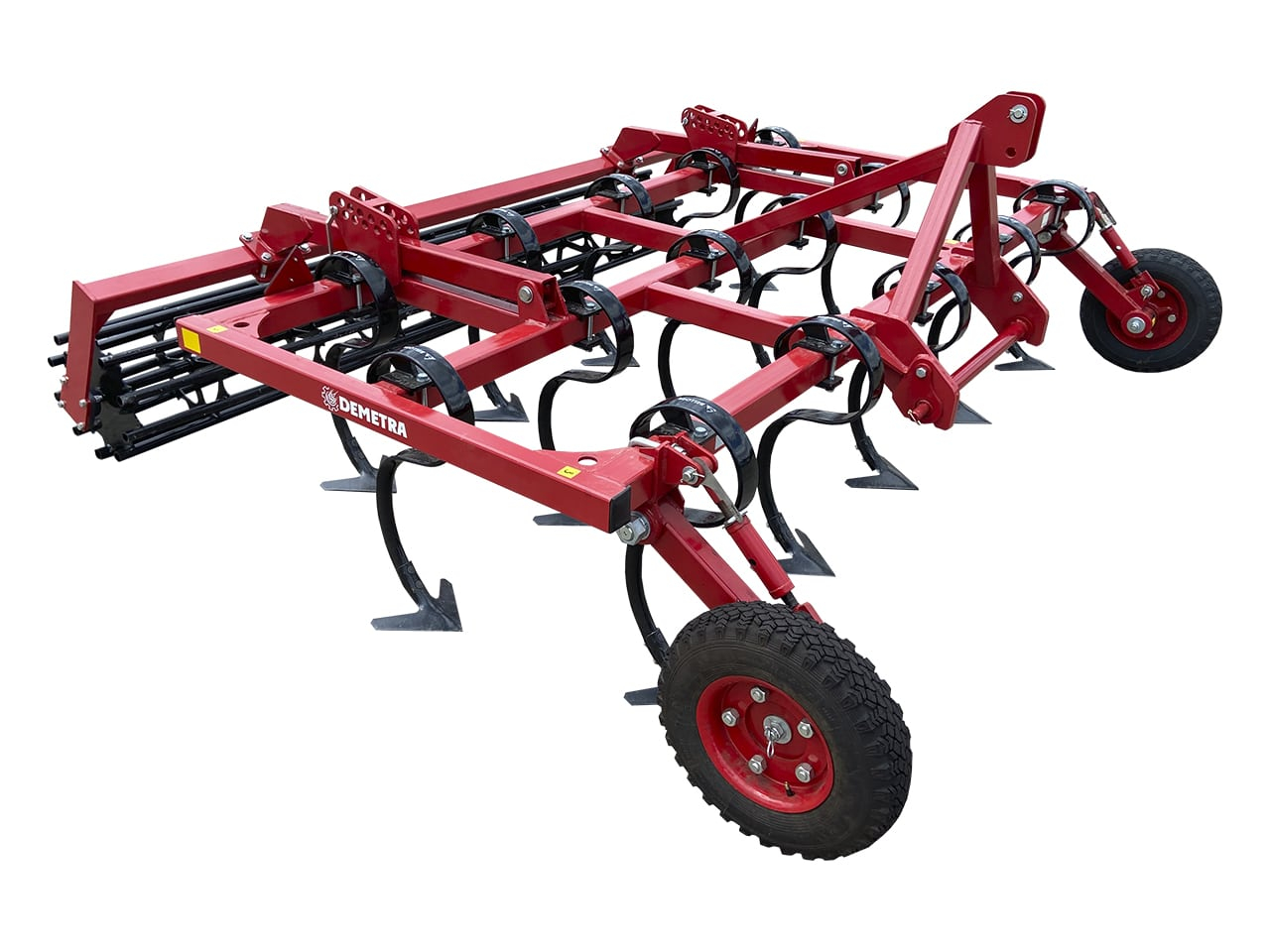

The KSO-3N mounted cultivator of continuous processing is designed for resource-saving pre-sowing and steam cultivation of the soil, cutting and combing weeds, as well as leveling and compacting the soil surface for sowing.
It is used on all types of soil due to its versatility in the form of a variety of adjustments of the cultivator itself and its attachments.
TECHNICAL SPECIFICATIONS OF KSO-3
|
No. z/p |
Name of parameter |
Parameters |
|
|
KSO-3 |
KSO-4 |
||
|
1 |
Productivity of the cultivator per hour of main time, ha/h |
2.5-3.0 |
3.5-4.0 |
|
2 |
Tractor drawbar class, min, hp |
80 |
100 |
|
3 |
Working speed, not more than, km/h |
12 |
|
|
4 |
Weight, kg |
650 |
860 |
|
5 |
Working width, m |
4.0 |
5.0 |
|
6 |
Width of cutting sweeps, mm |
260 |
|
|
7 |
Tillage depth, cm |
5-12 |
|
|
8 |
Number of cutting sweeps, pcs. |
15 |
19 |
|
10 |
Number of packer drums, pcs. |
1 |
2 |
|
11 |
Overall dimensions, m |
|
|
|
|
- length |
2.5 |
2.5 |
|
|
- width |
3.18 |
4.18 |
|
|
- height |
1.12 |
1.12 |
|
12 |
Maximum transport speed, km/h |
20 |
|
