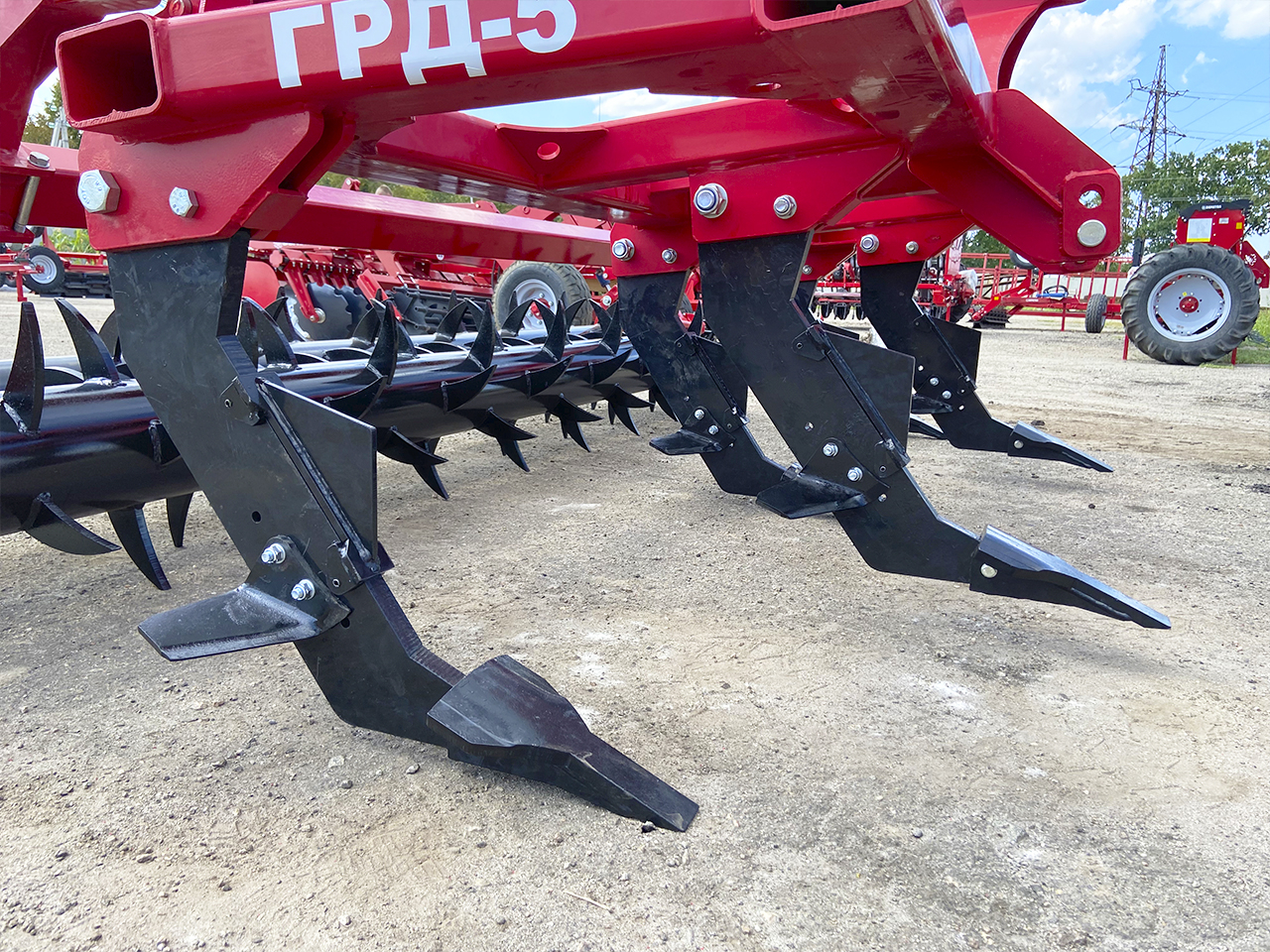

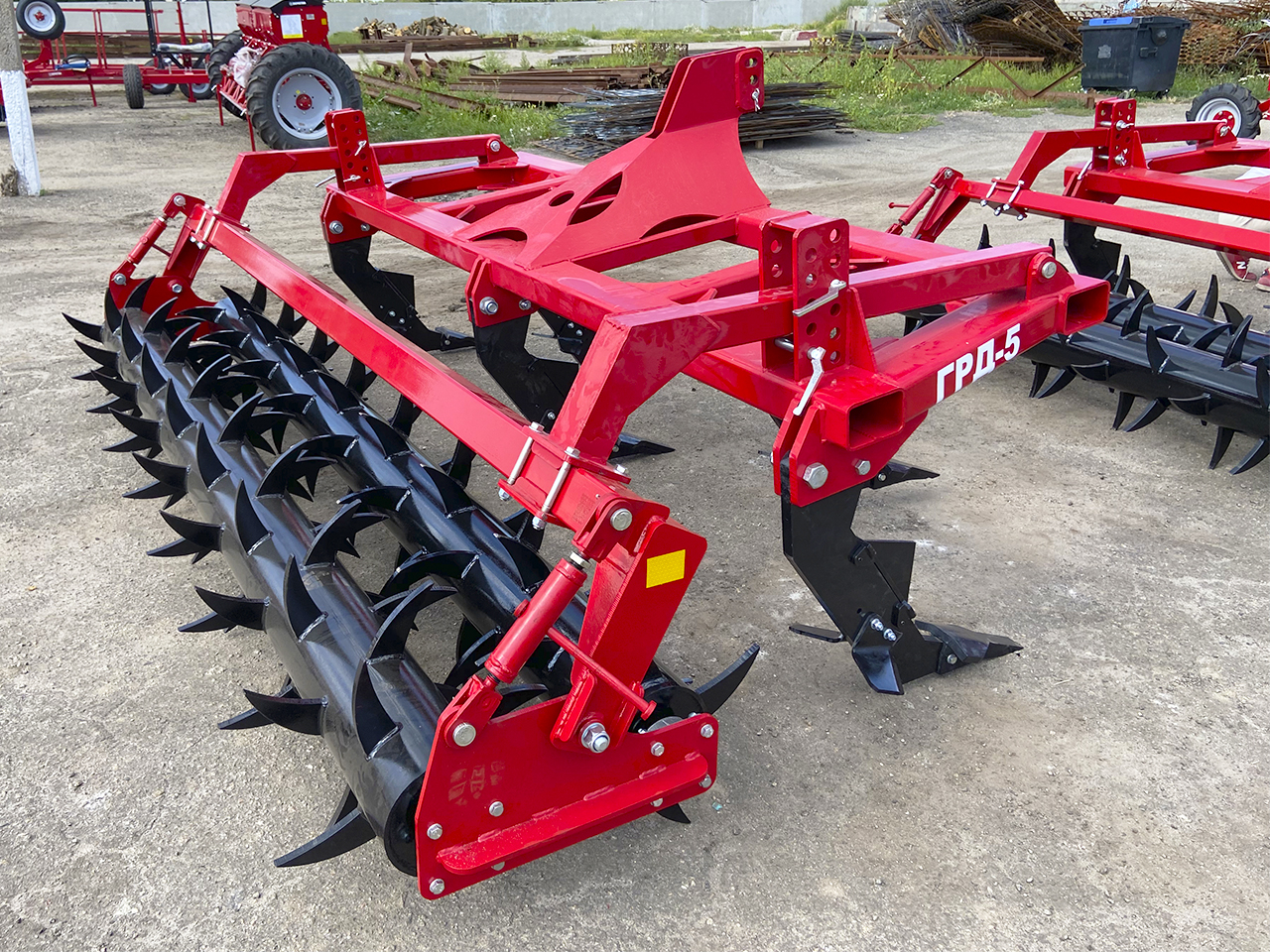

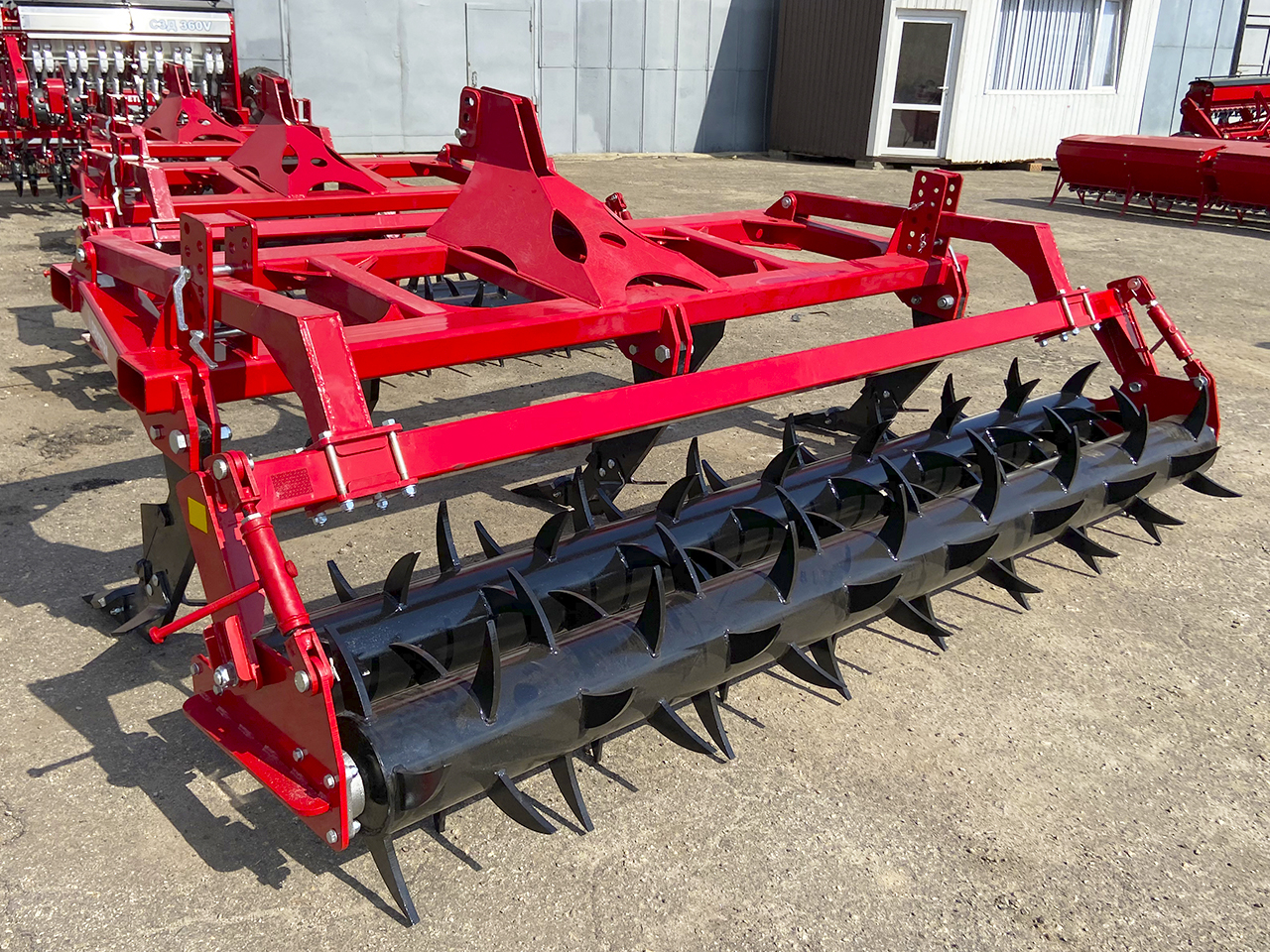

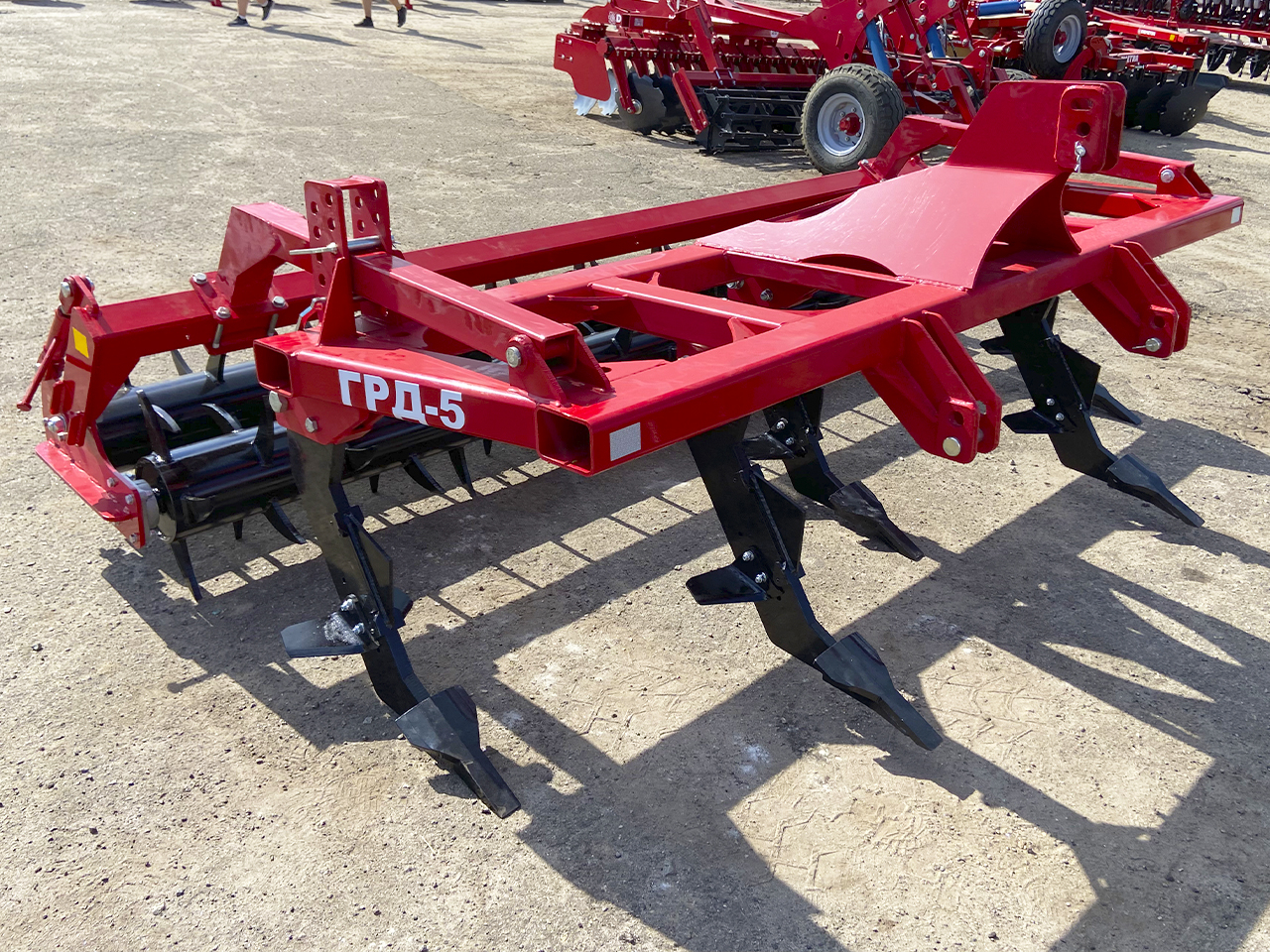

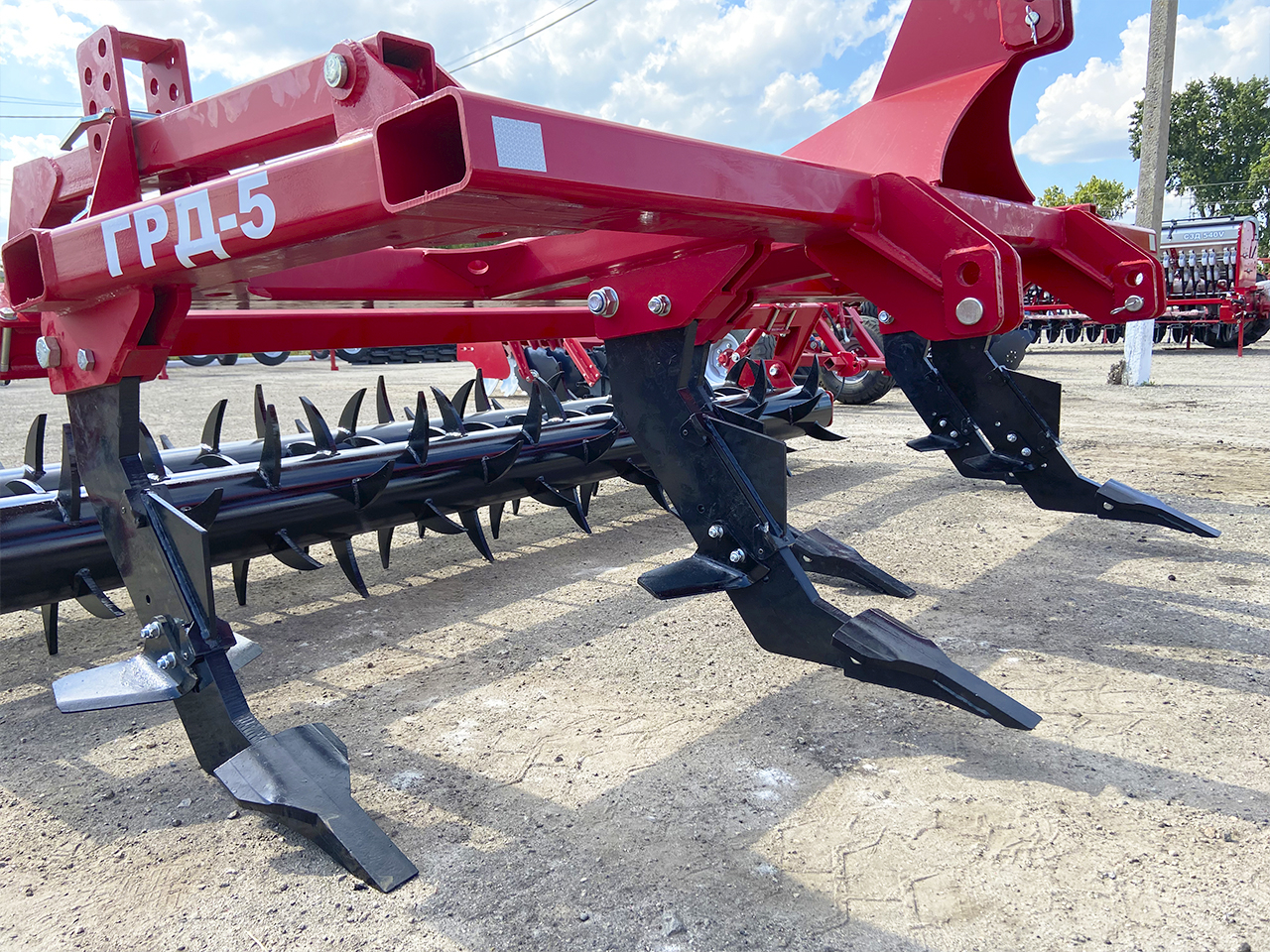

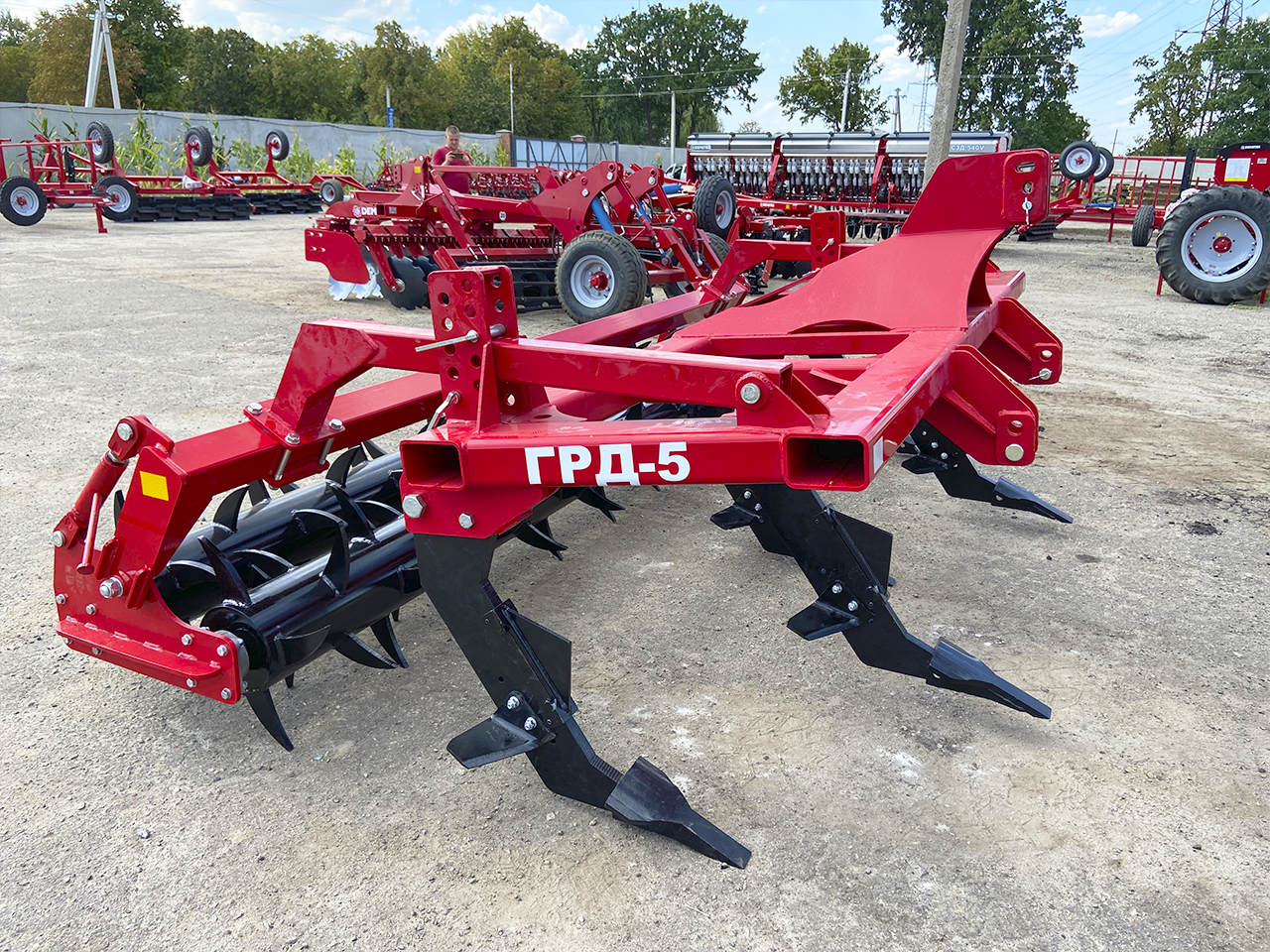

Deep ripper ГРД-5 (3300)
Learn moreMore about "Deep ripper ГРД-5 (3300)"
| Parameter | Value |
|---|---|
| Тип | Навісний |
| Транспортна швидкість, не більше, км/год | 15 |
| Вага, кг | 1280 |
| Ширина обробітку, м | 3,3 |
| Кількість стійок, шт. | 5 |
The purpose of the subsoiler is to destroy the plow pan, preserve moisture, help regulate the air-water balance, and increase fertility.
The HRD subsoiler helps to:
- create conditions for the accumulation of moisture from the air and its even distribution;
- increase porosity and improve the capillary system of the soil;
- activate biological processes that promote active root system development of crops and increase yields by 12-18%;
- remove excess rain and meltwater;
- reduce soil resistance when tractors operate with other equipment. This occurs by decreasing soil density, leading to fuel savings, reduced consumption of lubricants, and lower service loads;
Technical characteristics of subsoilers
|
No. z/p |
Name of parameter |
Values |
||||
|
HRD-3 |
HRD-4 |
HRD-5 |
HRD-5 |
HRD-7 |
||
|
1 |
Productivity per 1 hour of main operation, ha/h |
1.5 |
2.3 |
3.0 |
2.5 |
3.6 |
|
2 |
Number of working shanks, pcs. |
3 |
4 |
5 |
5 |
7 |
|
3 |
Distance between shanks, cm |
60/75 |
75 |
75 |
55 |
55 |
|
4 |
Tractor drawbar power, min, hp |
80 |
120 |
150 |
150 |
200 |
|
5 |
Maximum working depth, cm |
45 |
||||
|
6 |
Working speed, not more than, km/h |
7-10 |
||||
|
7 |
Transport speed, km/h |
up to 15 |
||||
|
8 |
Weight, kg |
780 |
990 |
1210 |
1060 |
1400 |
|
9 |
Working width, m |
1.5 (1.8) |
2.3 (2.6) |
3.0 (3.3) |
2.5 |
3.5 |
|
10 |
Overall dimensions, m |
|
|
|
||
|
- length |
1.5 |
2.3 |
3.0 |
2.5 |
3.6 |
|
|
- width |
2.1 |
2.86 |
3.57 |
2.86 |
3.98 |
|
|
- height |
1.34 |
1.34 |
1.34 |
1.34 |
1.34 |
|
|
11 |
Road clearance, min, mm |
350 |
||||
|
12 |
Warranty period of operation, min, months |
12 |
||||
|
13 |
Warranty service life, ha |
up to 500 |
||||
|
14 |
Service life, min, years |
8 |
||||
