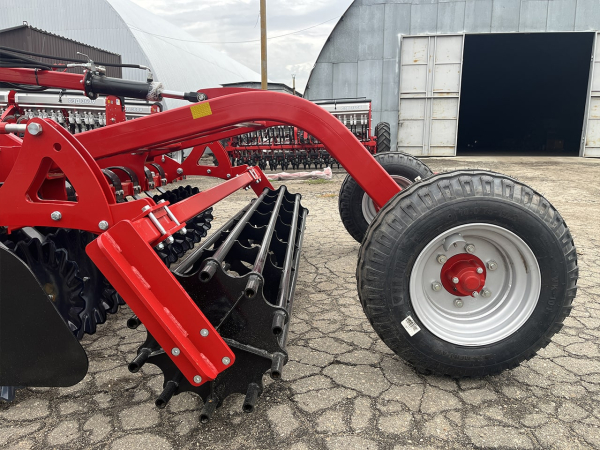

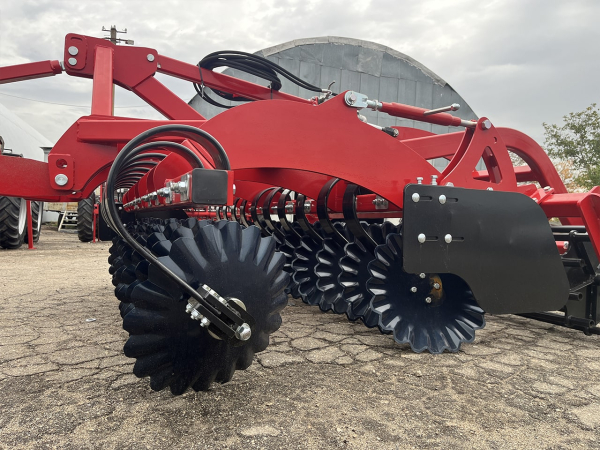

More about "Disc harrow ЛДД-3000 Centaur"
| Parameter | Value |
|---|---|
| Тип | Причіпний |
| Потужність трактору, не менше, к.с. | 100 |
| Продуктивність за 1 годину основного часу, га/год | 3,4 |
| Робоча швидкість до, км/год | 10-18 |
| Робоча ширина захвата, м | 3,0 м |
LDD-3000 Disc Cultivator
It can be used with an MTZ-80 tractor in a trailed version with a transport device, or with more powerful tractors in a mounted version.
Due to the transport device, it is possible to install a mounted seeder behind the harrow for simultaneous sowing of grain crops and mineral fertilizers.
LDD-3000 DISC CULTIVATOR
Technical specifications:
|
|
LDD-300P (Trailed) |
LDD-300N (Mounted) |
|
Tractor power, not less than, hp |
100 |
100 |
|
Productivity per 1 hour of main working time, ha/h |
3.4 |
3.4 |
|
Working speed up to, km/h |
10-18 |
|
|
Working width, m |
3.0 |
3.0 |
|
Working depth, cm |
3-14 |
|
|
Weight +/-3%, kg |
1690 |
1250 |
|
Overall dimensions in working position, m |
|
|
|
- length |
5.35 |
2.46 |
|
- width |
3.4 |
3.4 |
|
- height |
1.65 |
1.35 |
|
Overall dimensions in transport position, m |
|
|
|
- length |
5.15 |
2.46 |
|
- width |
3.4 |
3.4 |
|
- height |
1.7 |
1.35 |
|
Transport speed, not more than, km/h |
20 |
|
|
Number of working tools, pcs. |
|
|
|
discs |
24 |
24 |
|
packer rollers |
1 |
1 |
|
Diameter of working tools (discs), cm |
51/56 |
|
|
Distance between working tools, cm |
25 |
|
|
Disc angle of attack, degrees |
20 |
|
|
Distance between rows of working tools, cm |
90 |
|
