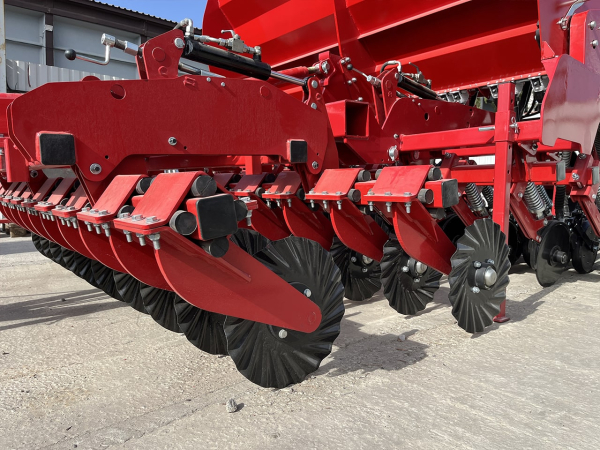

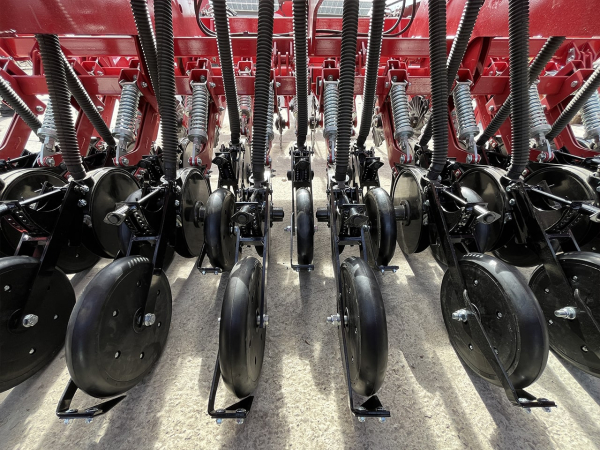

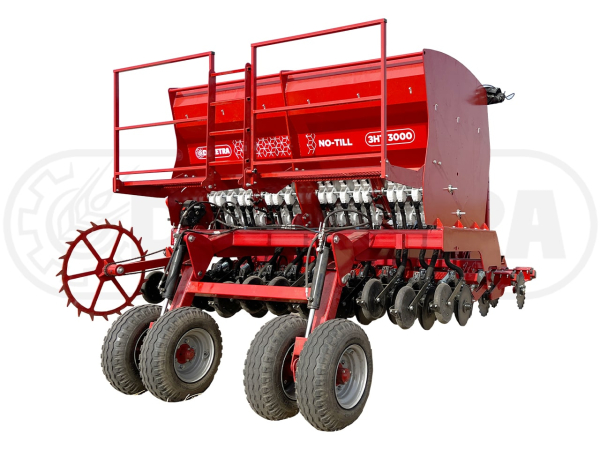

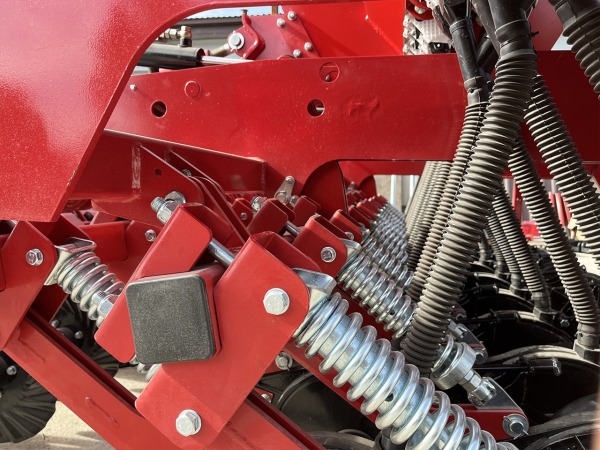

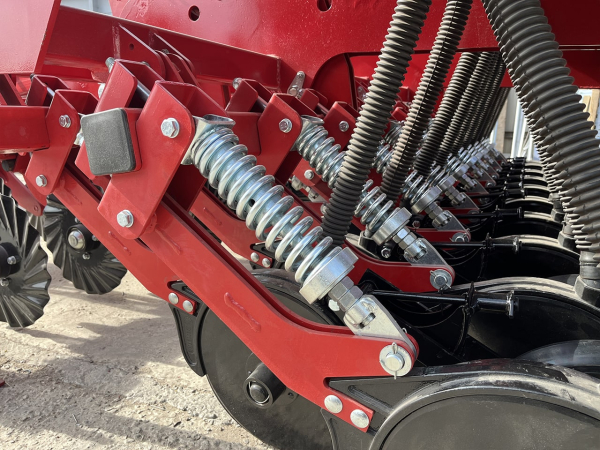

Grain seed drill ЗНТ-3000 No-till
Learn moreMore about "Grain seed drill ЗНТ-3000 No-till"
ZNT-3000 No-till grain-fertilizer seeder — this is a specialized unit designed for sowing crops without prior soil cultivation.
The main purpose of this seeder is to reduce soil disturbance, preserve moisture and fertility, and prevent erosion.
It operates by cutting the soil to place seeds while leaving plant residues on the surface. This helps retain moisture and increases biodiversity, as the cover protects the soil from drying out.
No-till seeders can adjust seeding depth and row spacing depending on the crop type. This allows adaptation to various growing conditions.
Technical characteristics
|
Name of parameters |
Unit of measure |
Unit |
|
|
ZNT-3000 |
|||
|
Tractor power, not less than |
hp |
100 |
|
|
Productivity per 1 hour of main operating time |
ha/h |
2.7-3.6 |
|
|
Working speed in main operations, not more than |
km/h |
9-12 |
|
|
Working width |
m |
3 |
|
|
Row spacing |
cm |
15-26 |
|
|
Seeding and fertilizer placement depth (min-max) |
cm |
2-8 |
|
|
Weight of empty seeder |
kg |
4500 |
|
|
Overall dimensions of the seeder in working position |
m |
|
|
|
|
length |
6.4 |
|
|
width |
3 |
||
|
height |
2.5 |
||
|
Hopper capacity (total) |
m3 |
3.5 |
|
|
|
for seeds |
% |
from 70 to 40 |
|
for fertilizers |
% |
from 30 to 60 |
|
|
Overall dimensions of the seeder in transport position |
m |
|
|
|
|
length |
6.0 |
|
|
width |
3 |
||
|
height |
3.0 |
||
|
Transport speed, not more than |
km/h |
20 |
|
