High-speed wide-mesh plow ПШН-4
Learn moreMore about "High-speed wide-mesh plow ПШН-4"
| Parameter | Value |
|---|---|
| Тип | Навісний |
| Робоча швидкість, не більше, км/год | 10 |
| Вага, кг | 840 |
| Робоча ширина, м | 2,4 |
| Транспортна швидкість, не більше, км/год. | 15 |

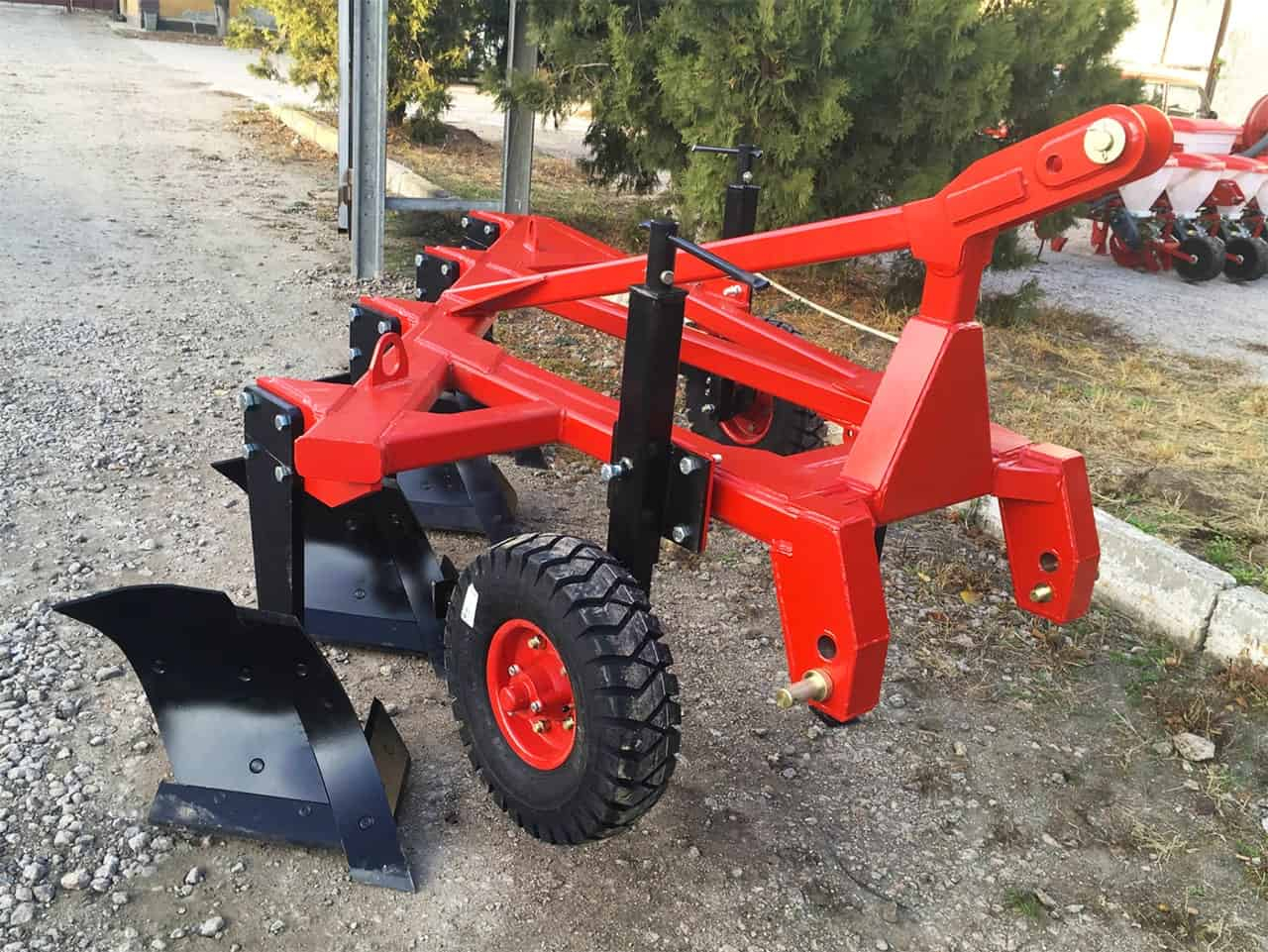

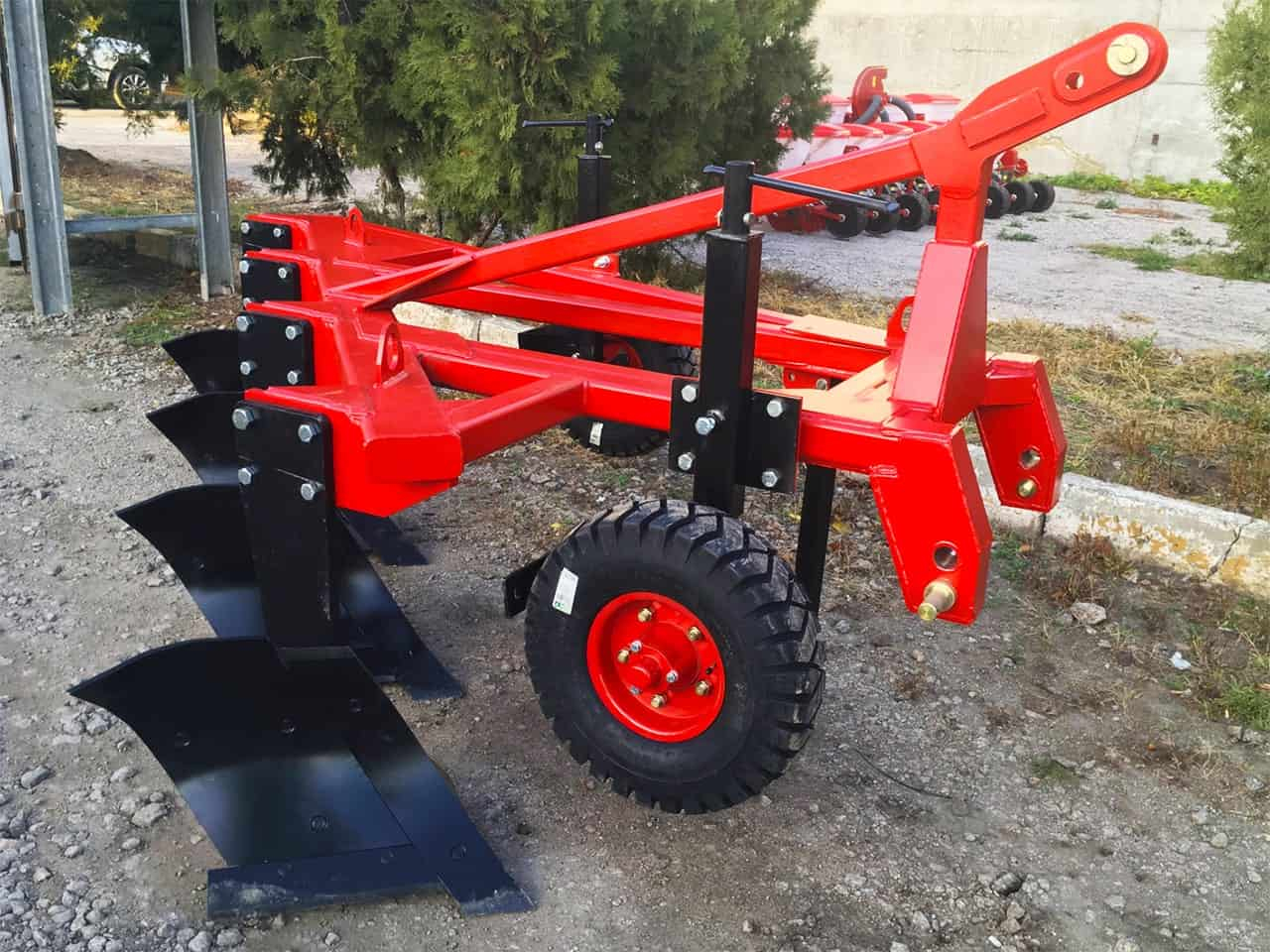

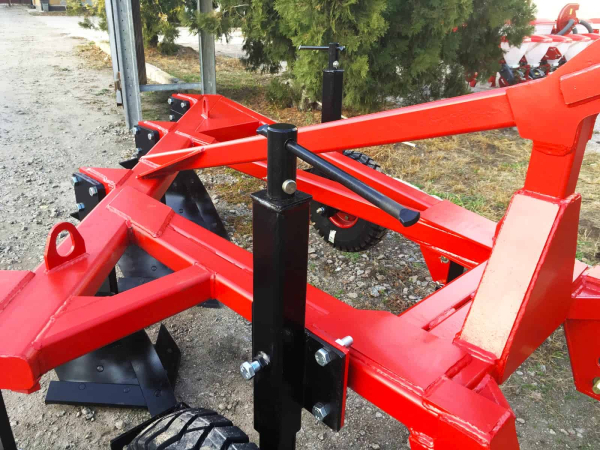

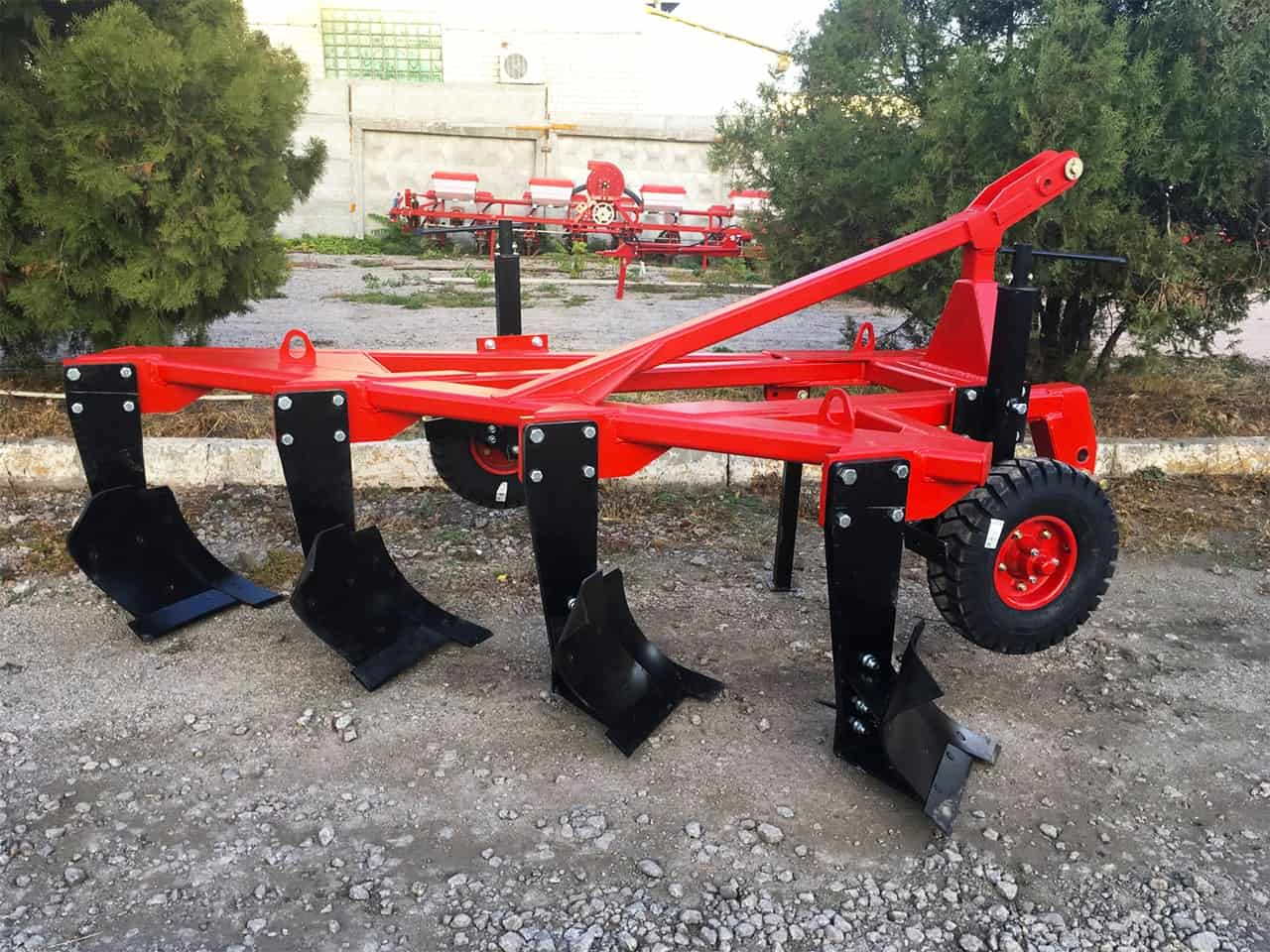

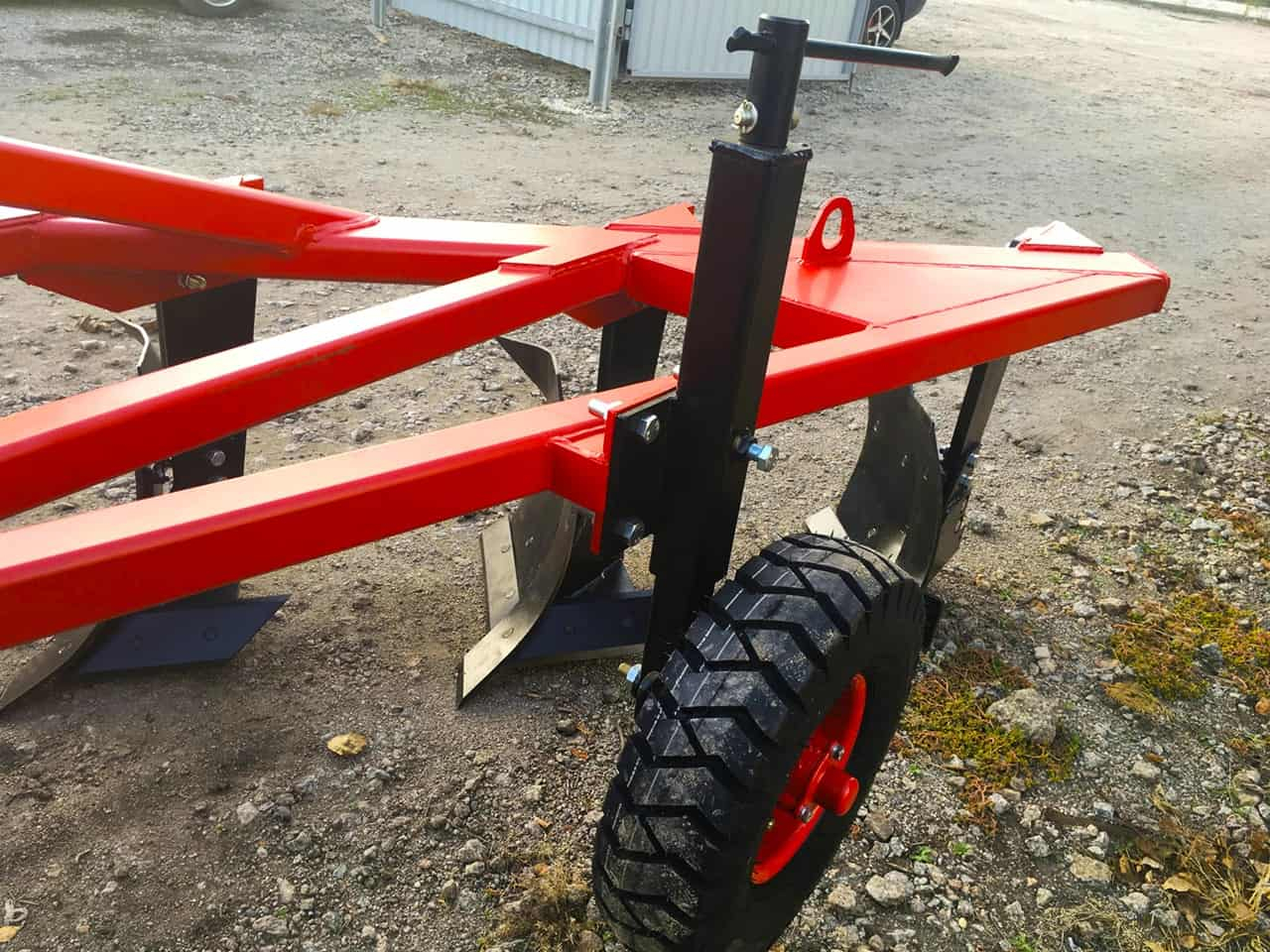

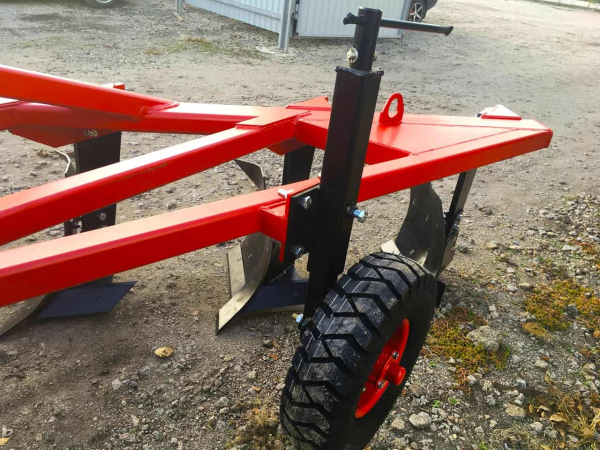

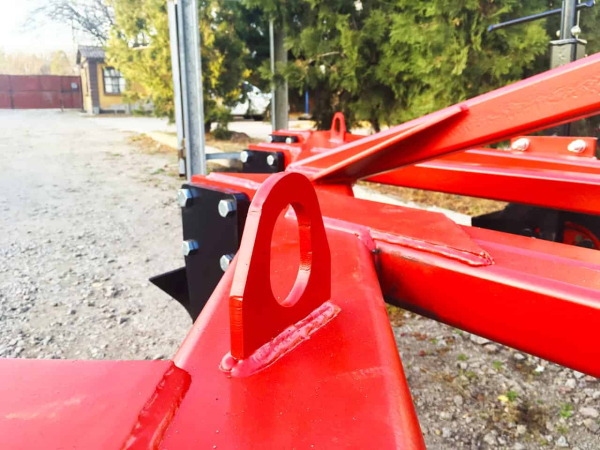

High-speed mounted plow PSHN-4
(PSKu, PSK, PSHK)
- designed for primary non-inversion and inversion tillage of soil for sowing agricultural crops at a depth of 350 mm. During soil tillage, the plow creates neat, stepped furrows that retain moisture. This feature makes the model recommended for use on slopes prone to rapid moisture loss.

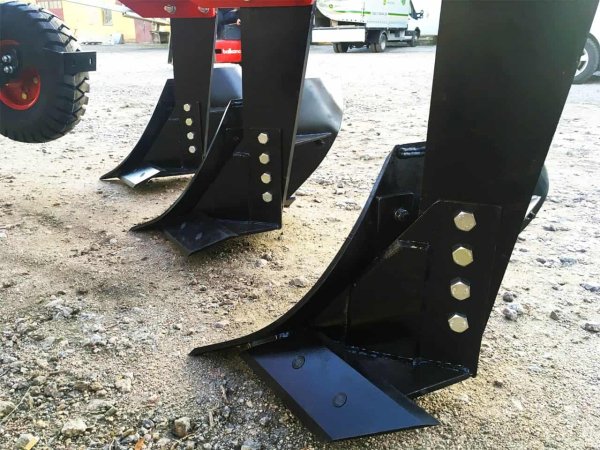

The equipment can be mounted on tractors with a power of 180 hp and used on fields with a flat terrain, with a slope up to 8° and any type of soil. During operation, the tractor moves not along the furrow, but along the level surface of the field, thereby eliminating a shortage of lubricants in the left section of the tractor's transmission. The high productivity of the PSHN-4 plow is achieved thanks to the new design of the working element, where instead of a field board, a counteracting blade (knife) is installed, which has reduced the plow's traction force by 40% and increased the capture width of a single working element.
Plow Specifications:
- Productivity - 1.6-1.9 ha/hour
- Capture width - 2.4 m
- Frame width - 600 mm
- Working speed - 10 km/h
- Number of frames - 4
- Tillage depth - 250-350 mm
- Weight - 840 kg
- Tractor power - from 150 hp
