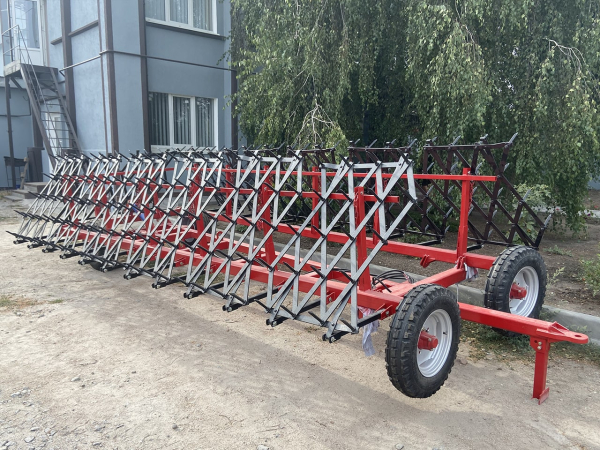

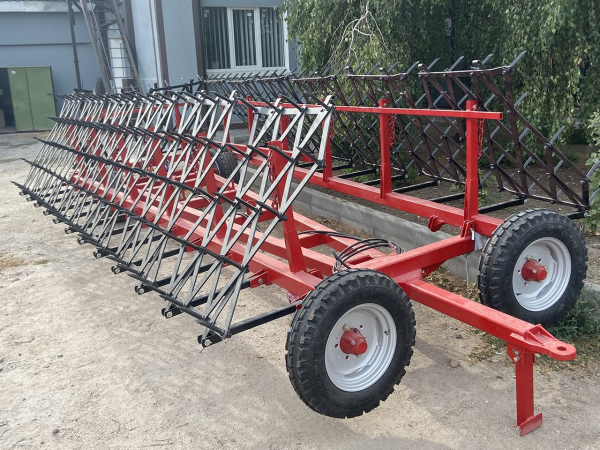

Hydraulic harrow БПГ-14
Learn moreMore about "Hydraulic harrow БПГ-14"
| Parameter | Value |
|---|---|
| Тип | Причіпна |
| Потужність трактору, не менше, к.с. | 80 |
| Глибина обробітку, см | 5-8 |
| Продуктивність, га/год | 14-16,8 |
| Робоча швидкість, не більше, км/год | 12 |

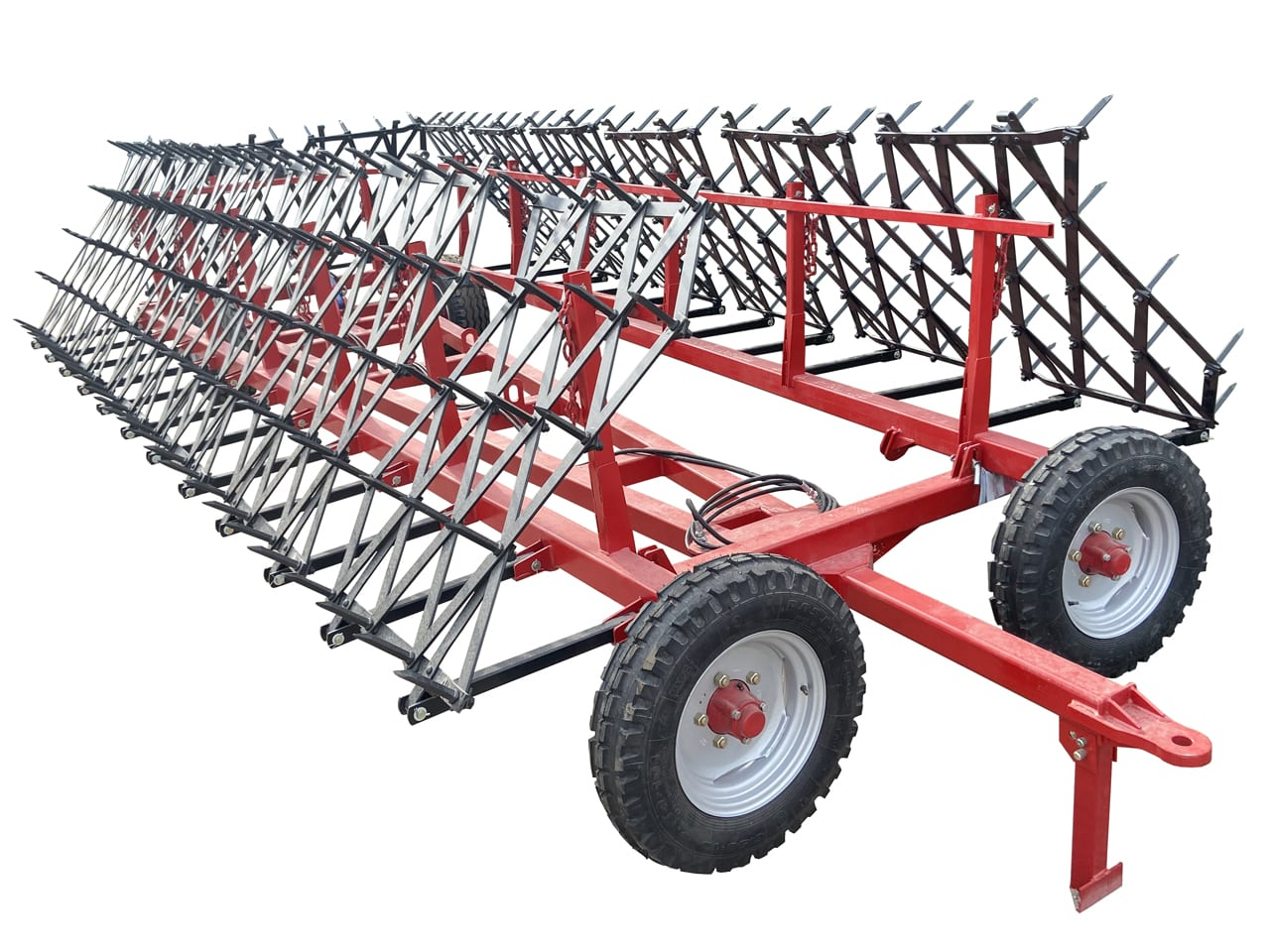

Harrow BPG-14 (Hydraulic Towed Harrow)
Designed for field harrowing. It is used for soil loosening (moisture retention) by a traditional tillage method and is equipped with 14 heavy toothed harrows.
The advantage of this harrow coupling is its working width (14 m in one pass), which significantly impacts labor productivity and resource savings, thereby reducing the cost of soil treatment.
Technical Specifications of BPG
|
No. |
Specification |
Value |
|||
|
BPG-12 |
BPG-14 |
BPG-18 |
BPG-14 with spring harrows |
||
|
1 |
Tractor power, minimum, hp |
80 |
80 |
120 |
80 |
|
2 |
Productivity during 1 hour of main operation, ha/h |
6–9 |
8–11 |
10–14 |
8–11 |
|
3 |
Working speed during moisture-conserving soil treatment, km/h |
10–12 |
|||
|
4 |
Working speed during post-emergence treatment, km/h |
2–3 |
|||
|
5 |
Working capture width, m |
12 |
14 |
18 |
14 |
|
6 |
Working depth, cm |
5–8 |
2–8 |
||
|
7 |
Weight, kg |
1440 |
1680 |
2150 |
1800 |
|
|
Overall dimensions in working position, m |
|
|||
|
- Length |
7.9 |
8.7 |
10.8 |
8.7 |
|
|
- Width |
12.3 |
14.0 |
18.3 |
14.6 |
|
|
- Height |
0.55 |
0.7 |
|||
|
|
Overall dimensions in transport position, m |
|
|||
|
- Length |
6.6 |
7.4 |
9.5 |
7.5 |
|
|
- Width |
3.6 |
3.4 |
|||
|
- Height |
1.85 |
2.0 |
|||
|
10 |
Transport speed, maximum, km/h |
20 |
|||
|
11 |
Number of working sections, pcs. |
12 |
14 |
18 |
7 |
