Hydraulic harrow БПГП-14
Learn moreMore about "Hydraulic harrow БПГП-14"
| Parameter | Value |
|---|---|
| Тип | Причіпна |
| Потужність трактору, не менше, к.с. | 80 |
| Глибина обробітку, см | 2-8 |
| Продуктивність, га/год | 14-16,8 |
| Робоча швидкість, не більше, км/год | 12 |
Harrow BPG-14 (spring) is a universal soil implement.
Spring harrows have found very wide application in Ukraine, as they address many agronomic tasks with enormous productivity while consuming minimal amounts of fuel and lubricants.

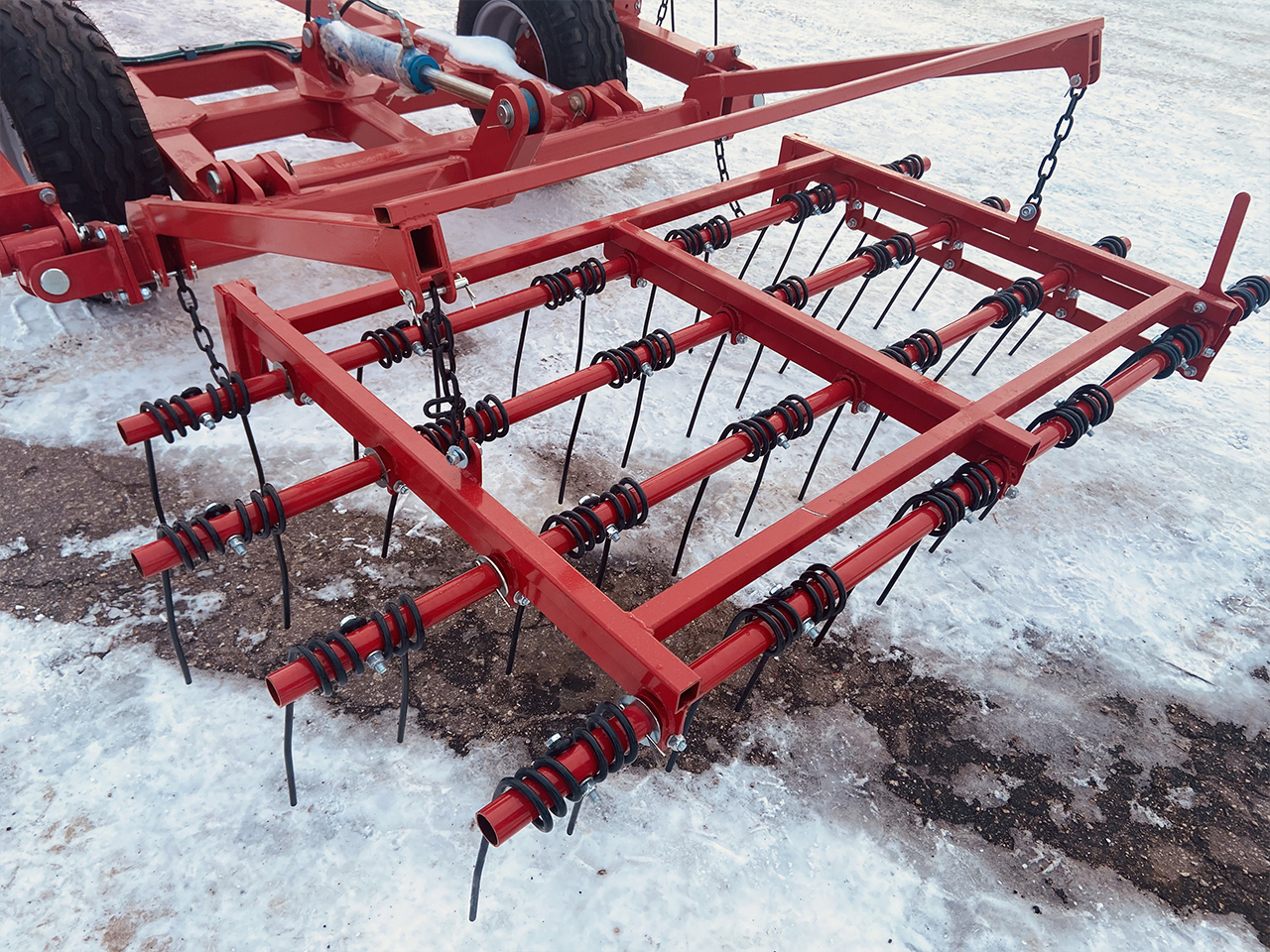

The working element of the harrow is a cone-twisting spring with two ends (?10 mm) that impact the soil.
This element exhibits characteristic behavior under load – it oscillates left and right at working speeds over 12 km/h and ensures practically continuous coverage with a working depth of 2–8 cm.
Smooth adjustment of the tine attack angle allows the spring harrow to be configured for any operating conditions, making it a universal and highly popular implement.
The spring harrow is used for:
- Even distribution of post-harvest residues across the field;
- Spring harrowing to break up the surface crust;
- Elimination of weeds during the white thread stage (weeding);
- Retaining moisture by interrupting the capillary flow from the lower soil layers;
- Leveling the soil surface after primary tillage;
- Covering seed and fertilizers;
- Continuous soil cultivation during crop care and preparation for sowing;
- Collecting straw and hay into windrows;
- Pre-sowing and post-sowing harrowing.
- It is especially noteworthy that 7 sections of the harrow, equipped with 144 springs, ensure uniform treatment across the entire width of the implement regardless of the field’s relief.
- The weight of the harrow is 1900 kg.
- State subsidy of 25% on all equipment
Technical Specifications of BPG
No.
Specification
Value
BPG-12
BPG-14
BPG-18
BPG-14 with spring harrows
1
Tractor power, minimum, hp
80
80
120
80
2
Productivity during 1 hour of main operation, ha/h
6–9
8–11
10–14
8–11
3
Working speed during moisture-conserving soil treatment, km/h
10–12
4
Working speed during post-emergence treatment, km/h
2–3
5
Working capture width, m
12
14
18
14
6
Working depth, cm
5–8
2–8
7
Weight, kg
1440
1680
2150
1800
8Overall dimensions in working position, m
- Length
7.9
8.7
10.8
8.7
- Width
12.3
14.0
18.3
14.6
- Height
0.55
0.7
9Overall dimensions in transport position, m
- Length
6.6
7.4
9.5
7.5
- Width
3.6
3.4
- Height
1.85
2.0
10
Transport speed, not more than, km/h
20
11
Number of working sections, pcs.
12
14
18
7
