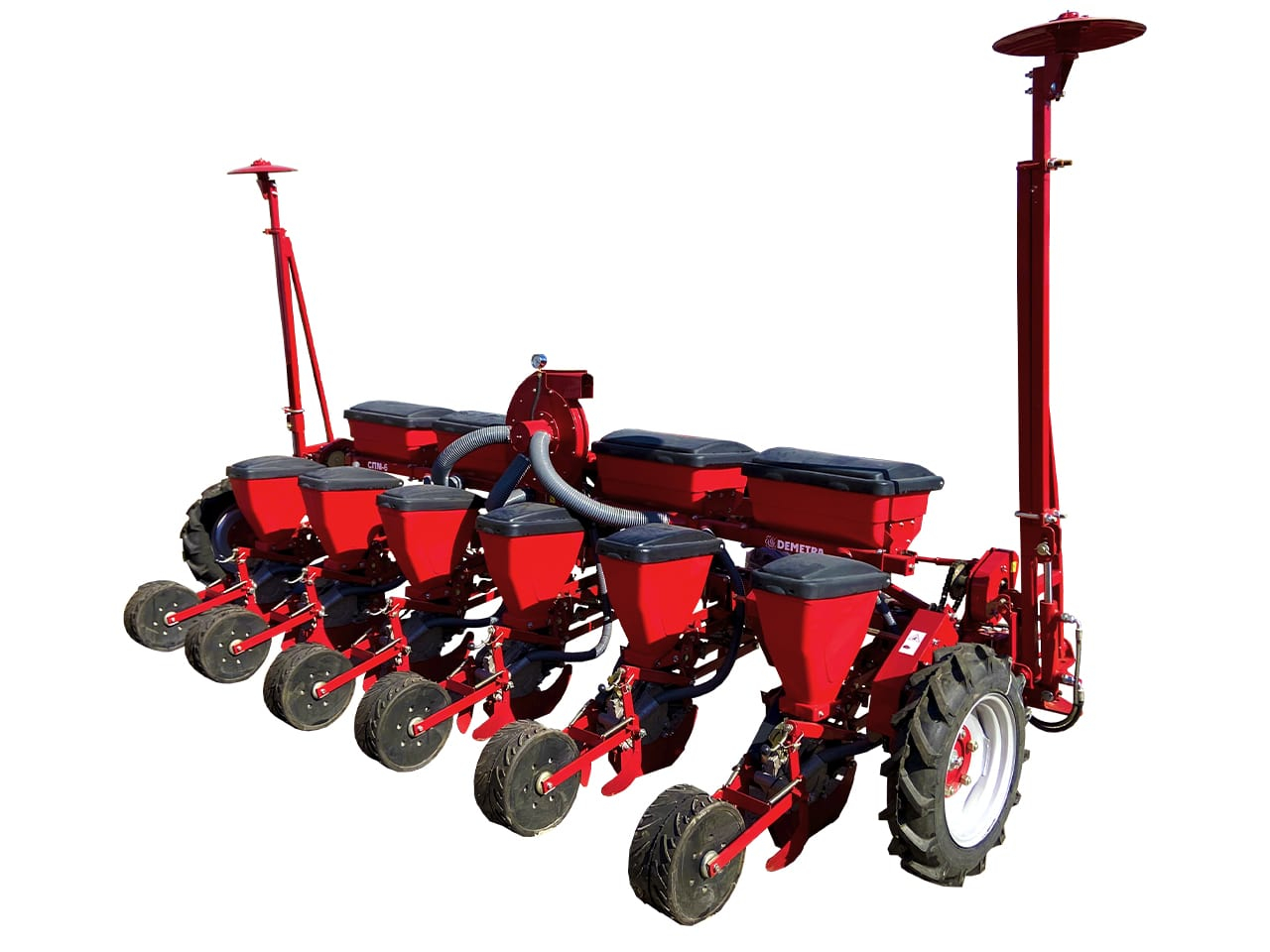

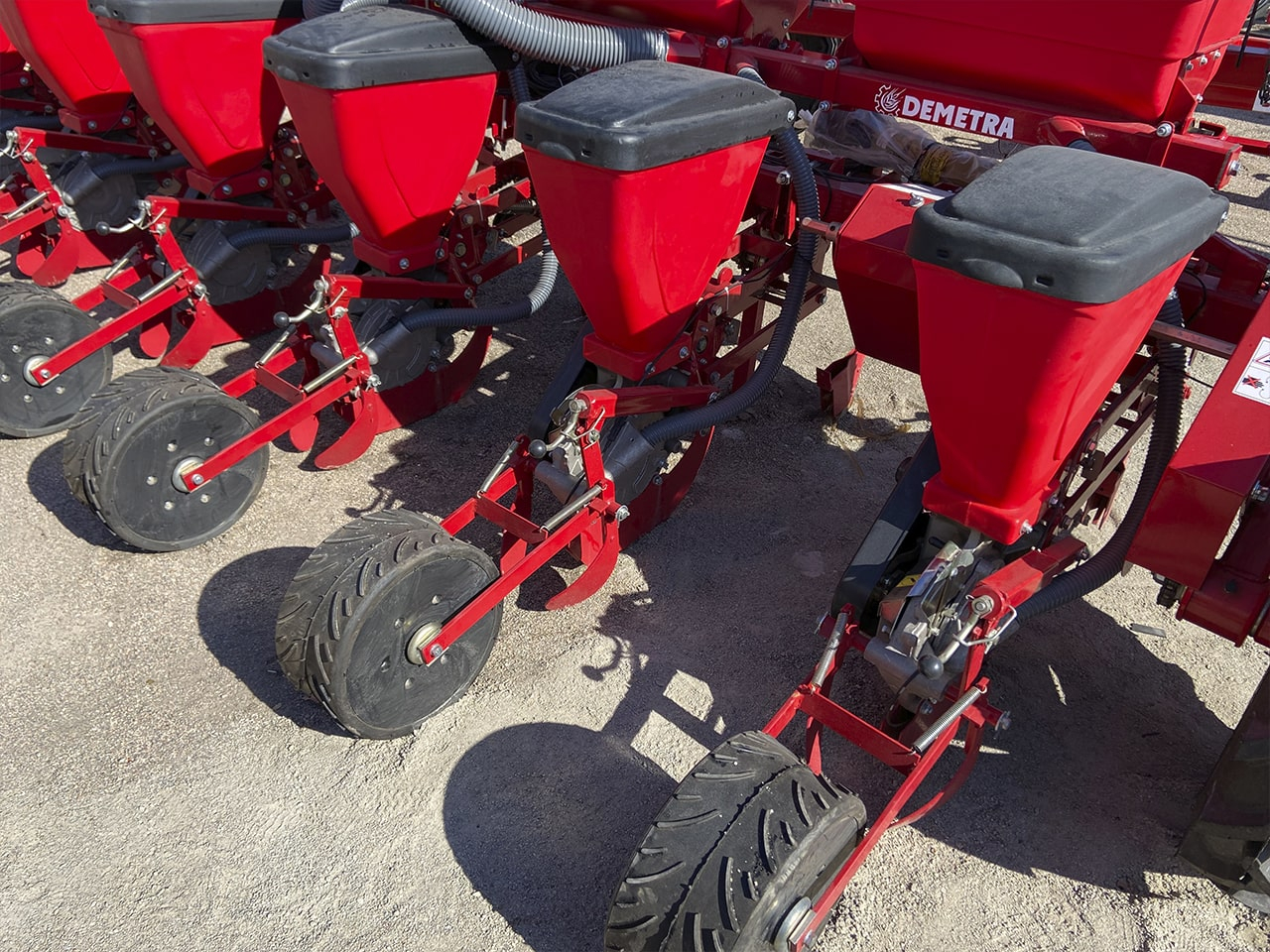

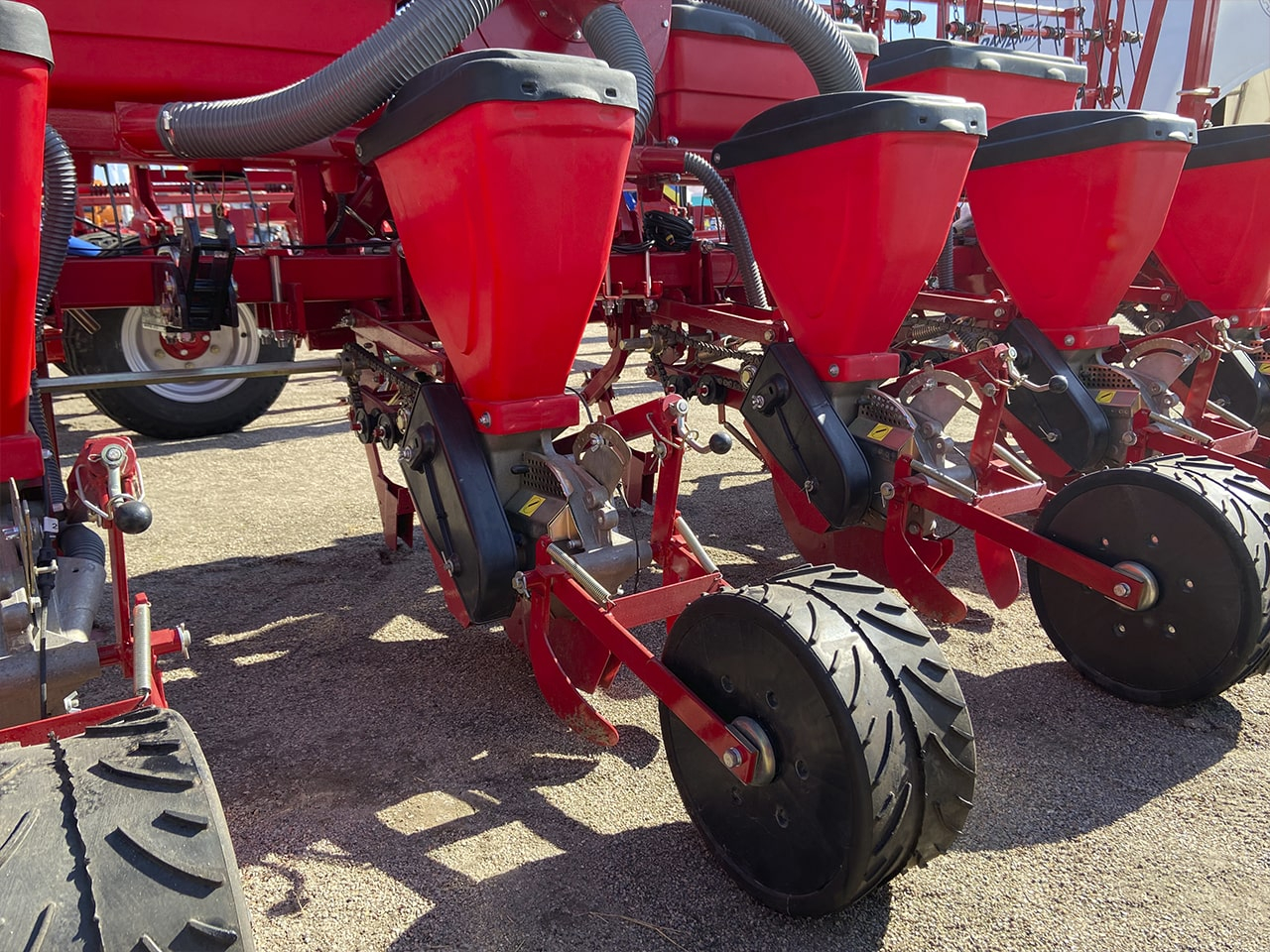

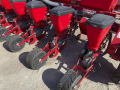

Precision seed drill СПМ-6
Learn moreMore about "Precision seed drill СПМ-6"
| Parameter | Value |
|---|---|
| Ширина захвату | 4,2 |
| Робоча швидкість км/год | 2,5-9 |
| Продуктивність, га/год | 1,2-4,0 |
| Ширина міжрядь,мм | 700 |
| Глибина посіву, см | 2-12 |
Mounted Cultivator KPN-5.6 with a liquid mineral fertilizer application system
designed for inter?row cultivation of corn, sunflower, castor bean, and other row crops sown with row spacings of 600, 700, or 900 mm, featuring complete weed cutting, high?quality soil loosening, and simultaneous application of liquid mineral fertilizers.
The parallelogram suspension of the working organ sections ensures replication of the soil relief, while the atmospheric pressure tires and the rubber rollers of the cultivator provide self?cleaning from caked dirt. An option for continuous cultivation using single?sided flat?cutting tines is provided.
Advantages of our cultivator:
- High-quality polymer hopper, resistant to ultraviolet radiation and mechanical impacts
- Reinforced section with a 16 mm thick bar
- All section units mounted on bearings
- Steel-cast holders for the working organs
- Atmospheric (soft) tire
- Transport mechanism
- Powder coating
- Anti-corrosion galvanic coating on selected parts
Technical specifications:
|
Parameter Name |
Parameter Value |
||
|
KPN-4.2 |
KPN-5.6 |
KPN-8.4 |
|
|
1 General Specifications |
|||
|
1.1 Cultivator Type |
mounted |
||
|
1.2 Tractor power class, hp, not less than |
65 |
80 |
100 |
|
2 Application Requirements |
|||
|
2.1 Productivity, ha/h |
4.6 |
6 |
7.5 |
|
2.2 Working capture width, m |
4.2 |
5.6 |
8.4 |
|
2.3 Cutting tines capture width, mm |
270-330 |
||
|
2.4 Working depth, cm |
5-16 |
||
|
2.5 Weed combing depth, cm, not more than |
5-16 |
||
|
2.6 Weed cutting and combing, % |
100 |
||
|
2.7 Transport speed, km/h, not more than |
15 |
||
|
2.8 Working speed, km/h, not more than |
10 |
||
|
3 Design Indicators |
|||
|
3.1 Total (design) weight, kg, not more than |
750 |
950 |
1800 |
|
3.2 Overall dimensions in working state, mm: - length - width - height |
4850 2100 1700 |
6500 2100 1700 |
9250 2100 1700 |
|
Parameter Name |
Parameter Value |
|
||
|
KPN-4.2 |
KPN-5.6 |
KPN-8.4 |
|
|
|
3.3 Overall dimensions in transport state, mm: - length - width - height |
2090 5400 2020 |
2090 7200 2020 |
2090 9600 2020 |
|
|
3.4 Ground clearance, mm |
300 |
|||
