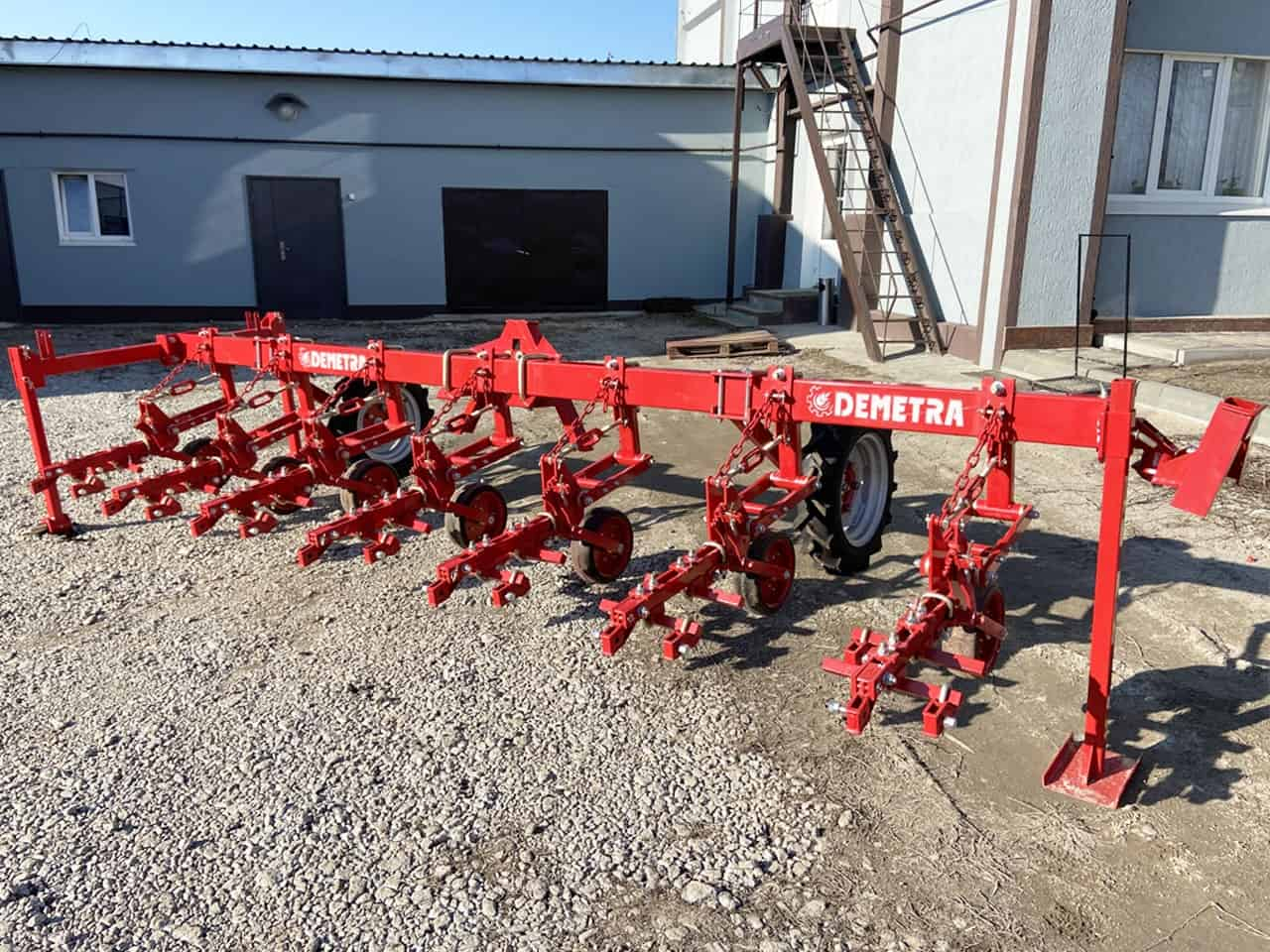

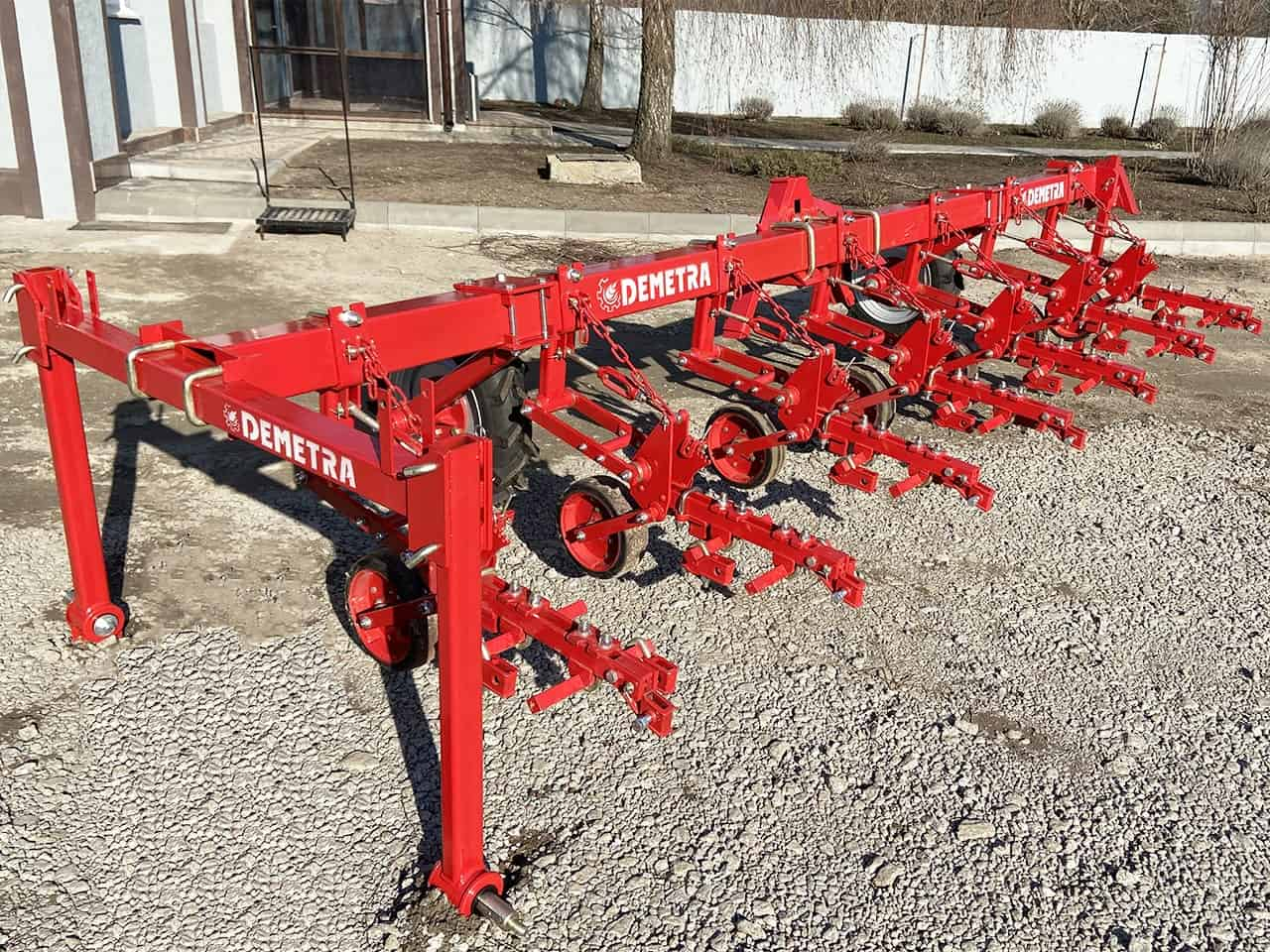

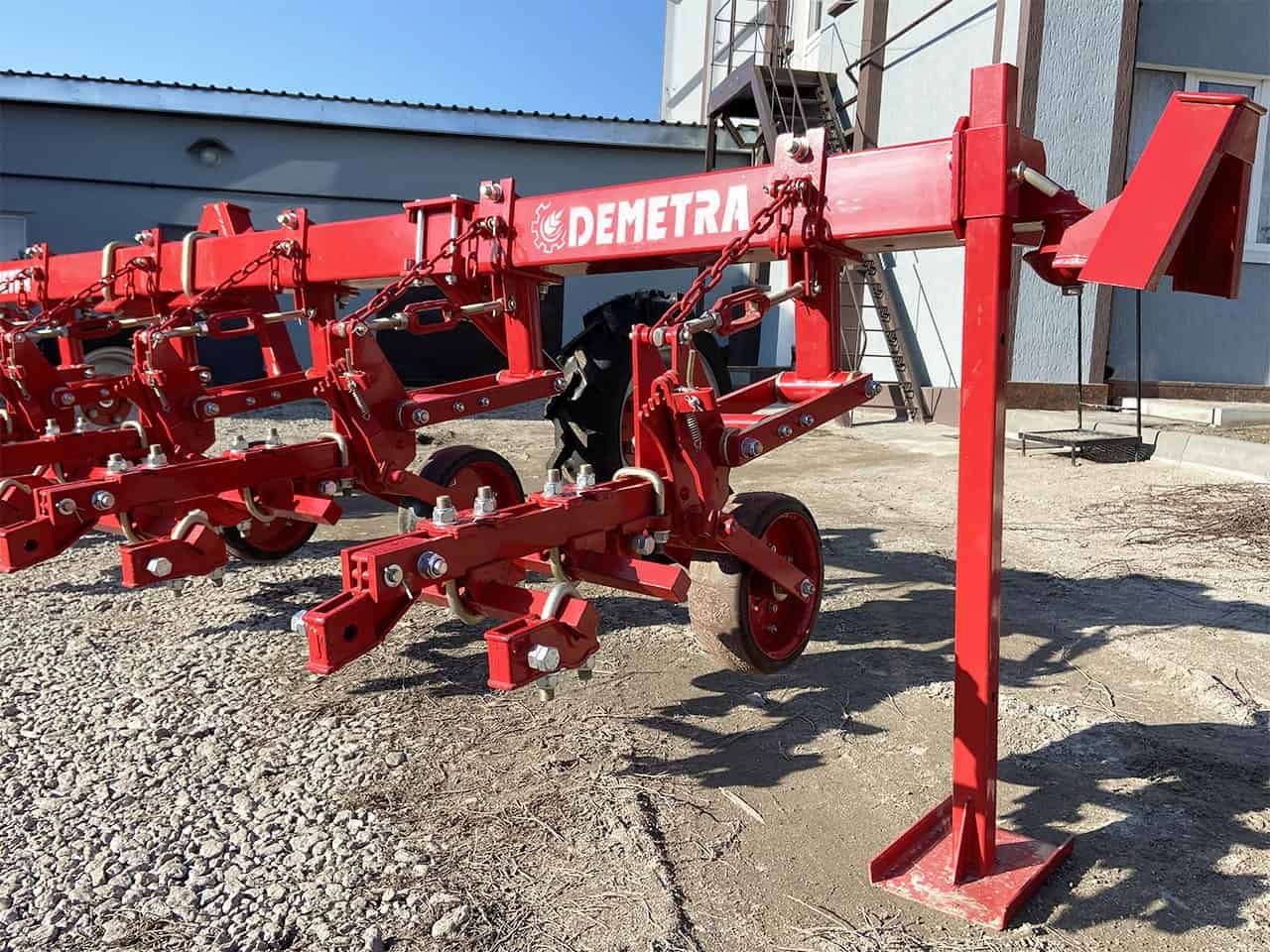

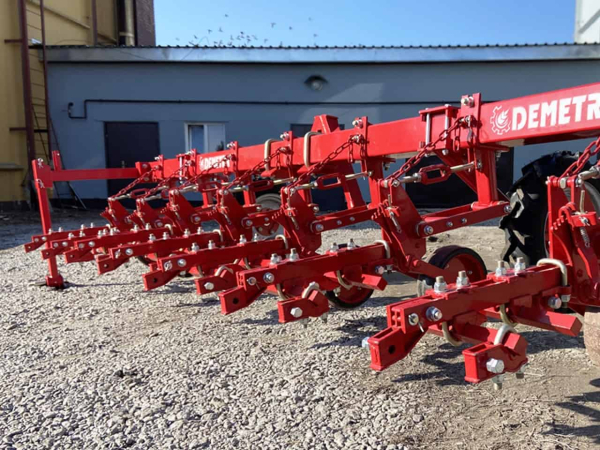

Row cultivator КПН-4,2 (6 row)
Learn moreMore about "Row cultivator КПН-4,2 (6 row)"
Mounted cultivator KPN-4.2 is designed for inter-row cultivation of corn, sunflower, castor, and other row crops, featuring complete weed cutting and high-quality soil loosening with simultaneous application of granular mineral fertilizers (in bags).
The parallelogram suspension of the working tool sections ensures that the soil surface is accurately followed, while atmospheric tires and rubberized rollers provide self-cleaning from adhered dirt. An option is provided for using the cultivator for continuous cultivation with single-sided flat-cutting sweeps.
Advantages of our cultivator:
- Reinforced section with a 16 mm thick bar
- All section components mounted on bearings
- Steel-cast holders for working tools
- Atmospheric (soft) tire
- Transport device
- Powder coating
- Anti-corrosive galvanic coating on selected parts
|
No. z/p |
Parameter Name |
Value |
|
|
KPN-4.2 |
KPN-5.6 |
||
|
1 |
Cultivator productivity per hour of main operation, ha/h |
4.0–4.6 |
5.5–6.0 |
|
2 |
Minimum tractor drawbar power, hp |
65 |
80 |
|
3 |
Working speed, km/h |
3–10
|
|
|
4 |
Weight, kg (excluding additional equipment) |
750 |
950 |
|
5 |
Working width, m |
4.2 |
5.6 |
|
6 |
Cutting sweep width, mm |
330 |
|
|
7 |
Row spacing, mm |
700 / 450 (12-row) |
|
|
8 |
Tillage depth, cm |
5–16 |
|
|
9 |
Overall dimensions in working position, m |
|
|
|
|
– Length |
2.7 |
|
|
|
– Width |
4.9 |
6.3 |
|
|
– Height |
1.4 |
|
|
10 |
Overall dimensions in transport position, m |
|
|
|
|
– Length |
5.0 |
6.4 |
|
|
– Width |
2.7 |
|
|
|
– Height |
1.7 |
|
|
11 |
Maximum transport speed, km |
15 |
|
|
12 |
Road clearance, mm |
300 |
300 |
|
|
|||
