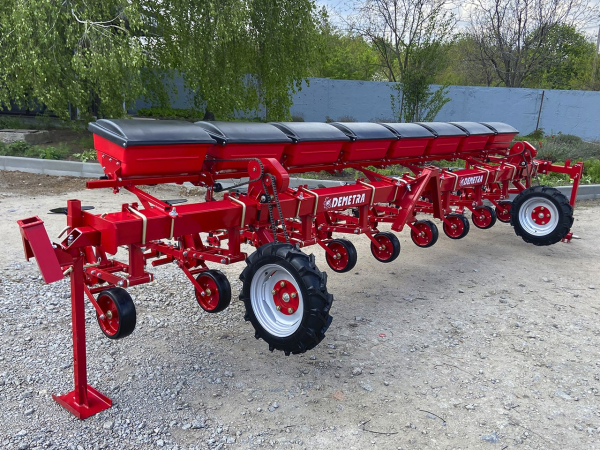

Row cultivator КПН-5,6 with a feeding device (8 row)

Mounted Cultivator KPN-5.6 is designed for inter-row cultivation of corn, sunflower, castor bean, and other row crops sown with 600, 700, or 900 mm row spacing, providing complete weed cutting, high-quality soil loosening, and simultaneous application of granular mineral fertilizers.

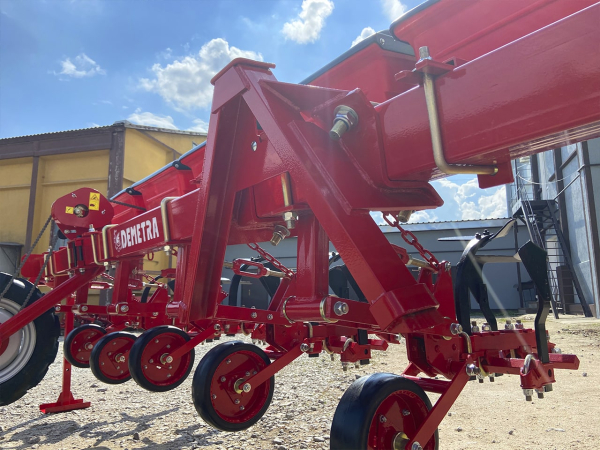

The parallelogram suspension of the working section units ensures that the ground relief is followed, and the low-pressure tires along with the cultivator's rubberized rollers provide self-cleaning from caked dirt. An option is provided for using the cultivator for continuous cultivation with the use of flat-cutting one-sided blades.

Advantages of our cultivator:

• Fertilizing device
• High-quality polymer hoppers, resistant to ultraviolet radiation and mechanical impacts
• Metal screw shaft

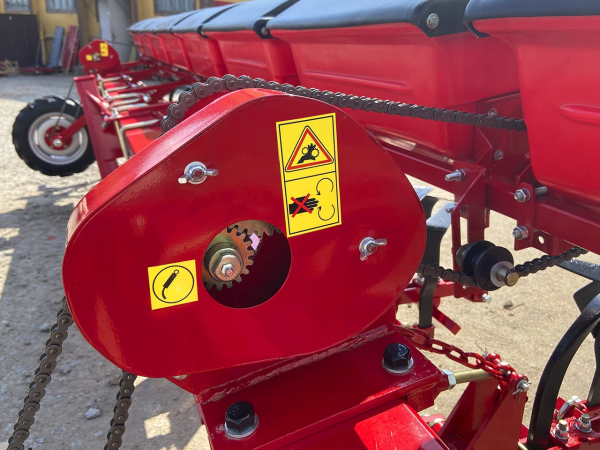

• Steel gears are installed in the gearbox

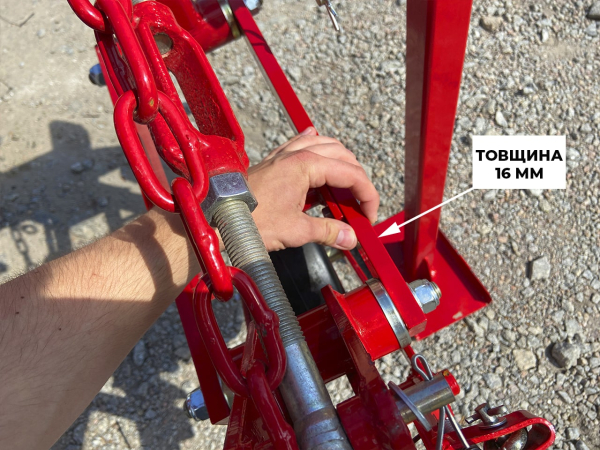

• Reinforced section with a 16 mm thick bar
• All section units run on bearings
• Holders of the working units are made of steel casting

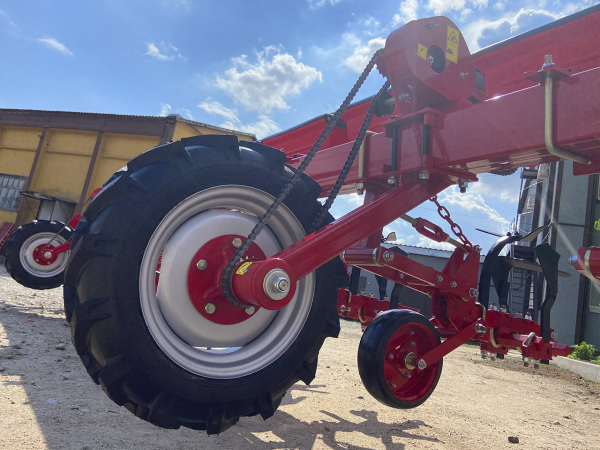

• Low-pressure (soft) tire
• Transport mechanism
• Powder coating
• Anti-corrosion galvanic coating of certain parts



  Technical specifications:



  Parameter name	Parameter value
  	KPN-4.2	KPN-5.6	KPN-8.4
  1 General specifications
  1.1 Cultivator type	mounted
  1.2 Tractor power class, hp, not less than	65	80	100
  2 Application requirements
  2.1 Capacity, ha/h	4.6	6	7.5
  2.2 Working width, m	4.2	5.6	8.4
  2.3 Cutting blade width, mm	270-330
  2.4 Working depth, cm	5-16
  2.5 Weed combing depth, cm, not more than	5-16
  2.6 Weed cutting and combing, %	100
  2.7 Transport speed, km/h, not more than	15
  2.8 Working speed, km/h, not more than	10
  3 Design indicators
  3.1 Total (design) weight, kg, not more than	750	950	1800
  3.2 Overall dimensions in working position, mm: - length -width -height	4850 2100 1700	6500 2100 1700	9250 2100 1700



  Parameter name	Parameter value
  	KPN-4.2	KPN-5.6	KPN-8.4
  3.3 Overall dimensions in transport position, mm: -length -width -height	2090 5400 2020	2090 7200 2020	2090 9600 2020
  3.4 Ground clearance, mm	300
