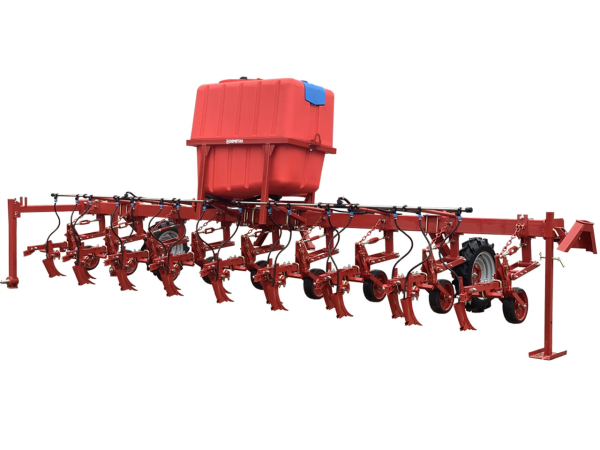

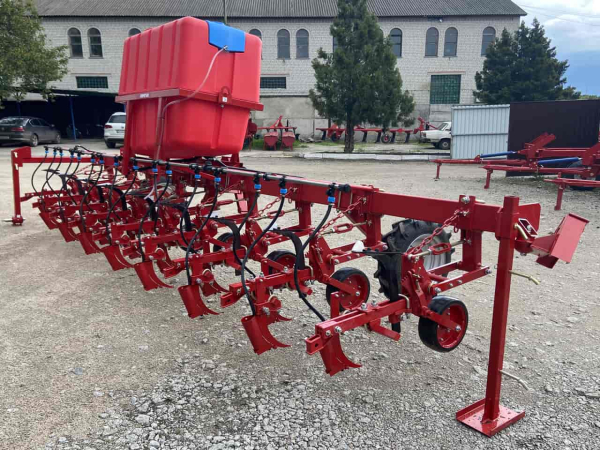

Row cultivator КПН-5,6 with liquid mineral fertilizer application system (8 row)
Learn moreMore about "Row cultivator КПН-5,6 with liquid mineral fertilizer application system (8 row)"

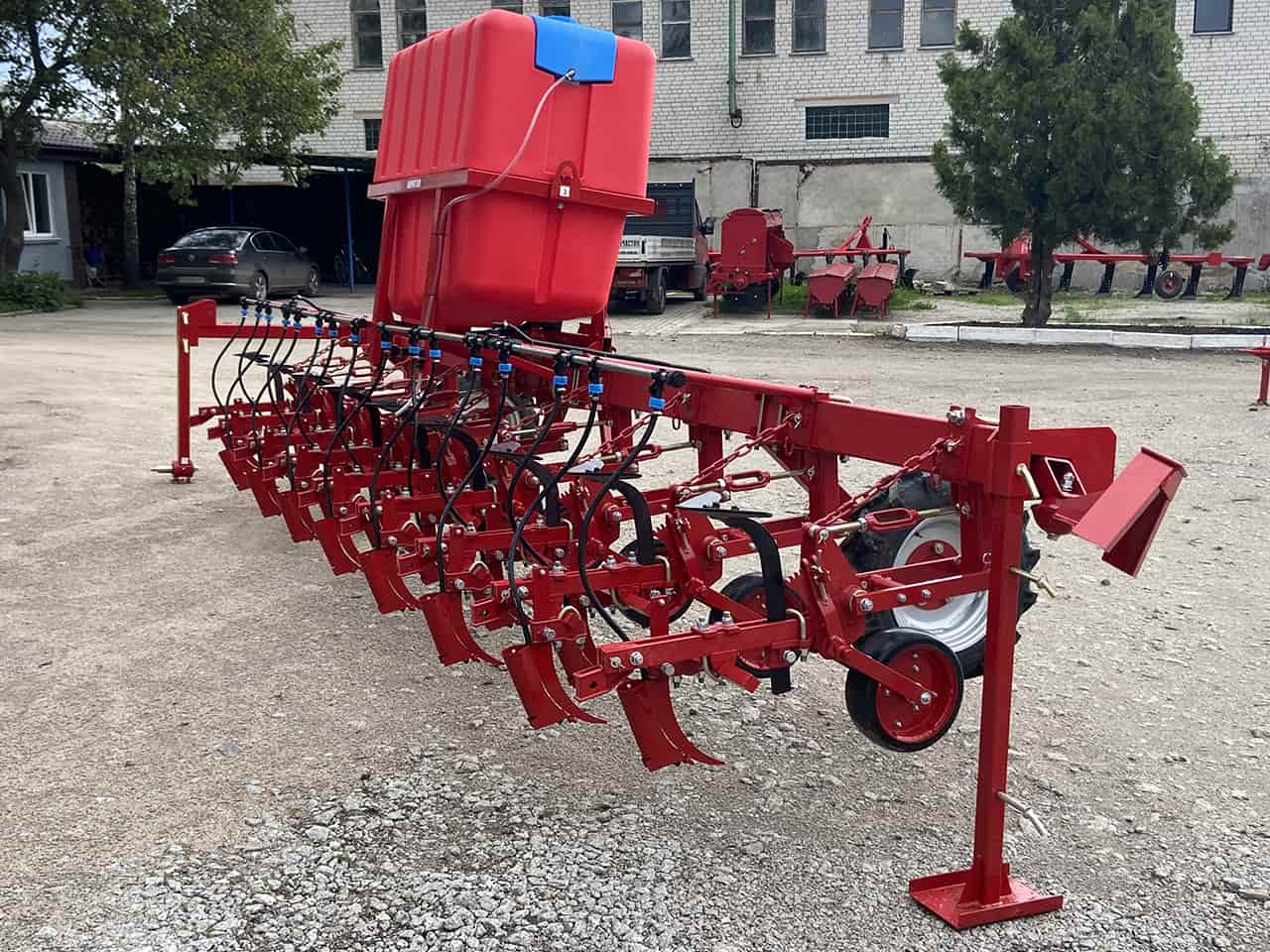

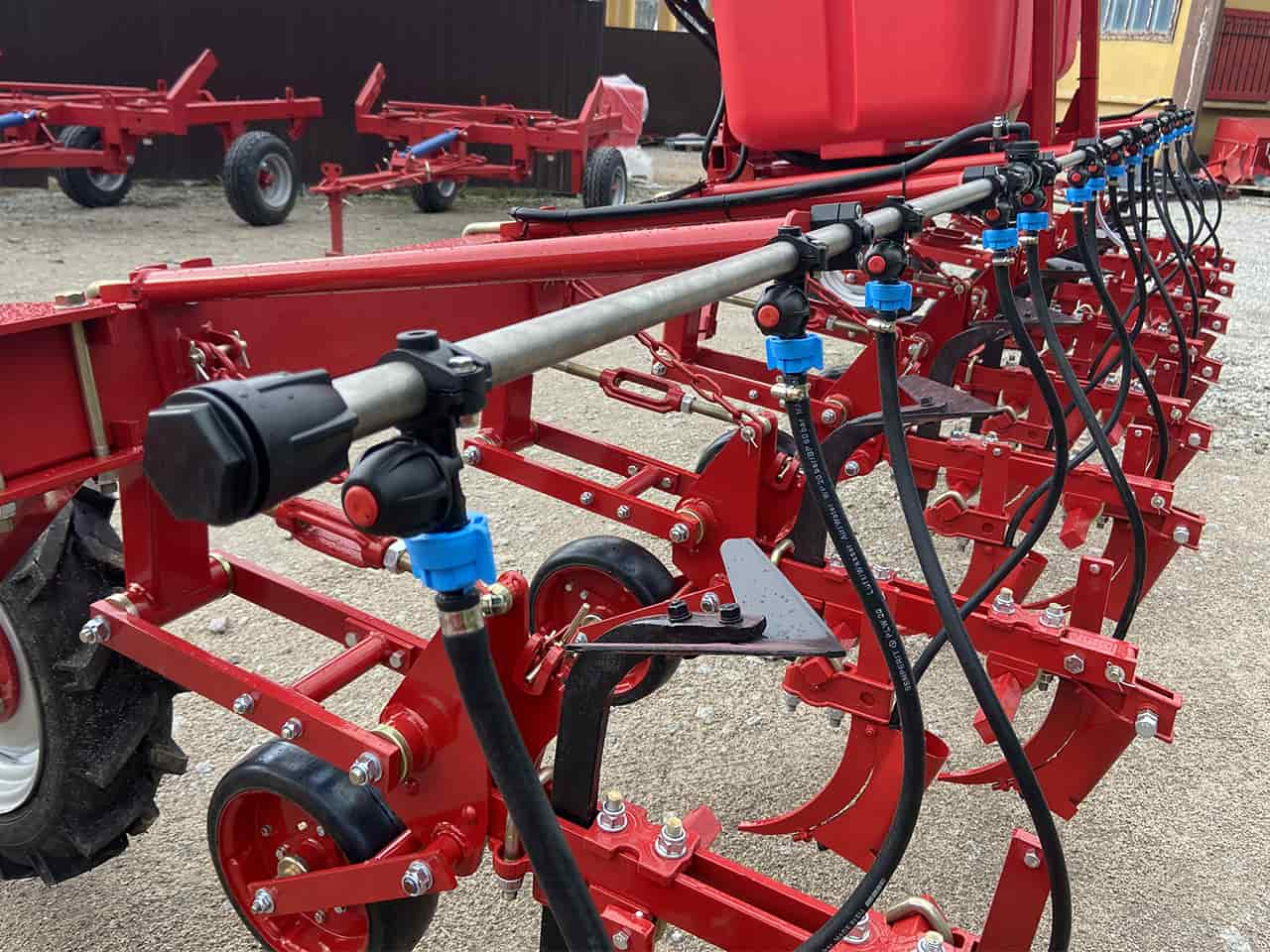

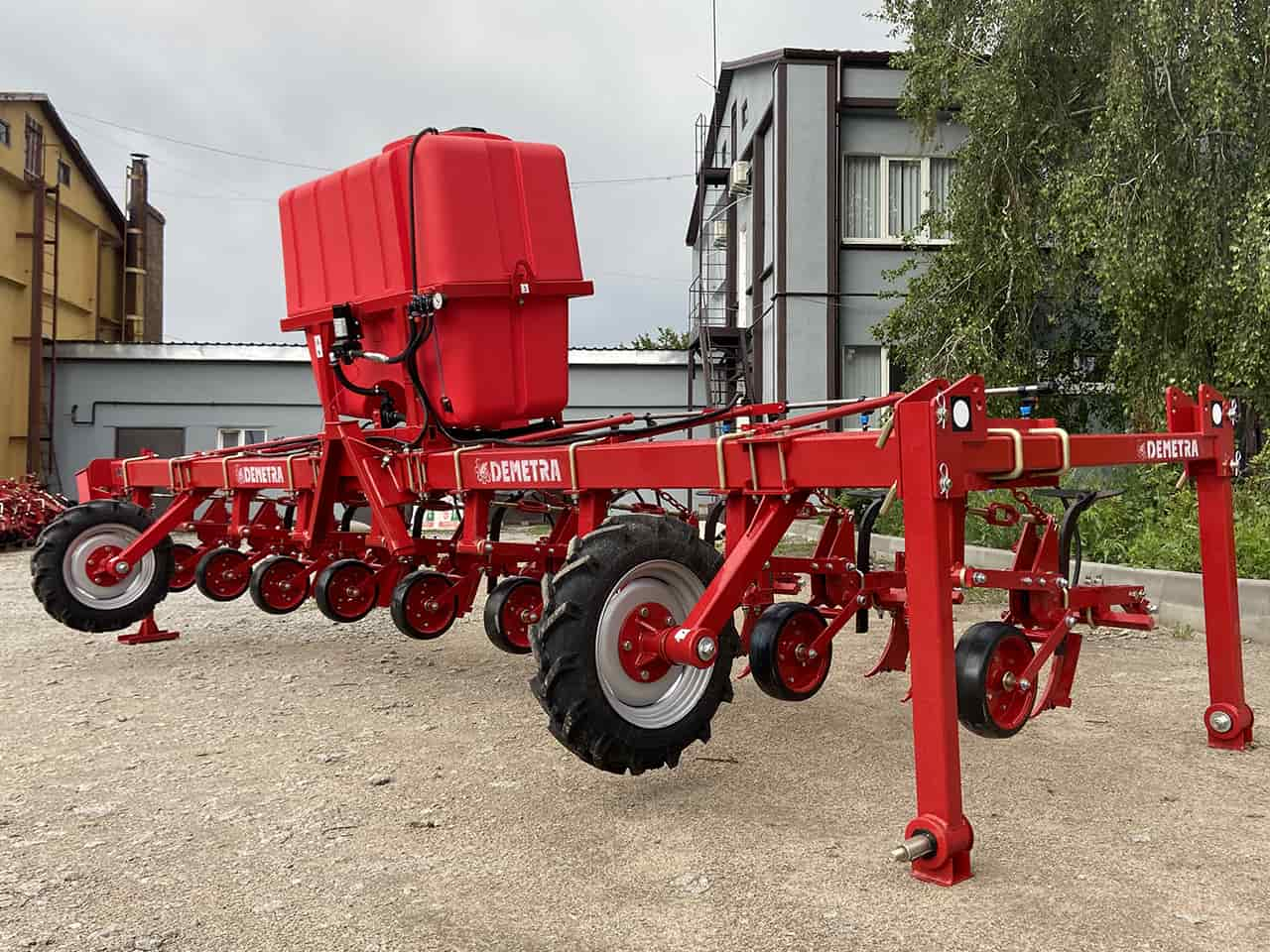

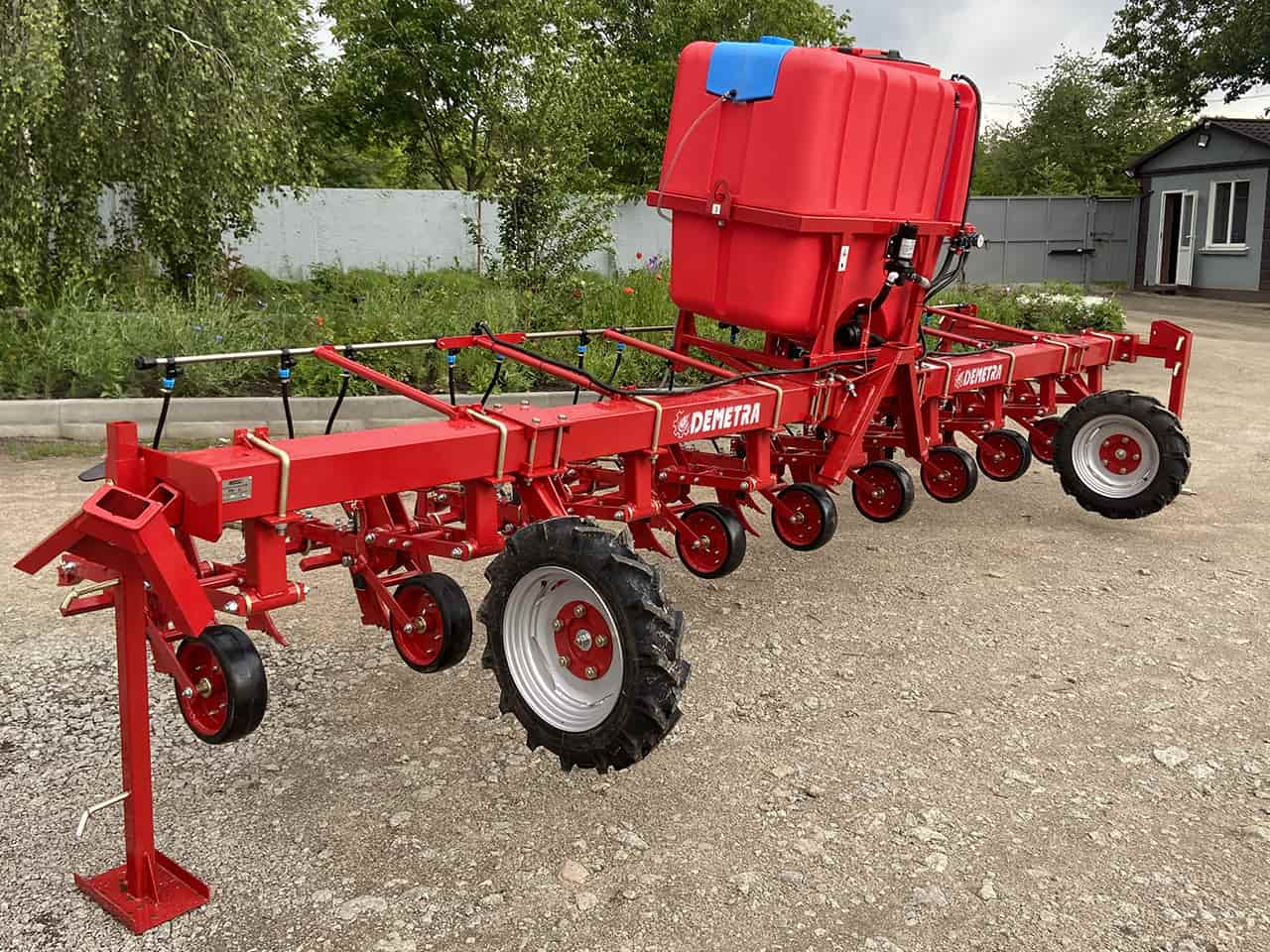

Mounted Cultivator KPN-5.6 with a liquid mineral fertilizer application system
designed for inter?row cultivation of corn, sunflower, castor bean, and other row crops sown with row spacings of 600, 700, or 900 mm, featuring complete weed cutting, high?quality soil loosening, and simultaneous application of liquid mineral fertilizers.

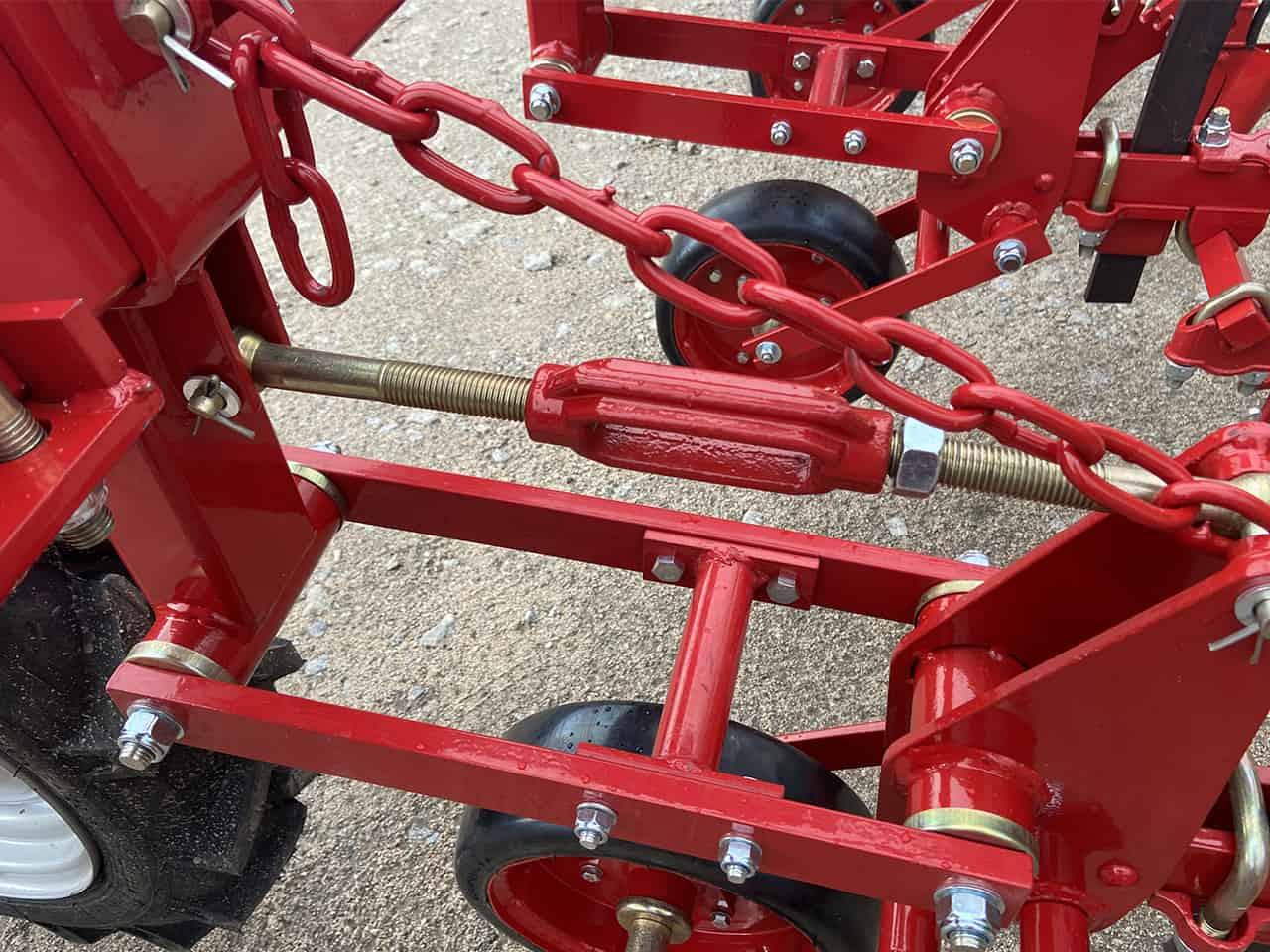

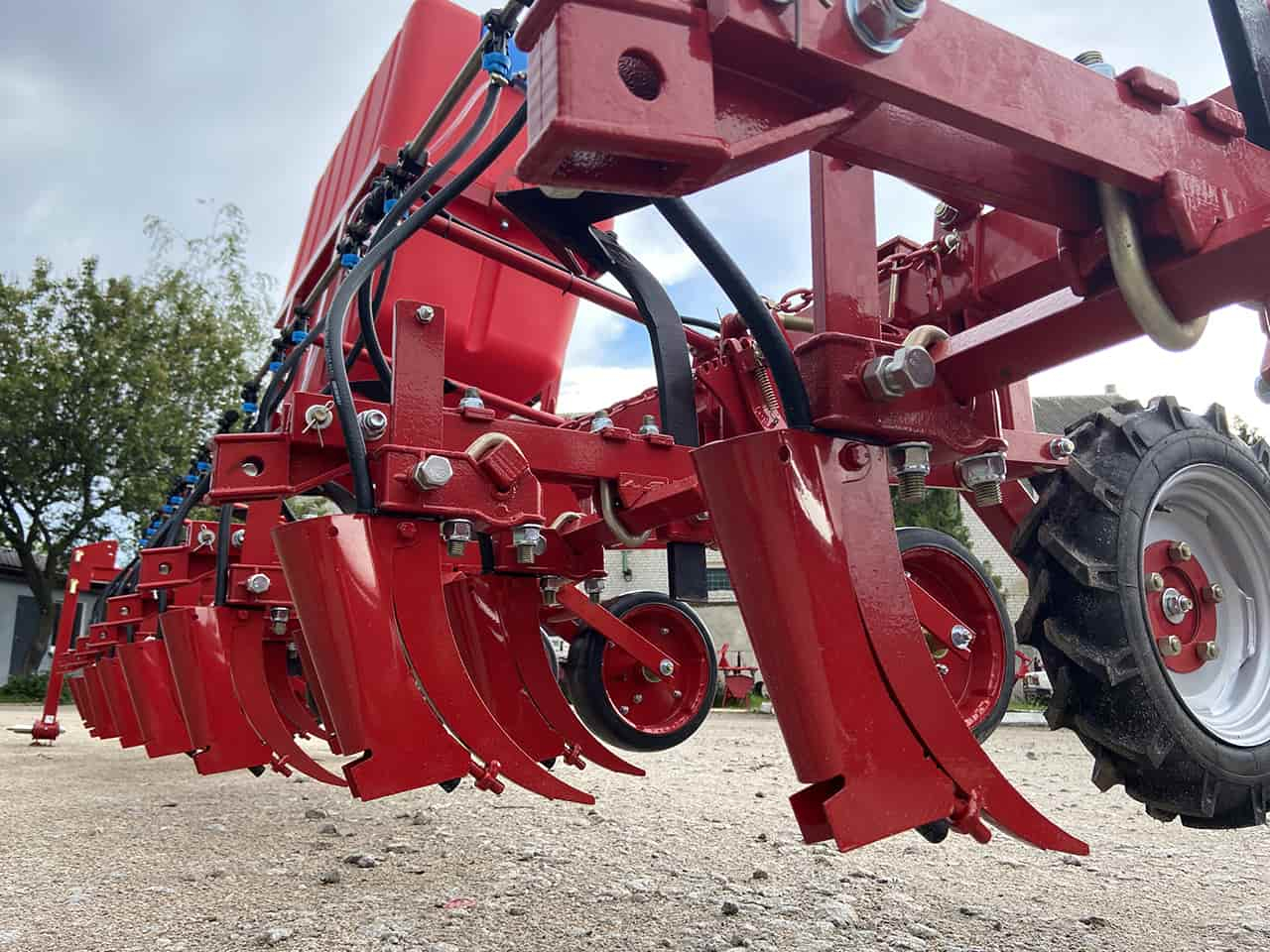

The parallelogram suspension of the working organ sections ensures replication of the soil relief, while the atmospheric pressure tires and the rubber rollers of the cultivator provide self?cleaning from caked dirt. An option for continuous cultivation using single?sided flat?cutting tines is provided.
Advantages of our cultivator:

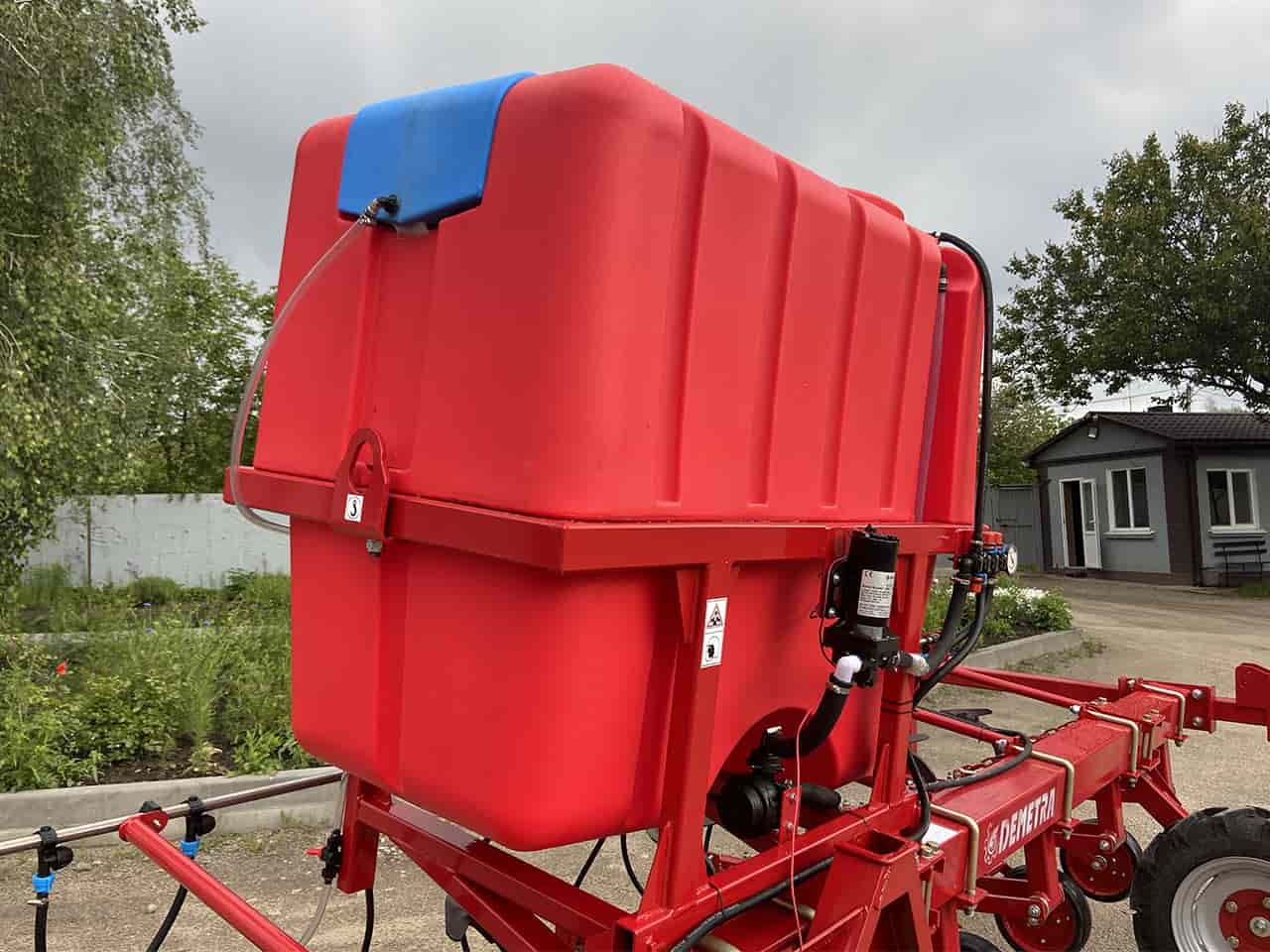

- High-quality polymer hopper, resistant to ultraviolet radiation and mechanical impacts
- Reinforced section with a 16 mm thick bar
- All section units are mounted on bearings

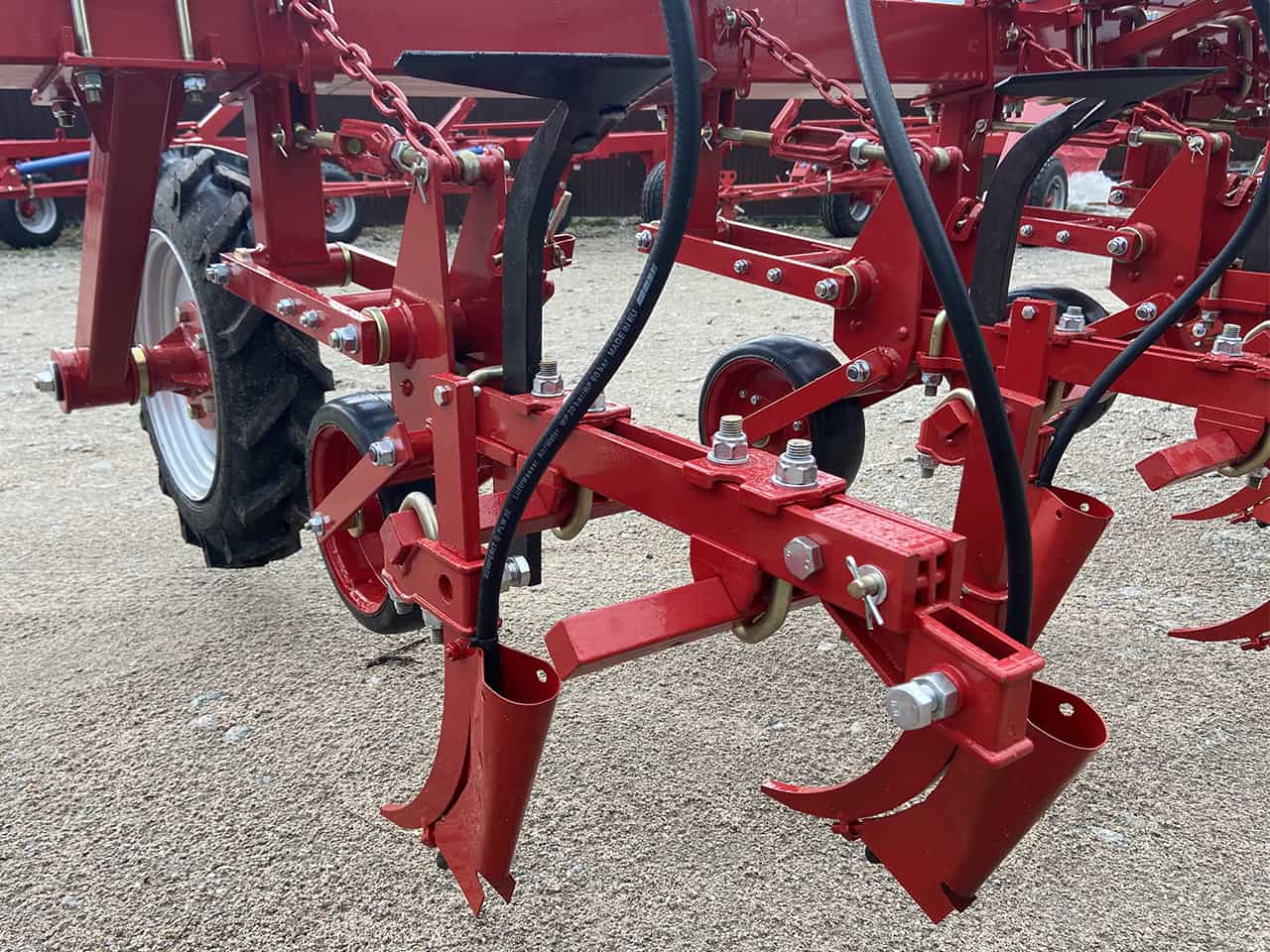

- Steel-cast holders for the working organs

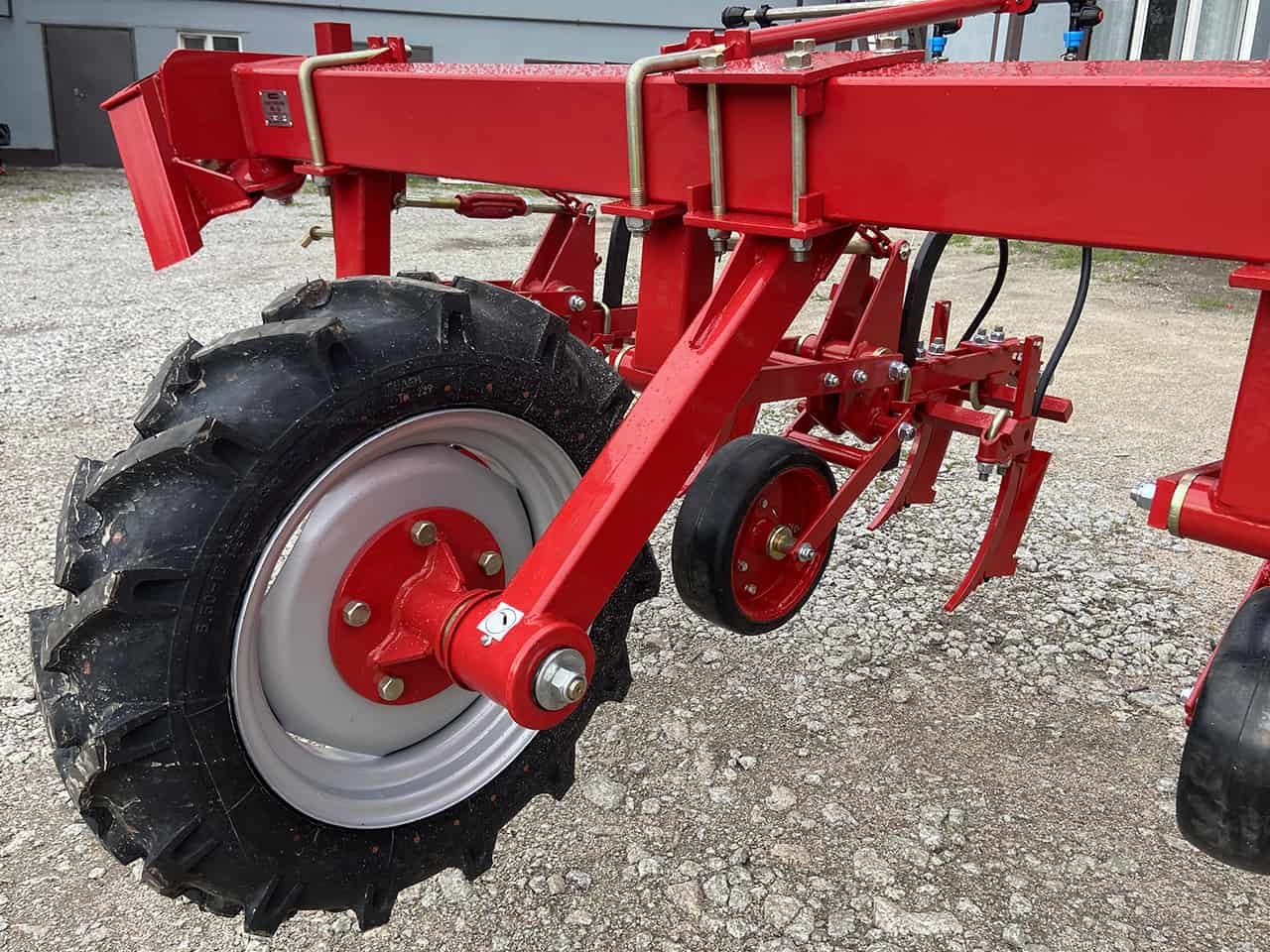

- Atmospheric (soft) tire
- Transport mechanism
- Powder coating
- Anti-corrosion galvanic coating on selected parts
Technical specifications:
Parameter Name
Parameter Value
KPN-4.2
KPN-5.6
KPN-8.4
1 General Specifications
1.1 Cultivator Type
mounted
1.2 Tractor power class, hp, not less than
65
80
100
2 Application Requirements
2.1 Productivity, ha/h
4.6
6
7.5
2.2 Working capture width, m
4.2
5.6
8.4
2.3 Cutting tines capture width, mm
270-330
2.4 Working depth, cm
5-16
2.5 Weed combing depth, cm, not more than
5-16
2.6 Weed cutting and combing, %
100
2.7 Transport speed, km/h, not more than
15
2.8 Working speed, km/h, not more than
10
3 Design Indicators
3.1 Total (design) weight, kg, not more than
750
950
1800
3.2 Overall dimensions in working state, mm:
- length
- width
- height
4850
2100
1700
6500
2100
1700
9250
2100
1700
Parameter Name
Parameter Value
KPN-4.2
KPN-5.6
KPN-8.4
3.3 Overall dimensions in transport state, mm:
- length
- width
- height
2090
5400
2020
2090
7200
2020
2090
9600
2020
3.4 Ground clearance, mm
300
