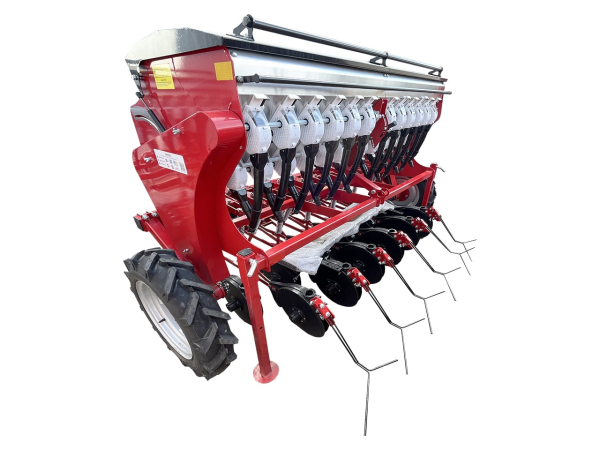

Seed drill "DEMETRA MINI" СЗД 1800V
Learn moreMore about "Seed drill "DEMETRA MINI" СЗД 1800V"
| Parameter | Value |
|---|---|
| Продуктивність | 0,45-1,98 |
| Робоча швидкість км/год | 3-12 |
| Потужність трактору не менше к.с. | 45 |
| Ширина захвату,м | 1,8 |
| Кількість сошників, шт | 12 |
Mini Seeder SZD-1800V (mounted)
A seeder for mini tractors, built to European quality standards, designed for sowing cereals and small-seeded crops with simultaneous application of dry mineral fertilizers.
Equipped with:
- A continuously variable transmission (CVT) mechanism (for ease and precision in setting the seeding rate)

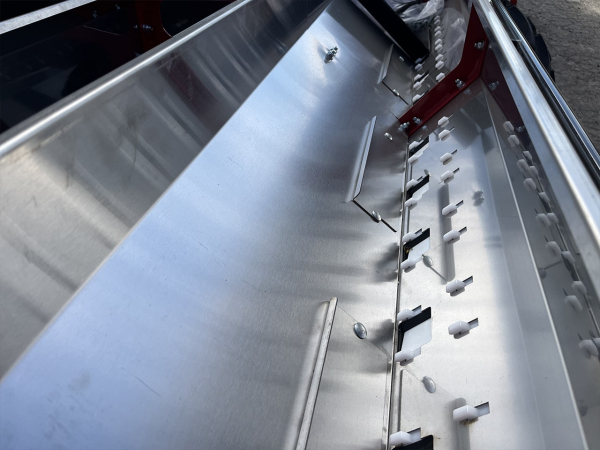

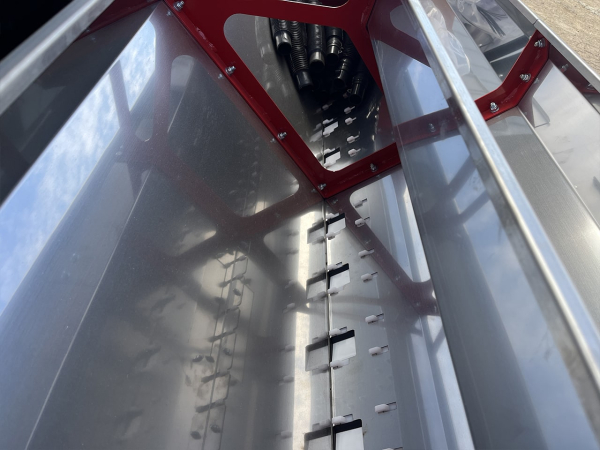

- A hopper rear wall made of stainless steel

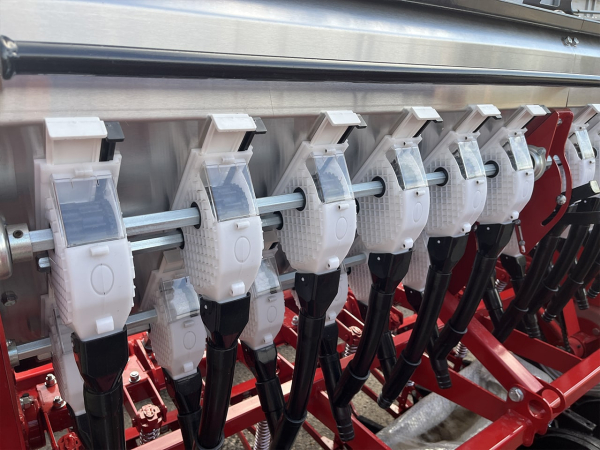

- Polymer seed and fertilizer dispensing devices (additionally equipped with rollers for seeding forage crops)

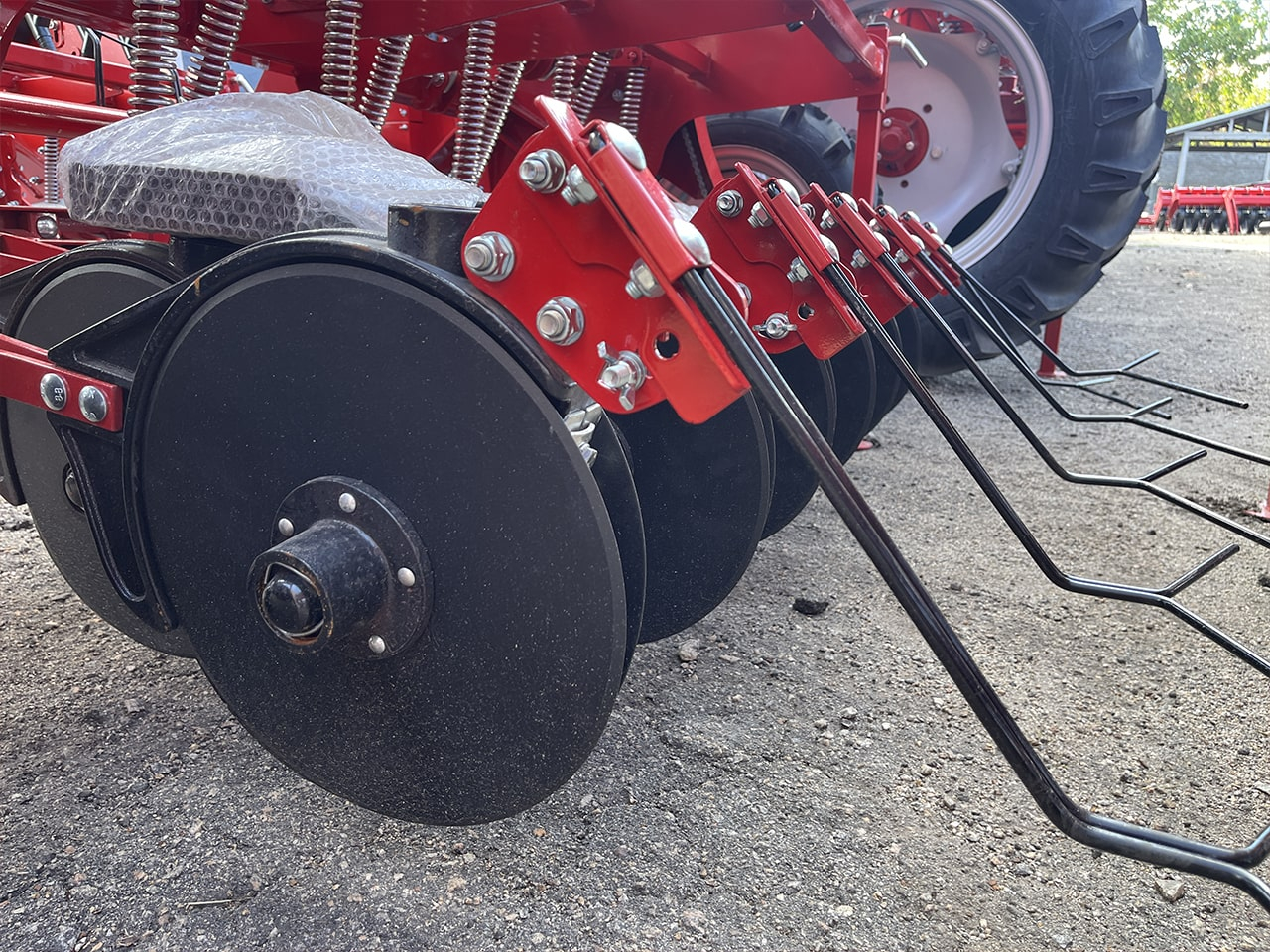

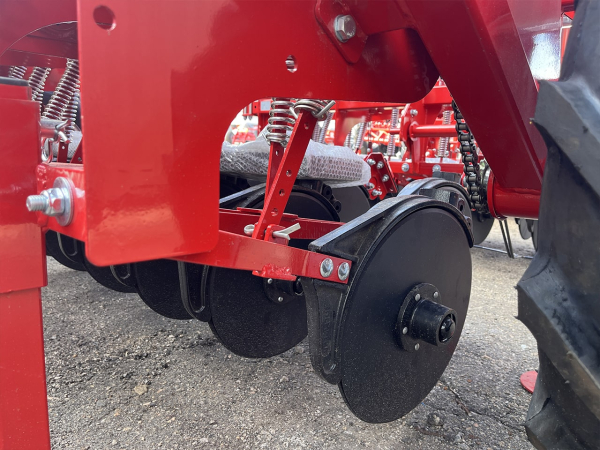

- Openers made of hardened steel (Grade 30MnB5)
- Spring-loaded furrow closers (with the option to install conventional trailed wheels)
When operated on small fields with non-standard dimensions, this seeder significantly reduces seeding time and energy consumption compared to trailed seeders.
It can be mounted with tractors with power from 36 hp.
Technical specifications of SZD mini
|
SZD Model |
1800 |
|
Working width (m) |
1.8 |
|
Number of rows (pcs.)* |
12/24 |
|
Distance between openers (mm)* |
75/150 |
|
Seeding depth (cm) |
0 – 11 |
|
Opener pressure (kg) |
up to 65 |
|
Seeding speed (km/h) |
3 – 12 |
|
Transport speed (km/h) |
20 |
|
Productivity (ha/hour) |
0.45–1.98 |
|
Hopper capacity (m?/kg)** |
0.2 (168) |
|
- with seed |
0.15 (125) |
|
- with fertilizers |
0.05 (43) |
|
Full load covers (ha) |
0.50 |
|
Empty seeder weight (kg) |
568 |
|
Full seeder weight (kg)** |
733 |
|
Dimensions: W x D x H (m) |
2.26 x 1.63 x 1.415 |
|
Technology track (m) |
2.1 |
|
Hitch category |
I |
|
Mini tractor power, not less than (kW/hp) |
22/30 |
* Openers without or with offset / 2-row
** Maximum weight indicated! May vary depending on the density of the seeding material
