Sowing complex "Patriot"
Learn moreMore about "Sowing complex "Patriot""

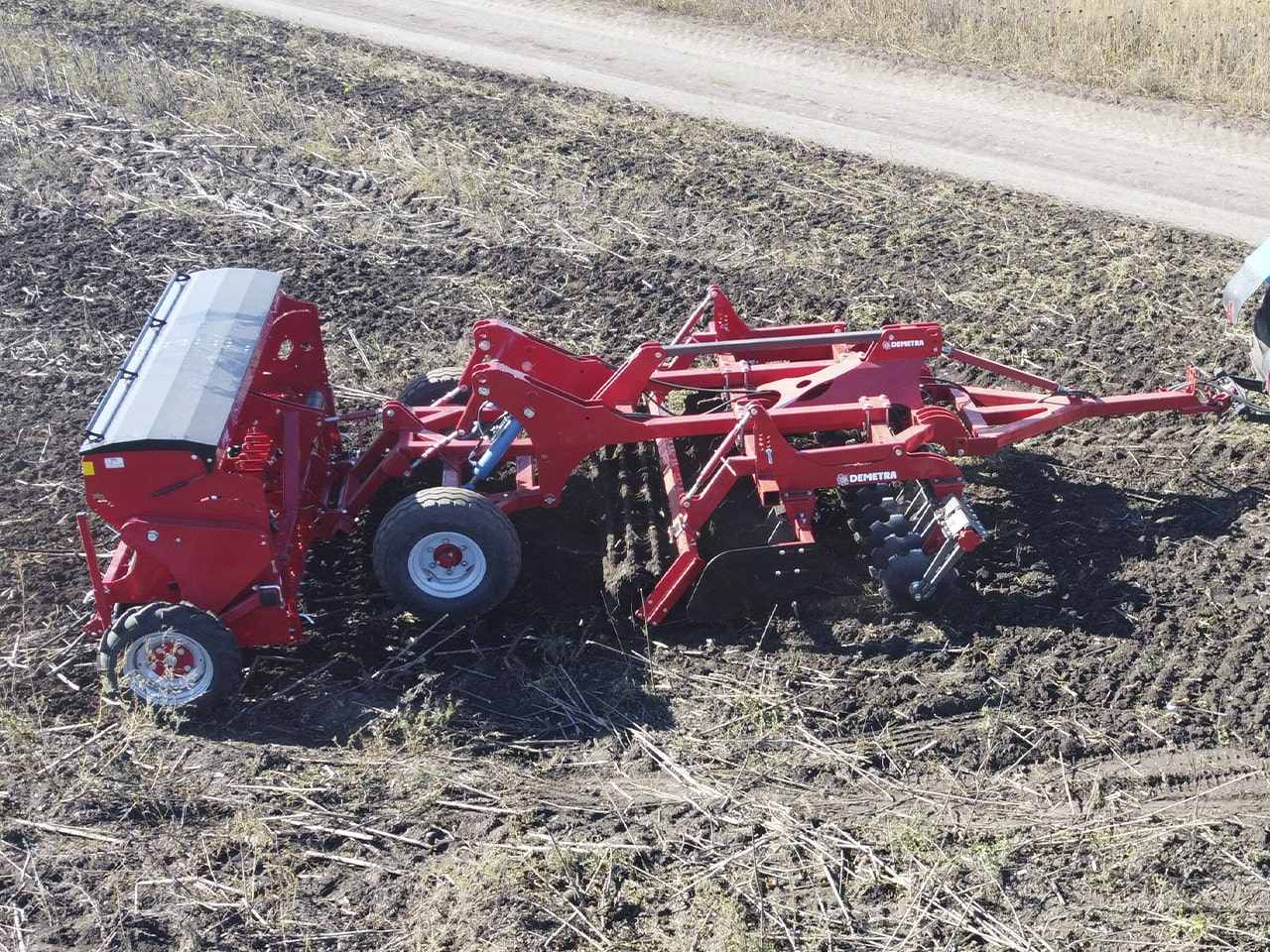

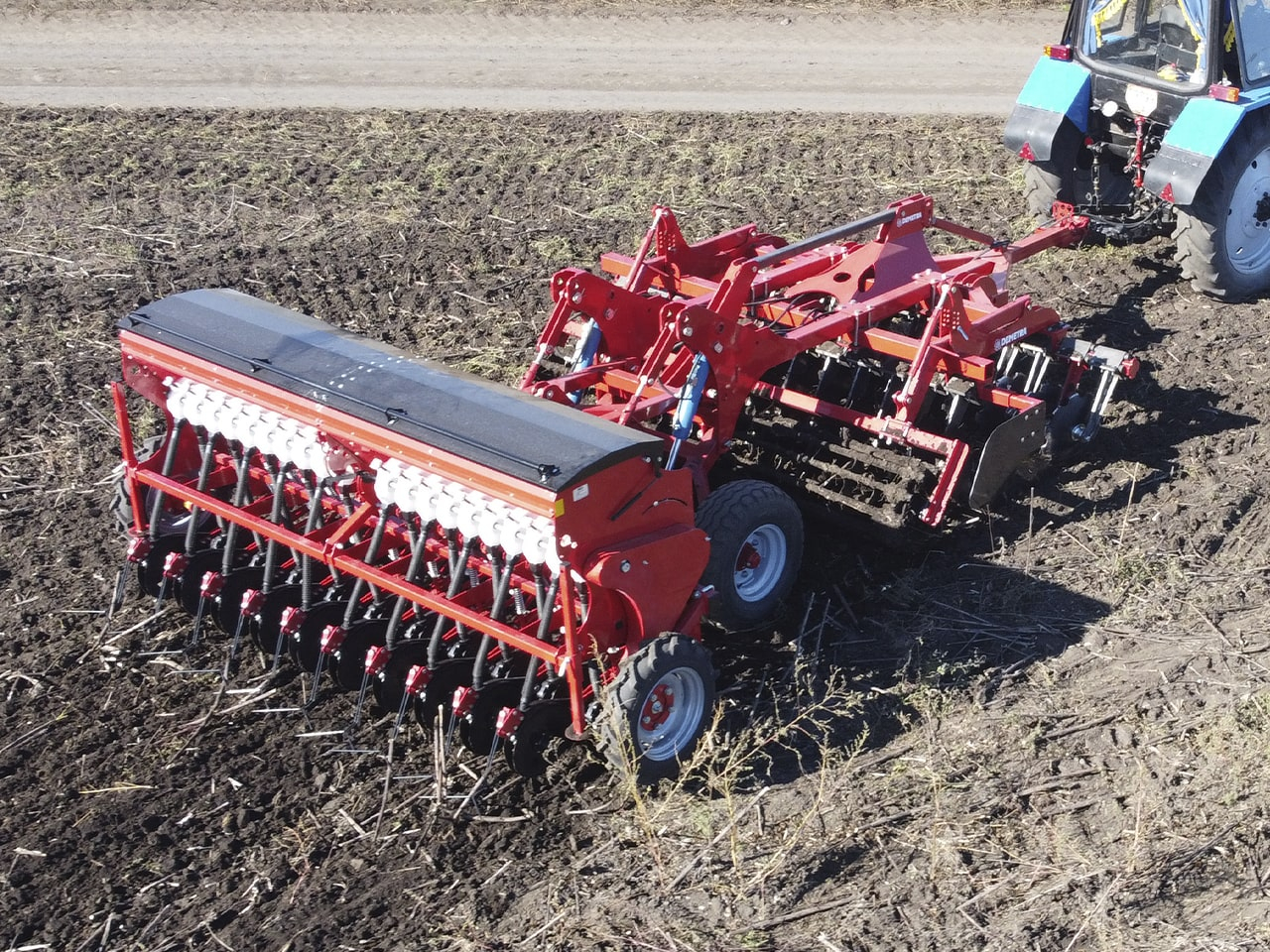

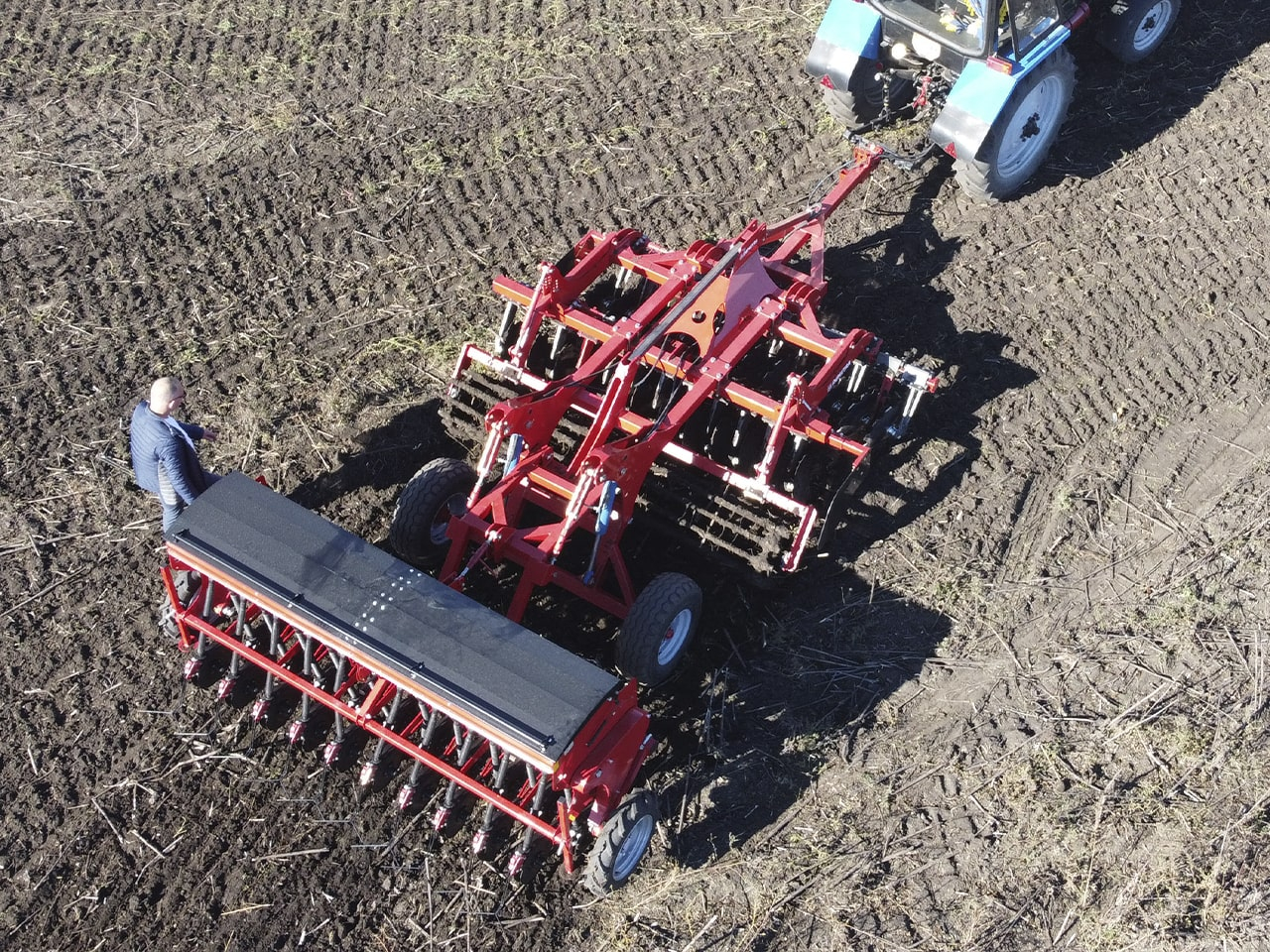

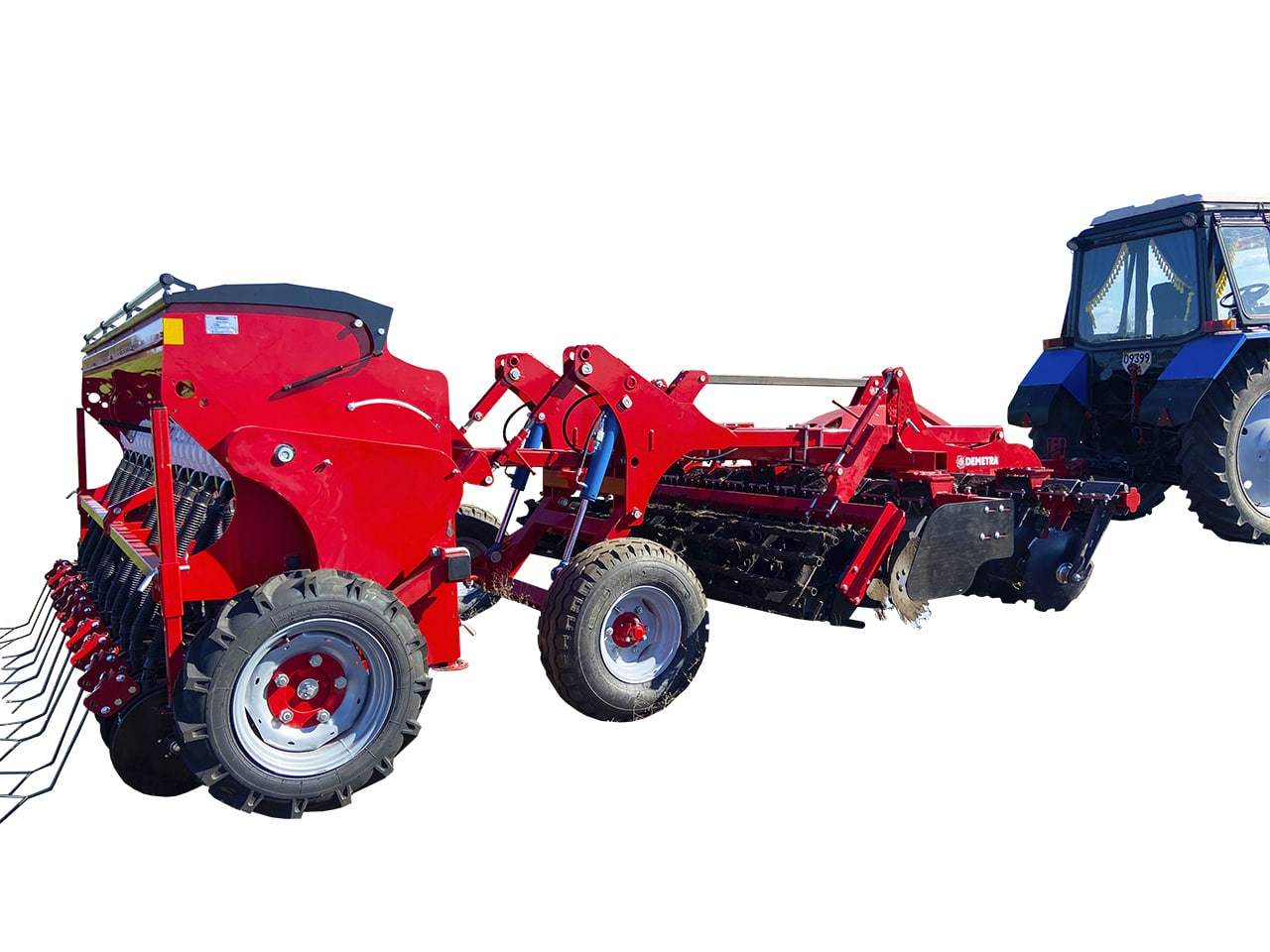

Seeding complex "Patriot" – Disc Cultivator LDD-3000 + Mounted Seeder SZD-3000V

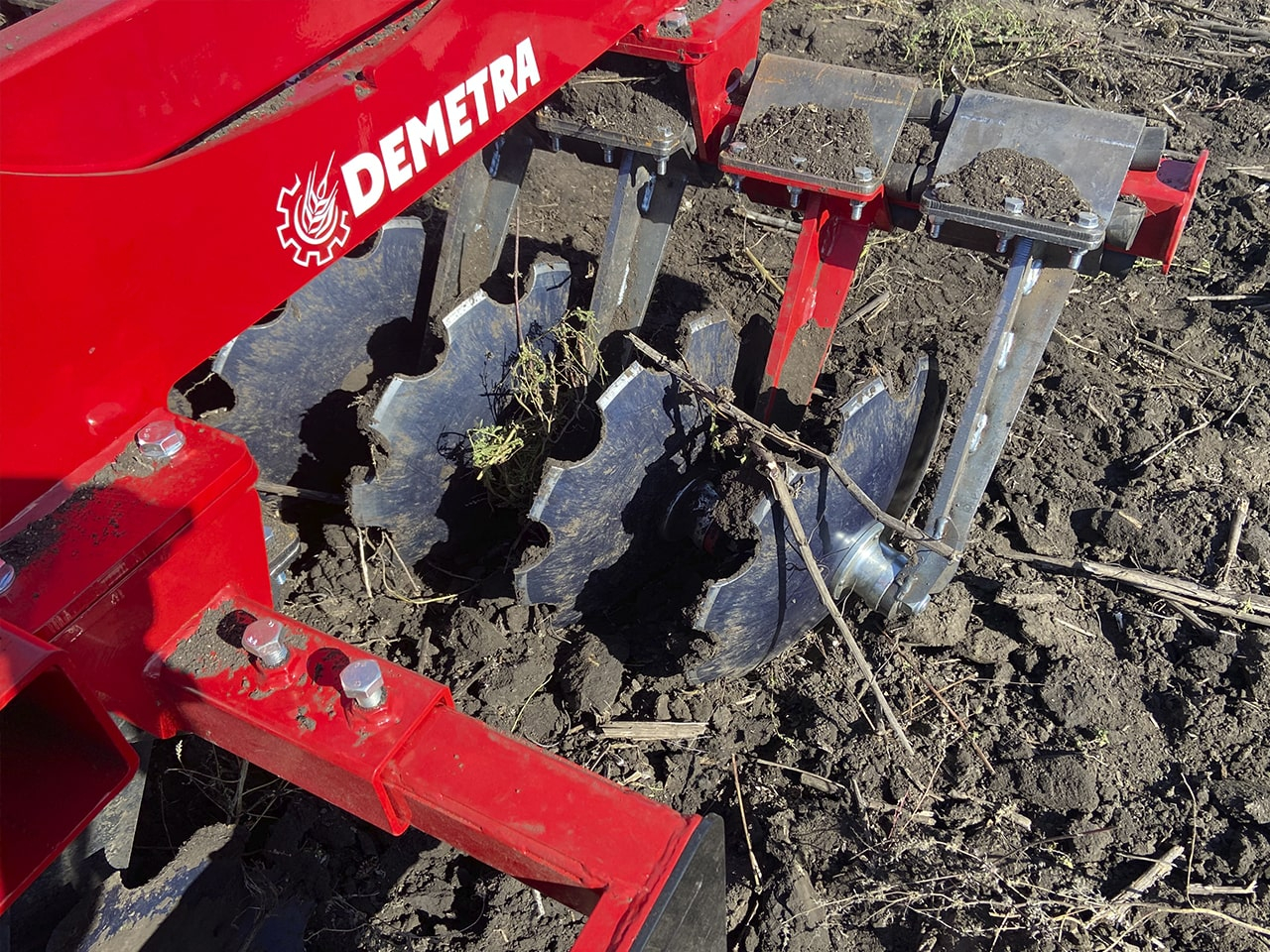

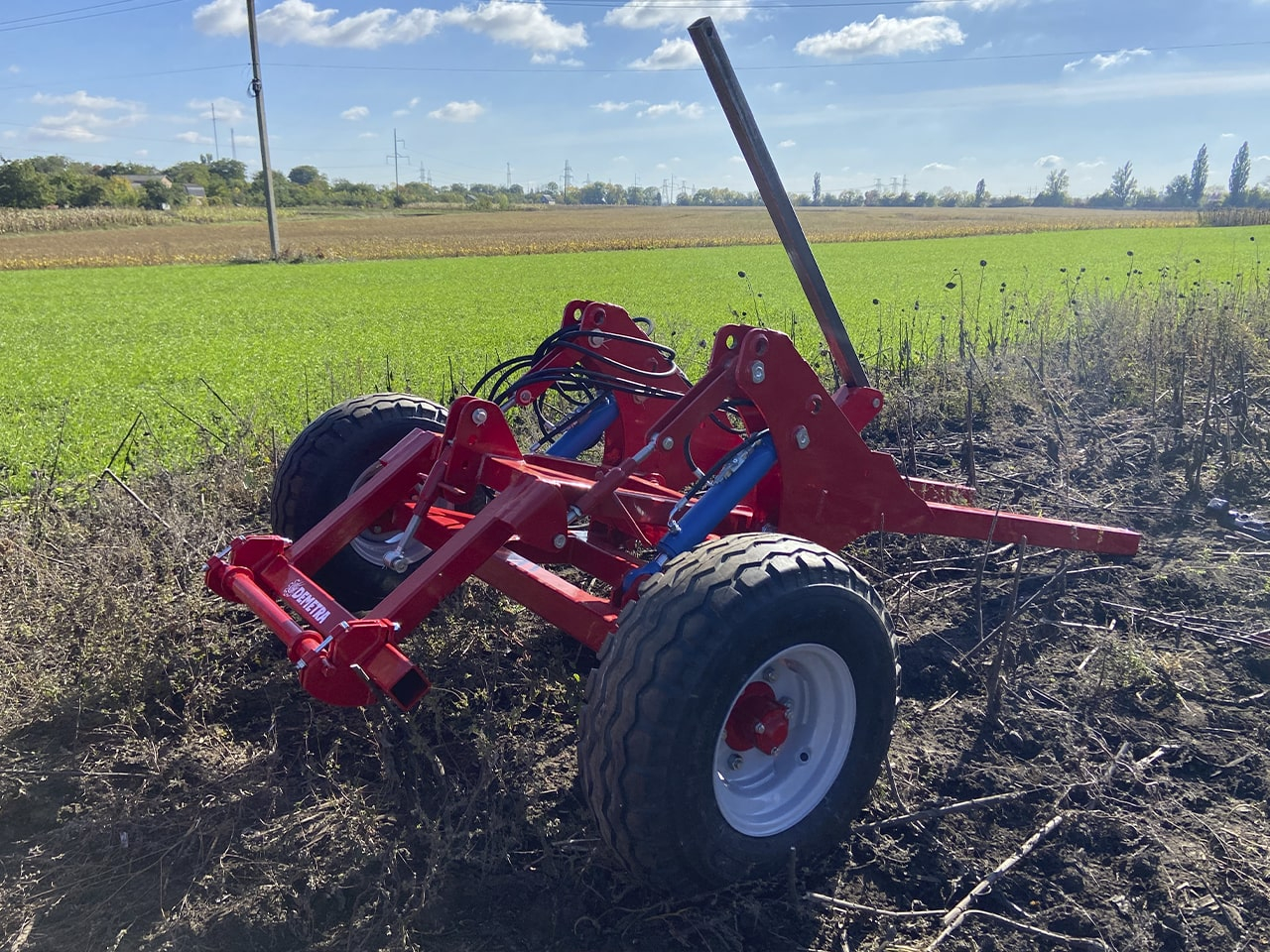

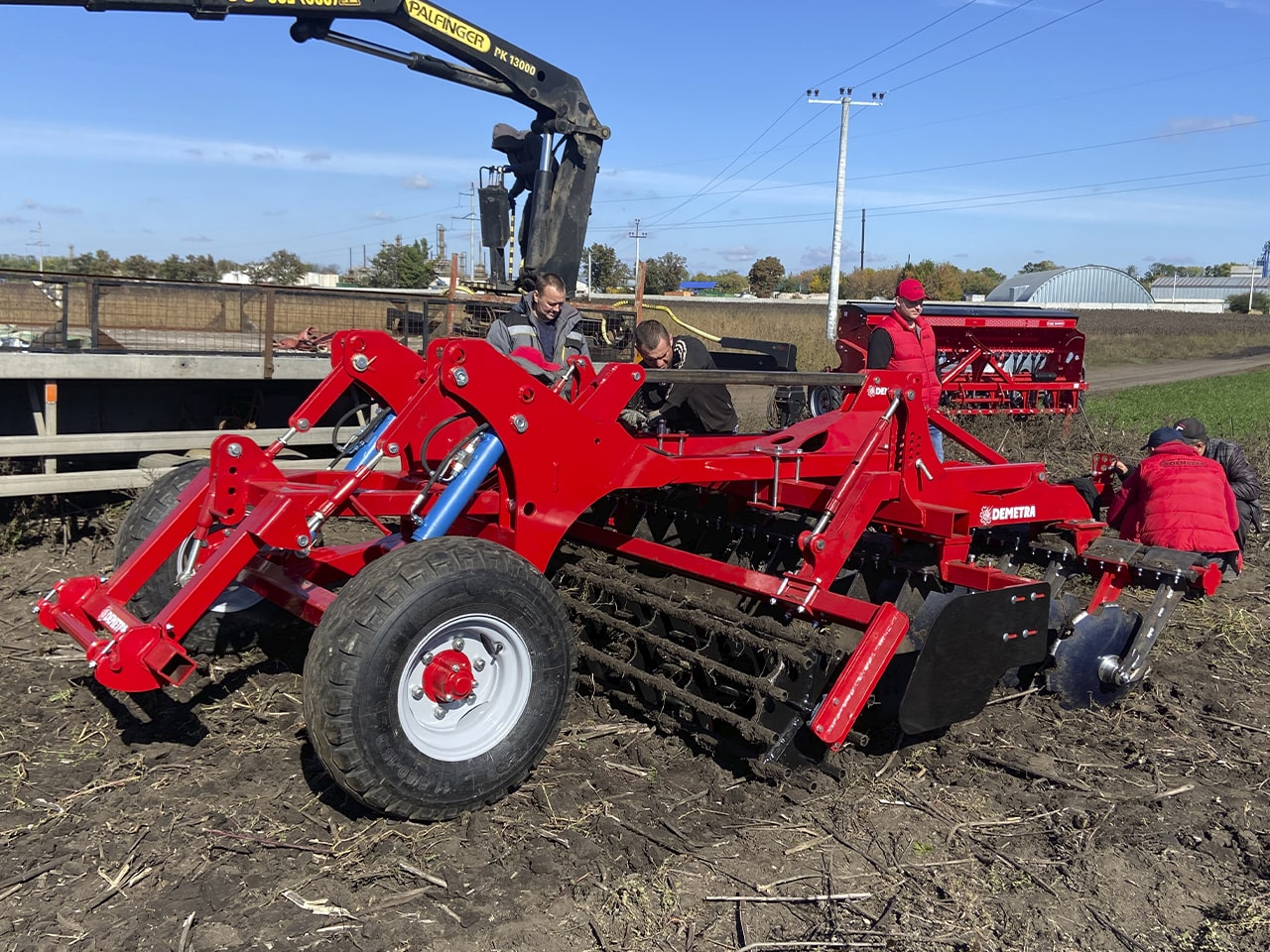

Disc Cultivator LDD-3000
Technical specifications:
|
|
LDD-300P (Trailed) |
LDD-300N (Mounted) |
|
Tractor power, not less than, hp |
100 |
100 |
|
Productivity per 1 hour of main operation, ha/h |
3.4 |
3.4 |
|
Working speed, up to, km/h |
10-18 |
|
|
Working width, m |
3.0 |
3.0 |
|
Tillage depth, cm |
3-14 |
|
|
Weight +/-3%, kg |
1690 |
1250 |
|
Overall dimensions in working position, m |
|
|
|
- Length |
5.35 |
2.46 |
|
- Width |
3.4 |
3.4 |
|
- Height |
1.65 |
1.35 |
|
Overall dimensions in transport position, m |
|
|
|
- Length |
5.15 |
2.46 |
|
- Width |
3.4 |
3.4 |
|
- Height |
1.7 |
1.35 |
|
Transport speed, not more than, km/h |
20 |
|
|
Number of working tools, pcs. |
|
|
|
Discs |
24 |
24 |
|

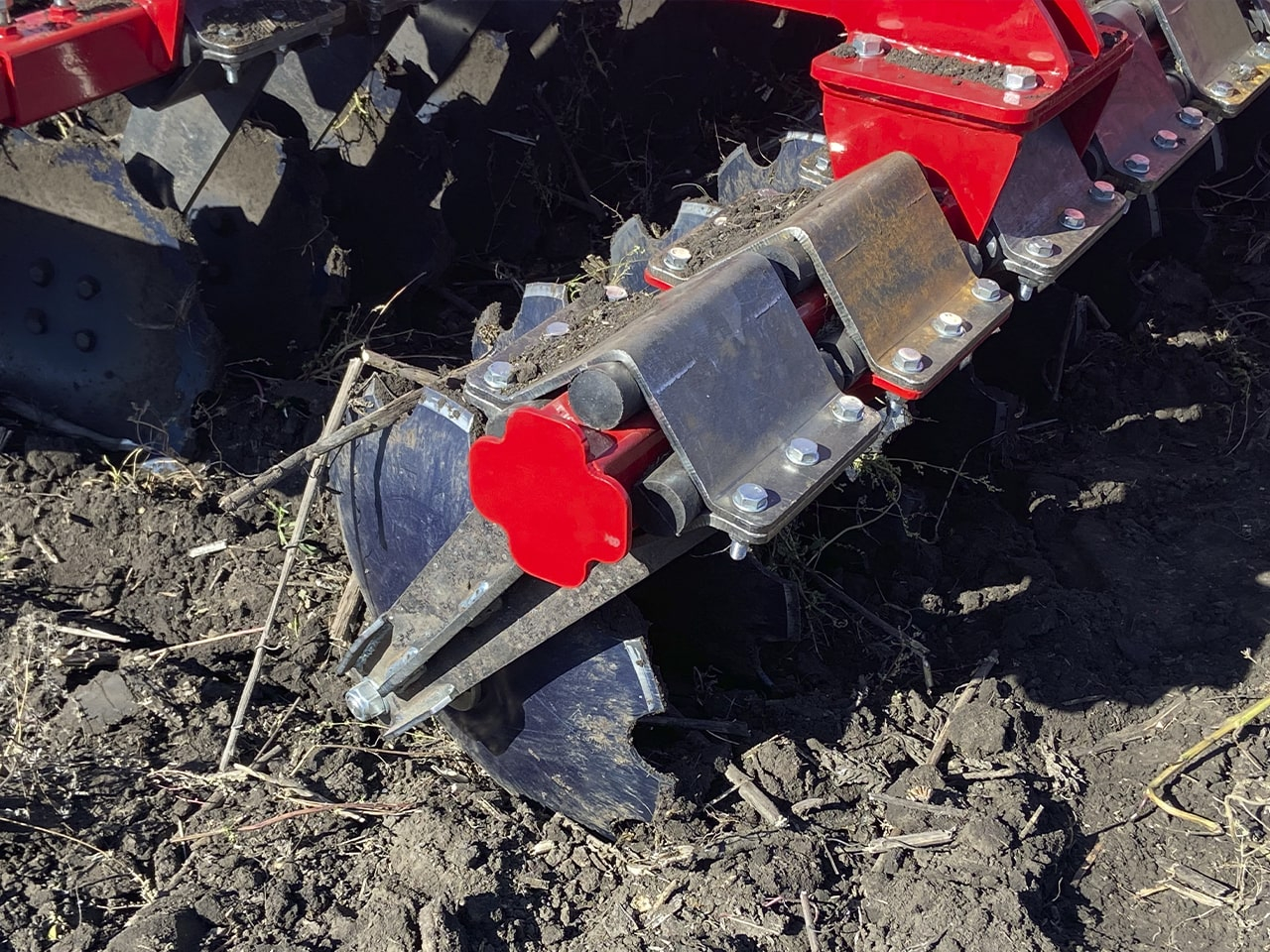

Packer rollers |
1 |
1 |
|

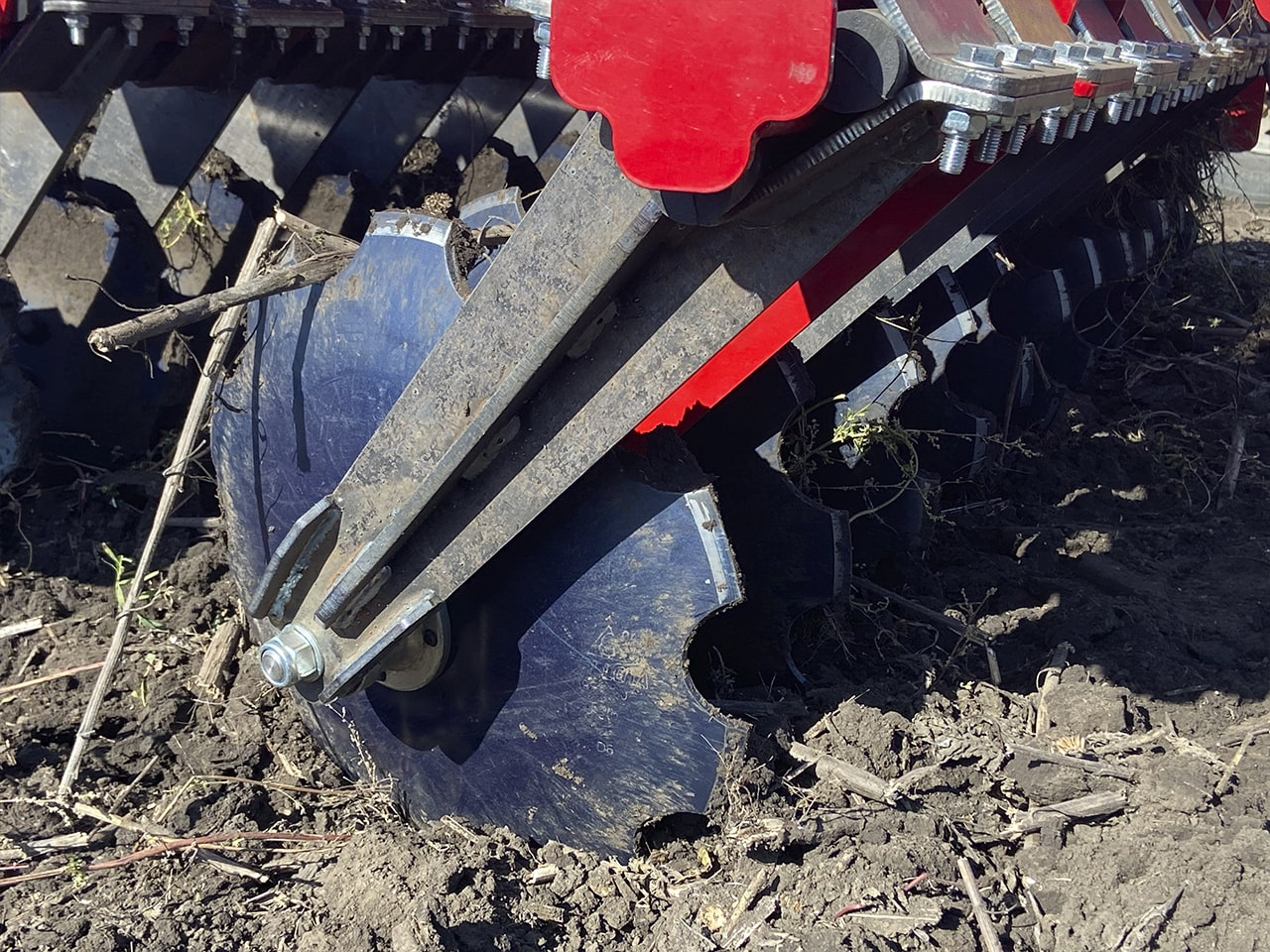

Diameter of working tools (discs), cm |
51/56 |
|
|
Distance between working tools, cm |
25 |
|
|
Disc angle of attack, degrees |
20 |
|
|
Distance between rows of working tools, cm |
90 |
|

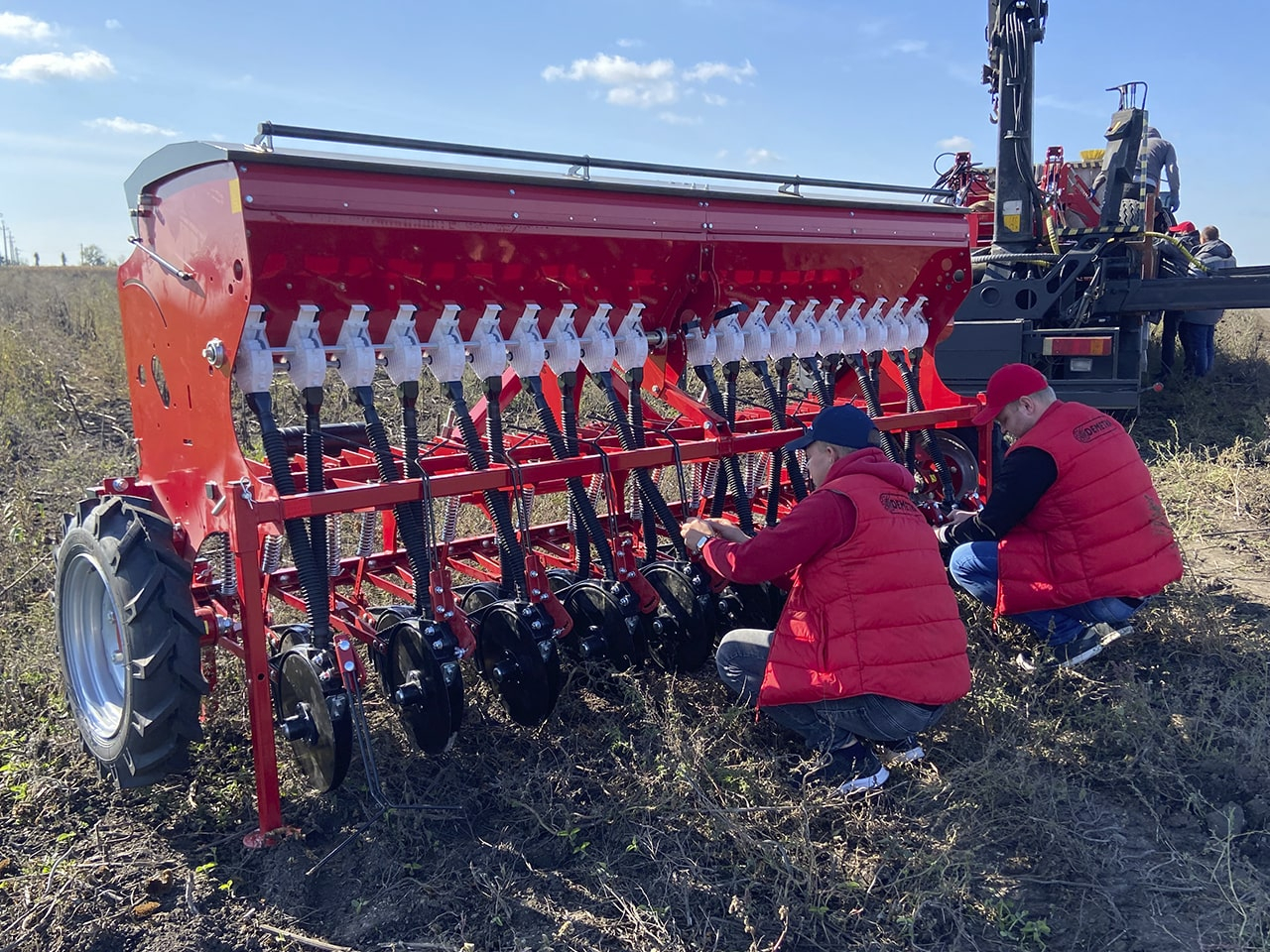

Technical specifications of SZD mini
|
SZD Model |
3000 |
|
Working width (m) |
3.0 |
|
Number of rows (pcs.)* |
20/40 |
|
Distance between openers (mm)* |
75/150 |
|
Seeding depth (cm) |
0 – 11 |
|
Opener pressure (kg) |
up to 65 |
|
Seeding speed (km/h) |
3 – 12 |
|
Transport speed (km/h) |
20 |
|
Productivity (ha/hour) |
0.81–3.42 |
|
Hopper capacity (m?) |
0.550 |
|
- with seed |
0.385 |
|
- with fertilizers |
0.165 |
|
Empty SZD weight (kg) |
970 |
|
Full SZD weight (kg)** |
1440 |
|
Dimensions (W x D x H) (m) |
3.76 x |
|
Technology track (m) |
3.6 |
|
Hitch category |
I / II |
|
Mini tractor power, not less than (hp) |
80 |
* opener without or with offset/2-row
** maximum weight indicated! May vary depending on the density of the seeding material
