Tooth harrow БН-9 mounted hitch
Learn moreMore about "Tooth harrow БН-9 mounted hitch"
| Parameter | Value |
|---|---|
| Тип | Навісна |
| Потужність трактору, не менше, к.с. | 100 |
| Продуктивність за 1 годину основного часу, га/год | 9-10,8 |
| Довжина в робочому положенні, м. | 2,8 |
| Ширина в робочому положенні, м. | 9,6 |

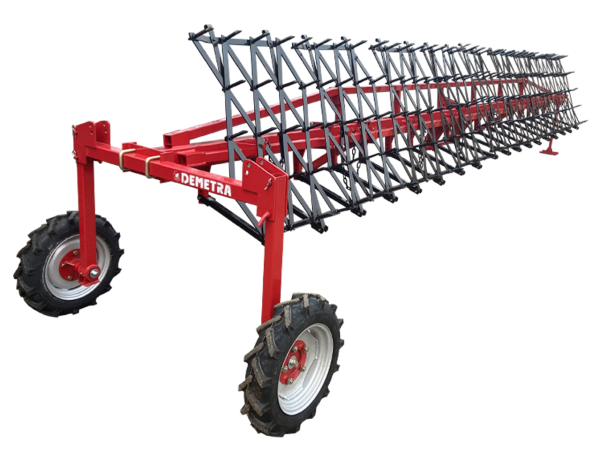

Tooth Harrow BN-9
Designed for harrowing field soil. It is used for loosening the soil (releasing moisture) using the traditional tillage method and is equipped with 9 heavy toothed harrows.
The advantage of this harrow coupling is its working width during cultivation (9 m per pass), which significantly affects labor productivity and resource savings, thereby reducing the cost of soil cultivation.
Technical specifications BN
|
No. |
Name of parameter |
Value |
|
BN-9 |
||
|
1 |
Tractor power, not less than, hp |
100 |
|
2 |
Productivity per 1 hour of main operation, ha/h |
7.5–9.0 |
|
3 |
Working speed, not more than, m/h |
15 |
|
4 |
Working width, up to, m |
9.0 |
|
5 |
Tillage depth, cm |
3.5 |
|
6 |
Weight, kg |
1100 |
|
7 |
Overall dimensions in working position, m |
|
|
- Length |
2.8 |
|
|
- Width |
9.6 |
|
|
- Height |
1.4 |
|
|
8 |
Overall dimensions in transport position, m |
|
|
- Length |
10.7 |
|
|
- Width |
1.9 |
|
|
- Height |
2.0 |
|
|
9 |
Transport speed, not more than, km/h |
20 |
|
10 |
Road clearance, not less than, mm |
300 |
|
11 |
Number of joining sections, pcs. |
9 |
