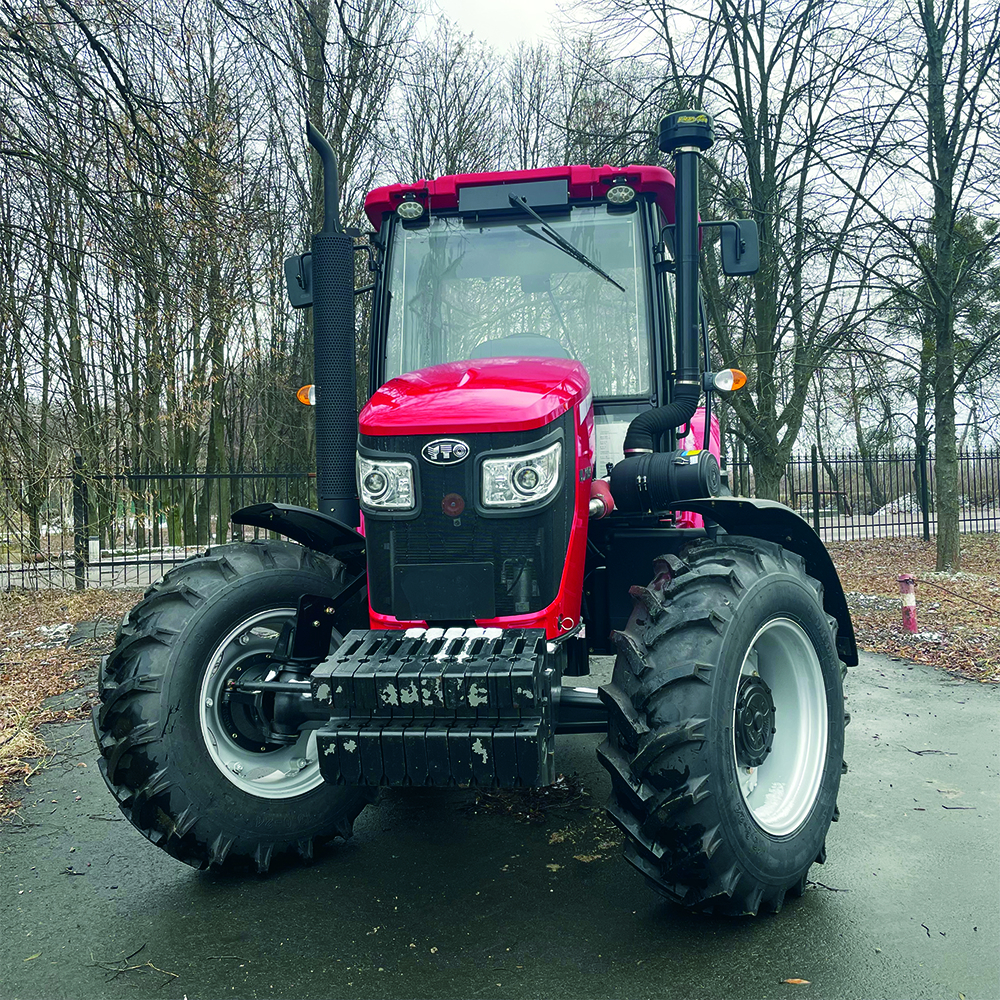

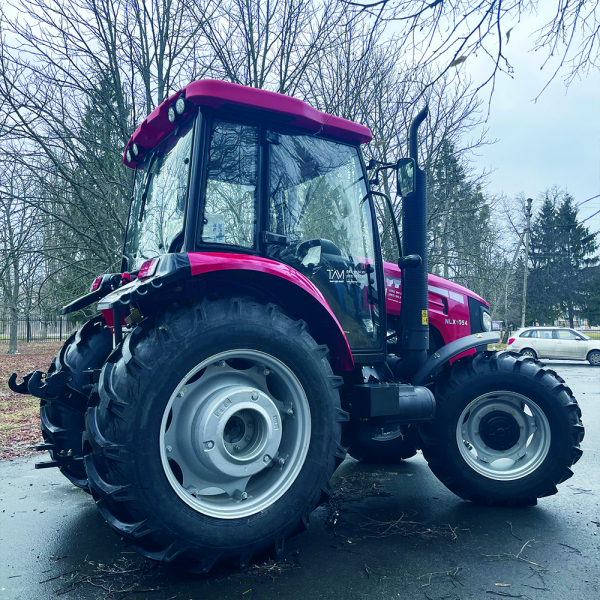

Tractor YTO NLX 1054
Learn moreMore about "Tractor YTO NLX 1054"
Tractor YTO NLX 1054
Advantages of the tractor:
• Economical engine, developed using PERKINS (UK) technology;
• The heavy weight of the tractor reduces the likelihood of wheel slippage;
• Mechanical transmission 12x4, made under FIATAGRI (Italy) license;
• Full-lock rear differential with mechanical drive;
• Two-plate clutch LUK (Germany);
• Powerful front axle of beam type, made under Carraro (Italy) license;
• Availability of both internal and external control lever for the rear linkage;
• Standard towing device for towed implements and a pendulum towing bar;
• Updated cabin design with carbon filters, Grammer seat, air conditioning, heater, etc.
Main technical specifications:
|
Dimensions: L × W × H |
4.35×1.93×2.76 m |
|
Front wheel track |
1530-2030 mm |
|
Rear wheel track |
1400-2100 mm |
|
Wheelbase |
2314 mm |
|
Ground clearance |
440 mm |
|
Turning radius |
5.3 m |
|
Power |
64 kW |
|
Revolutions |
540/1000 rpm |
|
Lift capacity of the hitch |
3500 kg |
|
Fuel tank capacity |
165 l |
|
Weight |
4880 kg |
Equipment:
- Air filter with external placement;
• 12 + 12 transmission;
• Synchronized transmission;
• Differential lock — hydraulic;
• PTO (Power Take-Off) 540 (6 teeth) / 1000 (8 teeth);
• Cabin with heater;
• Air conditioner;
• MP3 player with USB port and 2 speakers;

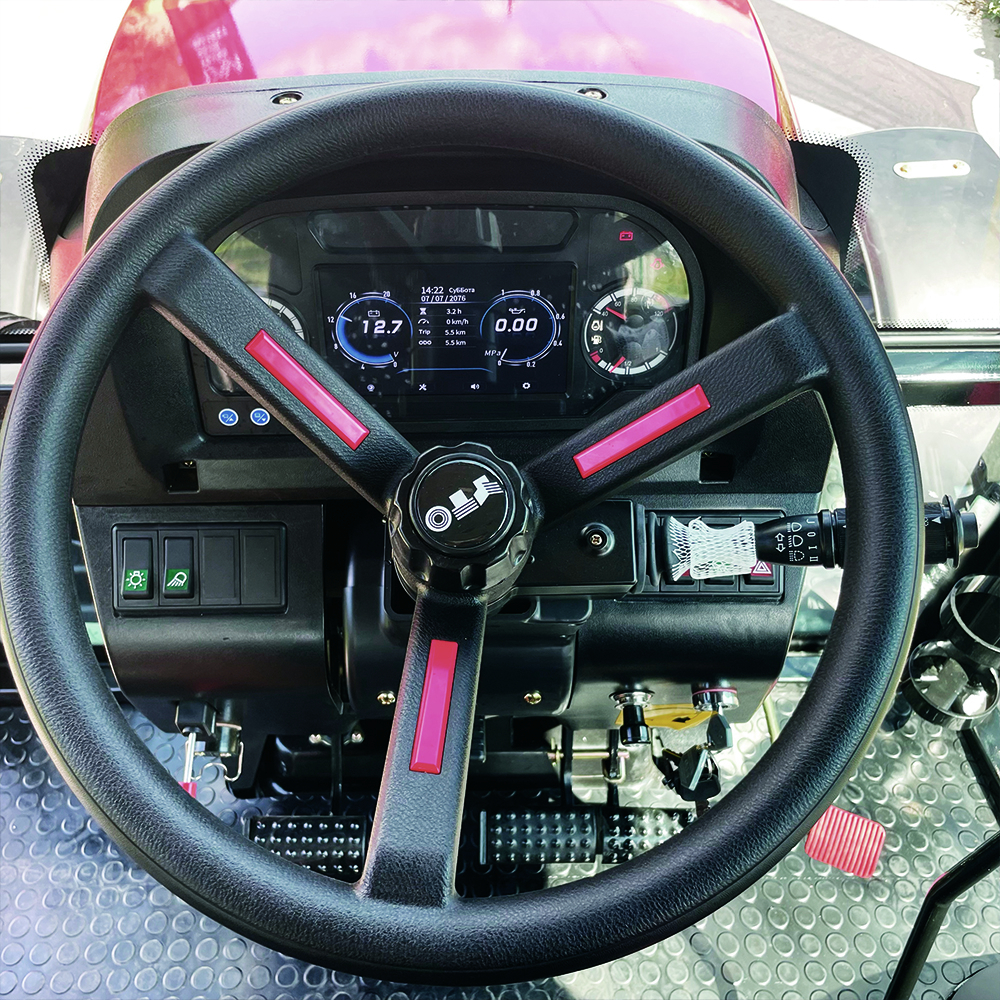

• Steering wheel with height and tilt adjustment;
• Additional seat for passenger;
• Front tires 13.6x24, rear tires 16.9x34;
• Front fenders;
• Positioning tractor hitch;
• Lift-O-Matic on the tractor fender;
• Tractor hitch category 2;
• 3 pairs of hydraulic outlets with 1 floating position;
• Front weights 10 pieces of 40 kg, rear weights 6 pieces of 50 kg;
• Tool box;
• Tool kit;
• Separate hydraulic tank;
• Front windshield wiper;
• Cigarette lighter in tractor cabin;
• Two-plate clutch 12 "LUK;
• Fuel separator coarse filtration;

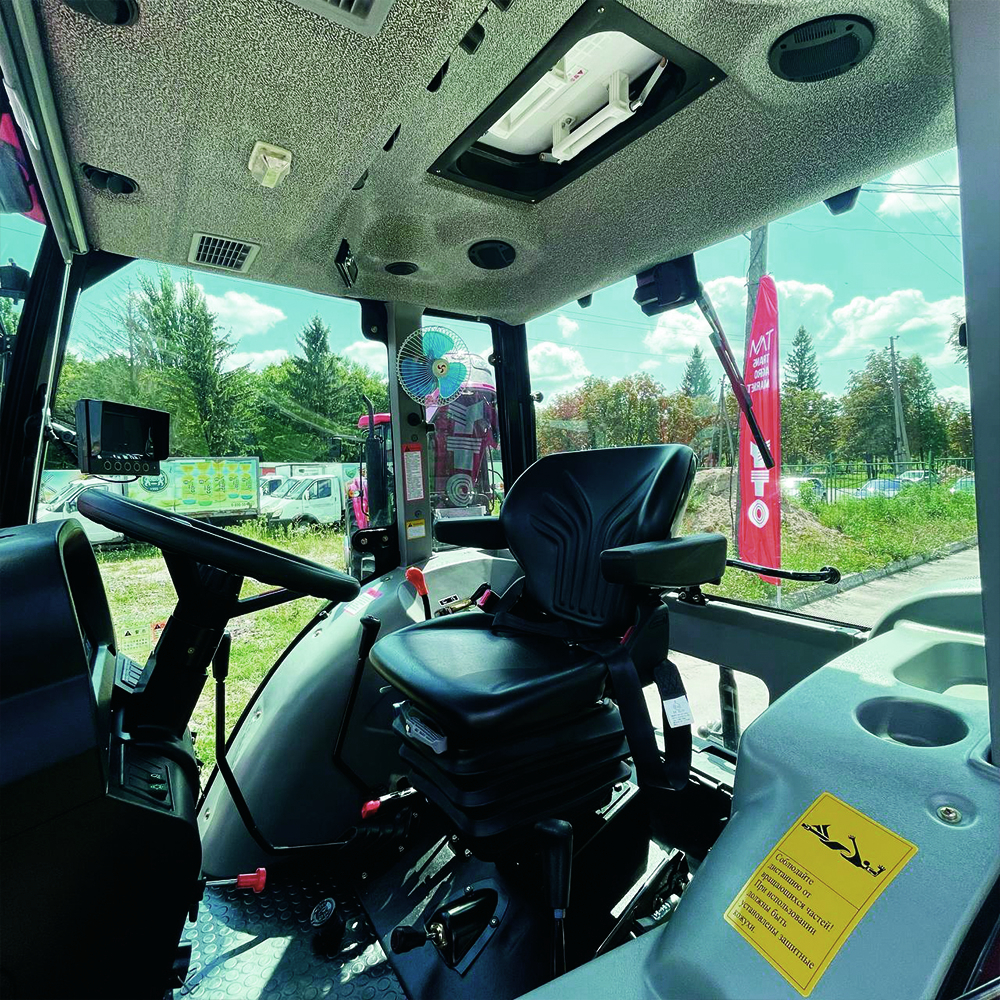

• Improved Grammer seat with seatbelt and armrests;
• Rear window washer;
• Sun visor on the windshield;
• Towing device with mechanical angle adjustment;
• License plate illumination;
• Two additional hitch cylinders;
• Air compressor with 1 outlet for pneumatic brakes;
• Fire extinguisher bracket;
• Grey wheel rims color;
• LED work light headlights;
• Plastic fender trim with organizers;
• Leatherette cover under the seat;
• New design of the hood and cabin;
• Carbon cabin filter;
• Additional transverse hitch;
• Rearview camera;

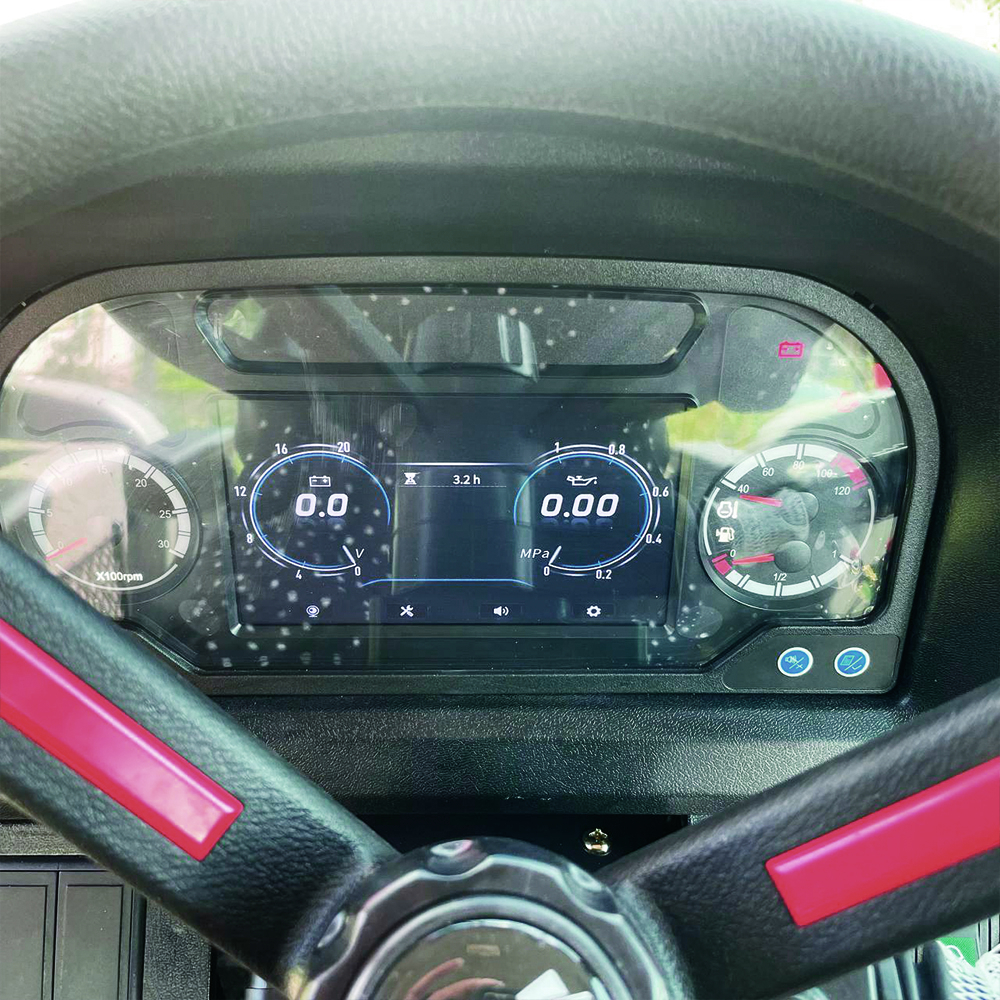

• Digital dashboard.
