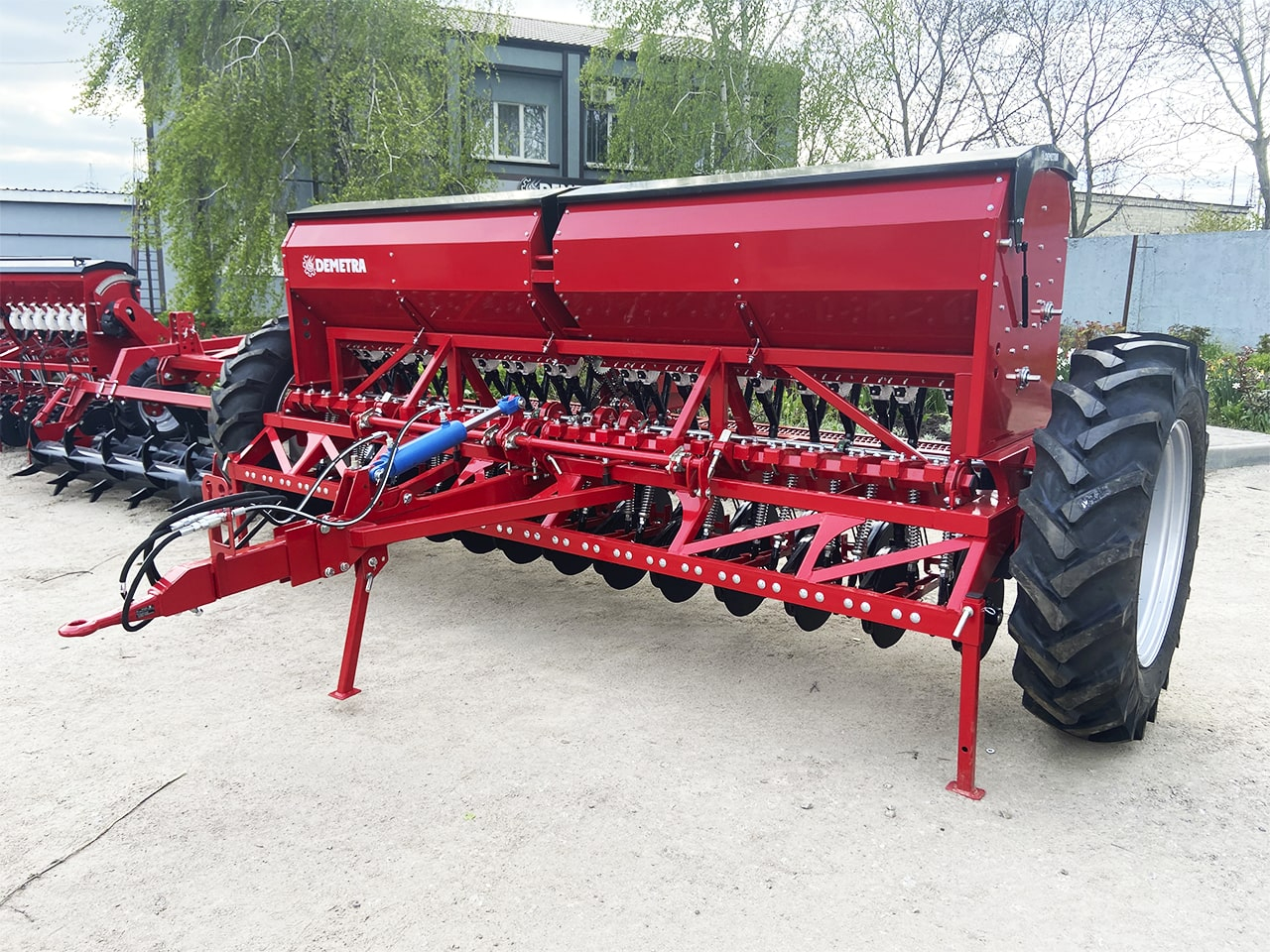

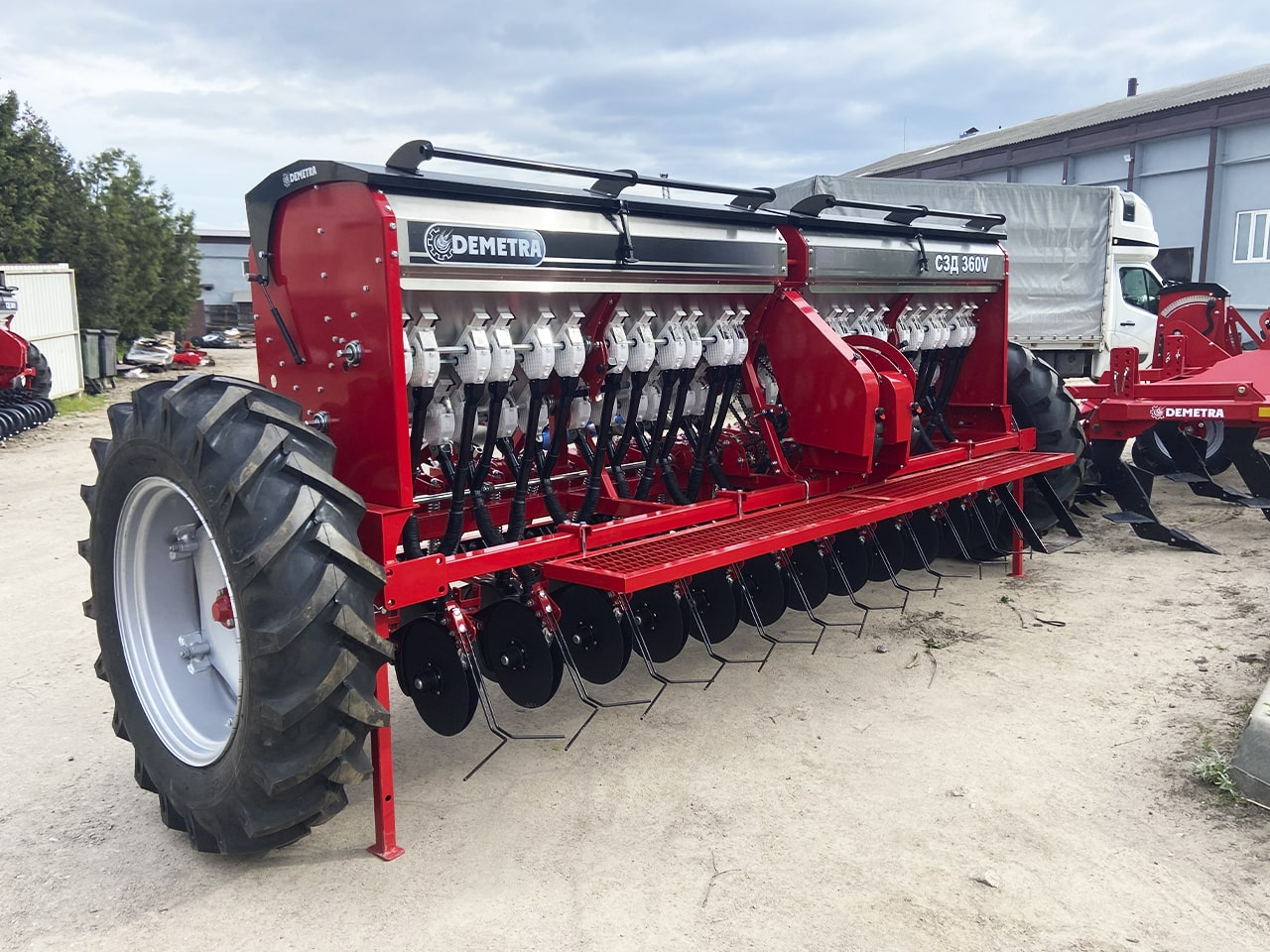

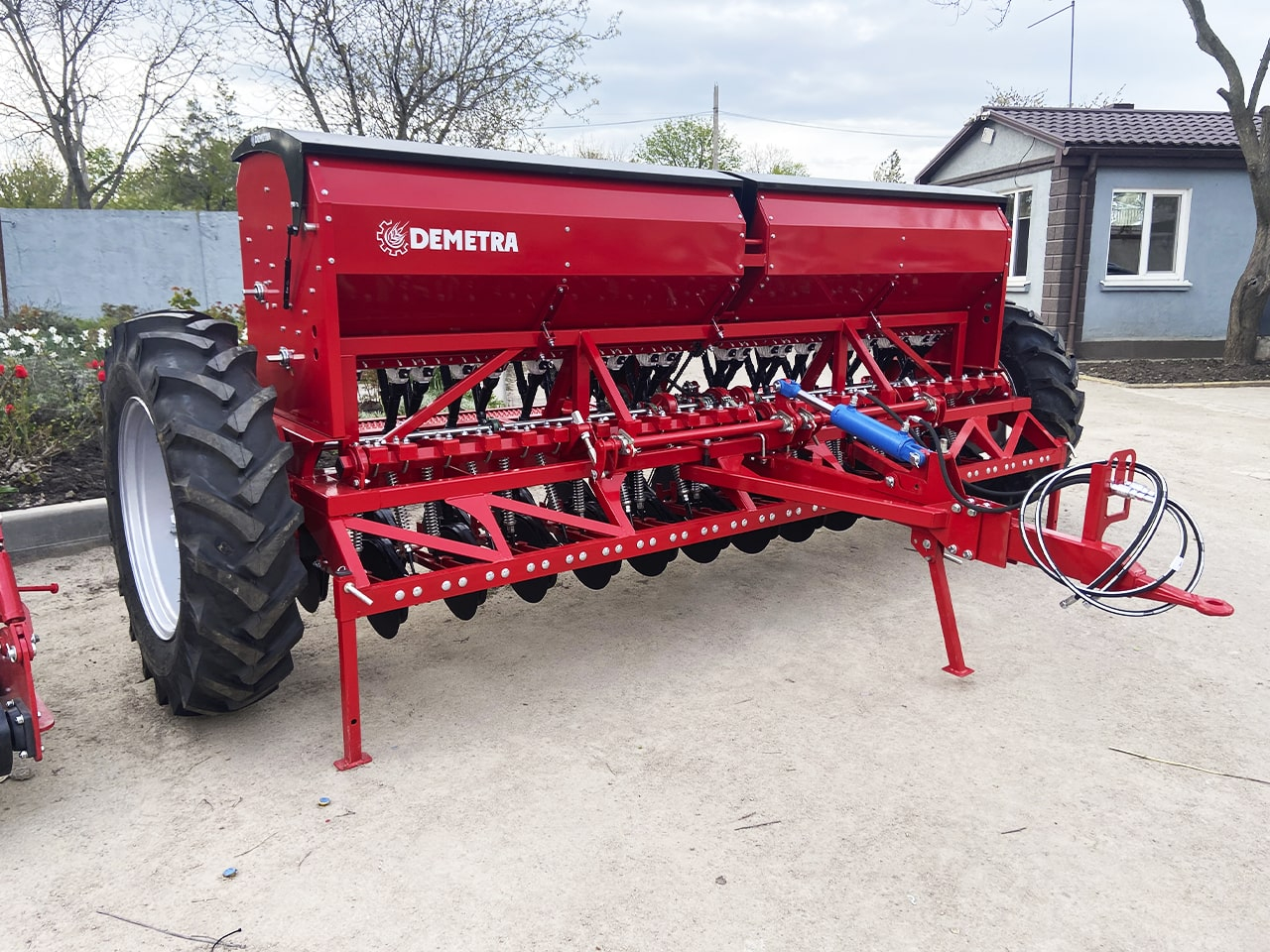

Variable grain seeder СЗД-360-03V
Learn moreMore about "Variable grain seeder СЗД-360-03V"
| Parameter | Value |
|---|---|
| Ширина захвату | 3,6 м |
| Кількість сошників | 24 шт |
| Продуктивність | 3,2-4,0 га/год |
| Ємність бункеру для насіння м³/кг | 0,720 |
| Ємність бункеру для добрив м³/кг | 0,350 |
SZD-540V (SZ-5.4) – a grain seeder with a continuously variable transmission (CVT), designed for row sowing of cereals (wheat, barley, rye, oats), legumes (soy, pea, bean, chickpea), and small-seeded crops (rapeseed, mustard, flax) as well as fine- and medium-textured grass seeds with simultaneous application of mineral fertilizers.
Several reasons to buy this seeder from us:
-

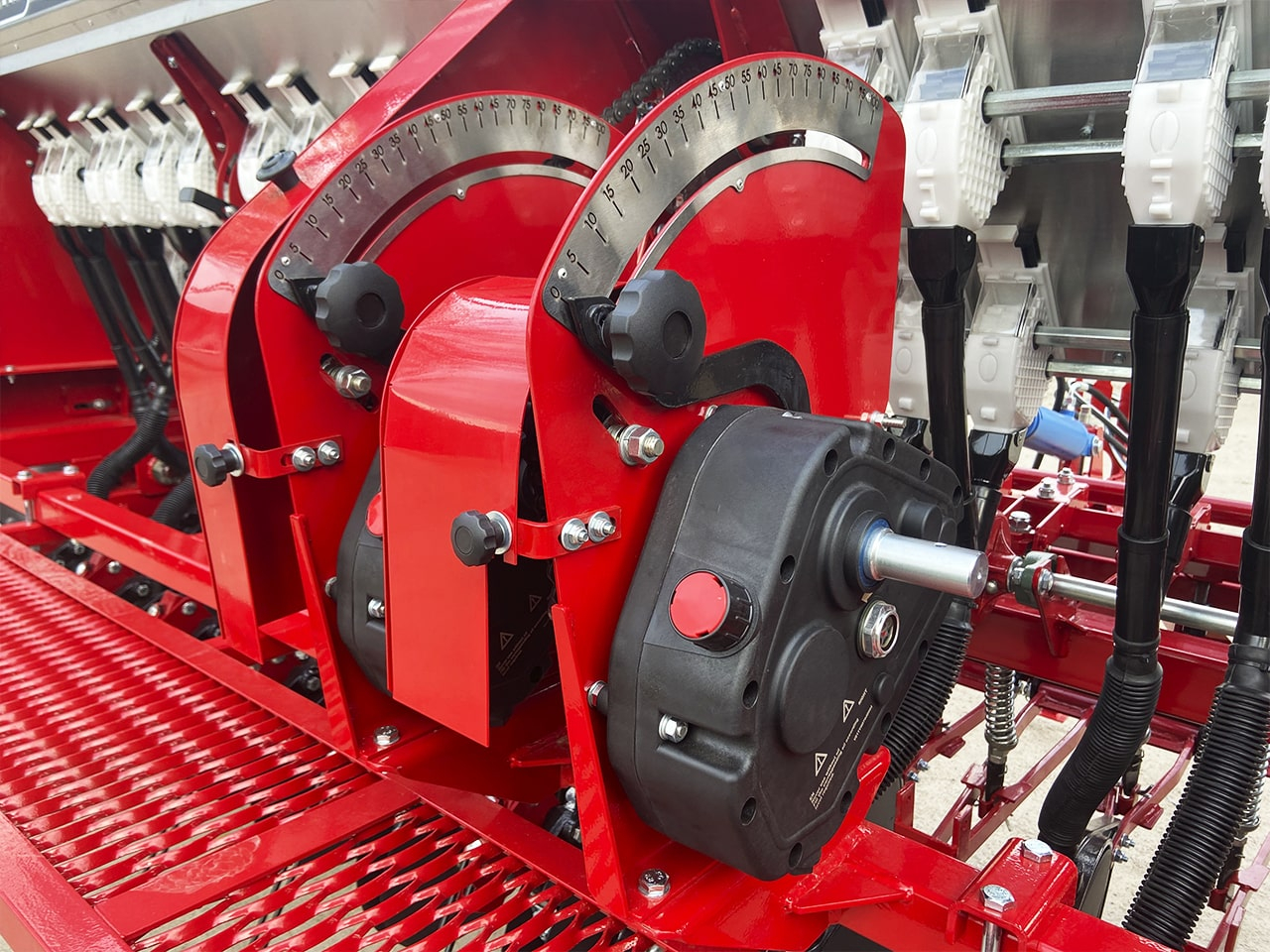

CVT (continuously variable transmission mechanism)
-
Hopper made entirely of stainless steel
-

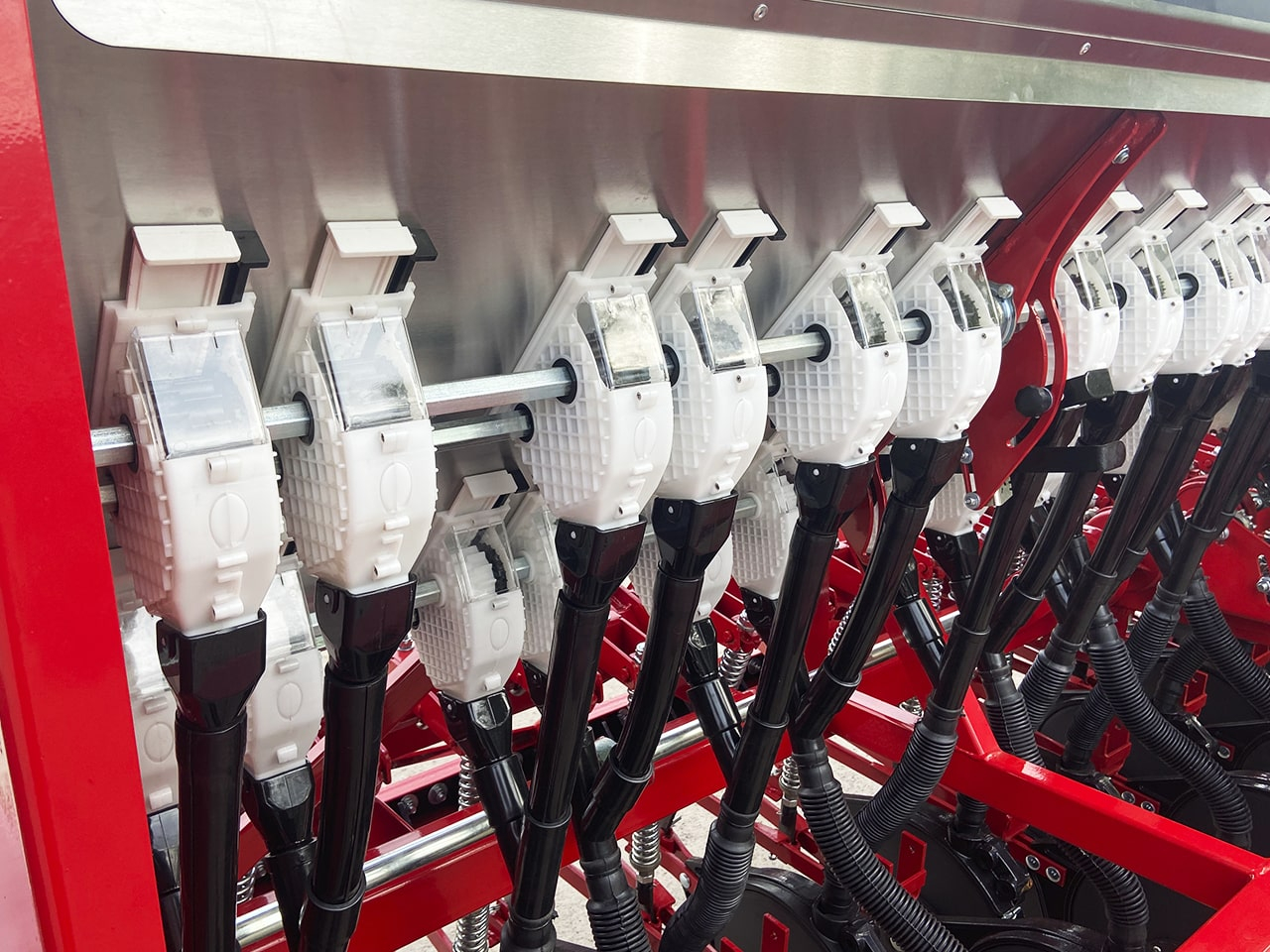

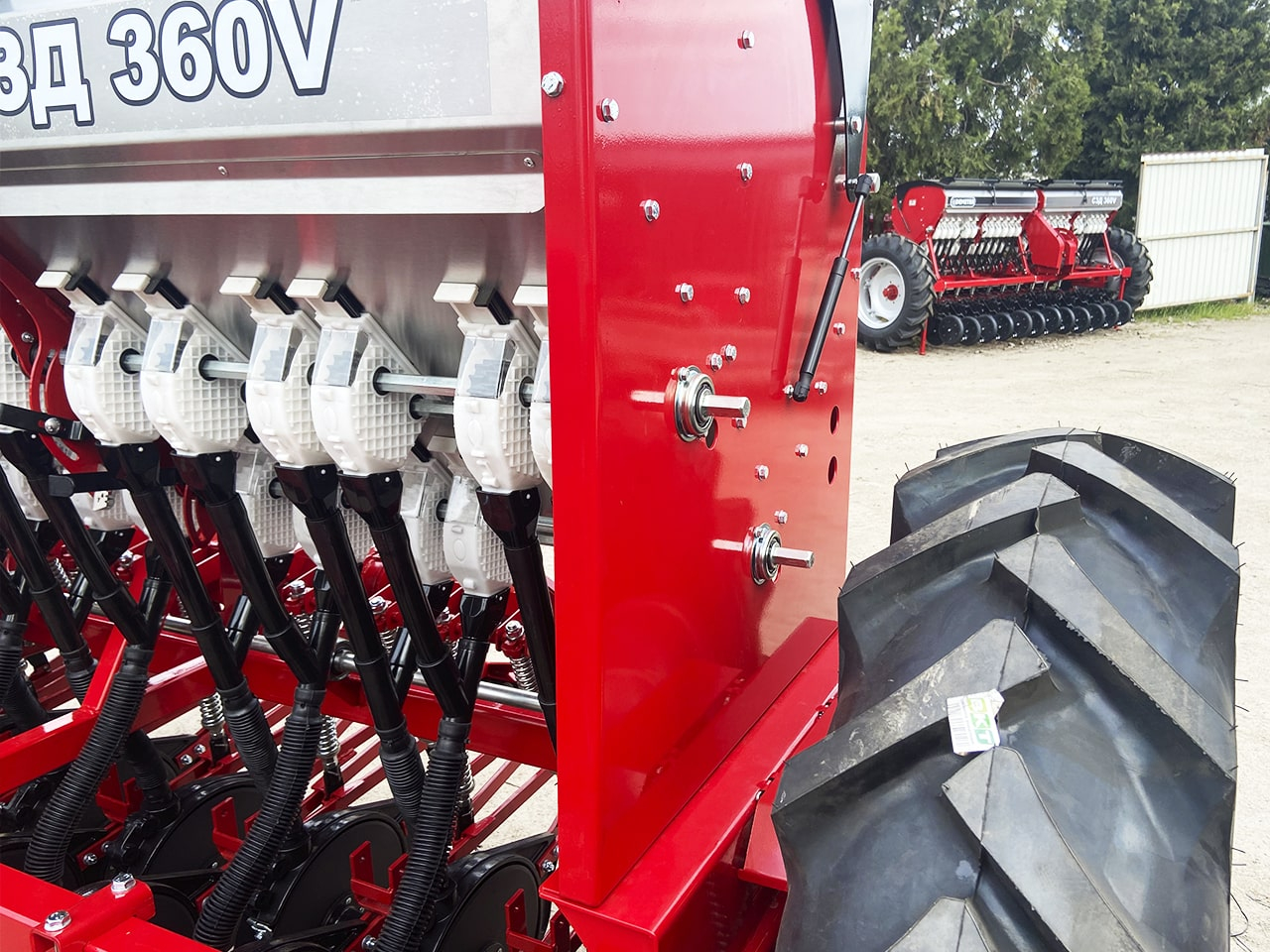

Seed and fertilizer dispensing devices made of polymer materials
-

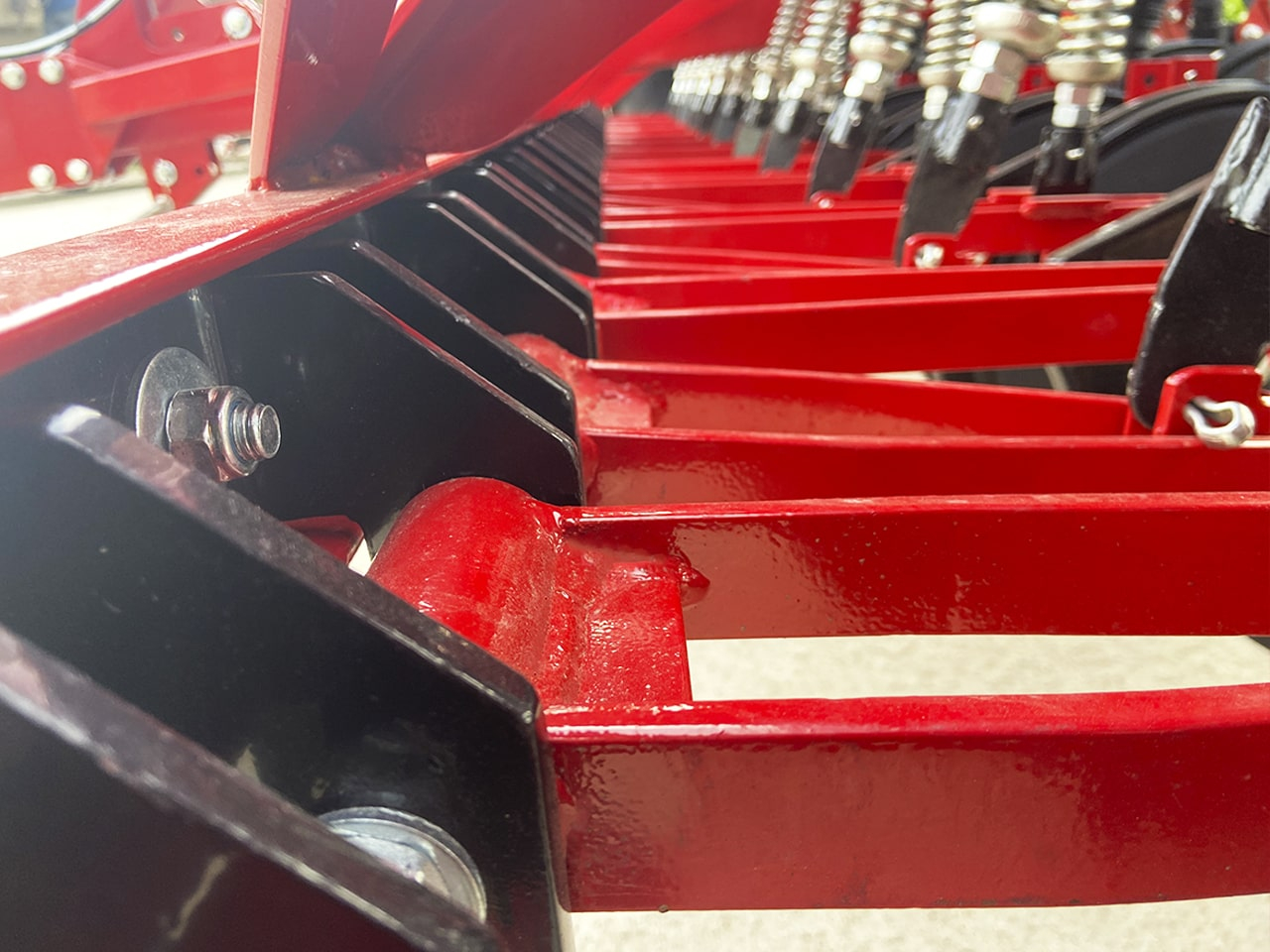

Reinforced frame
-
Enlarged hoppers for grain and fertilizers
-
Small-seed sowing device
-

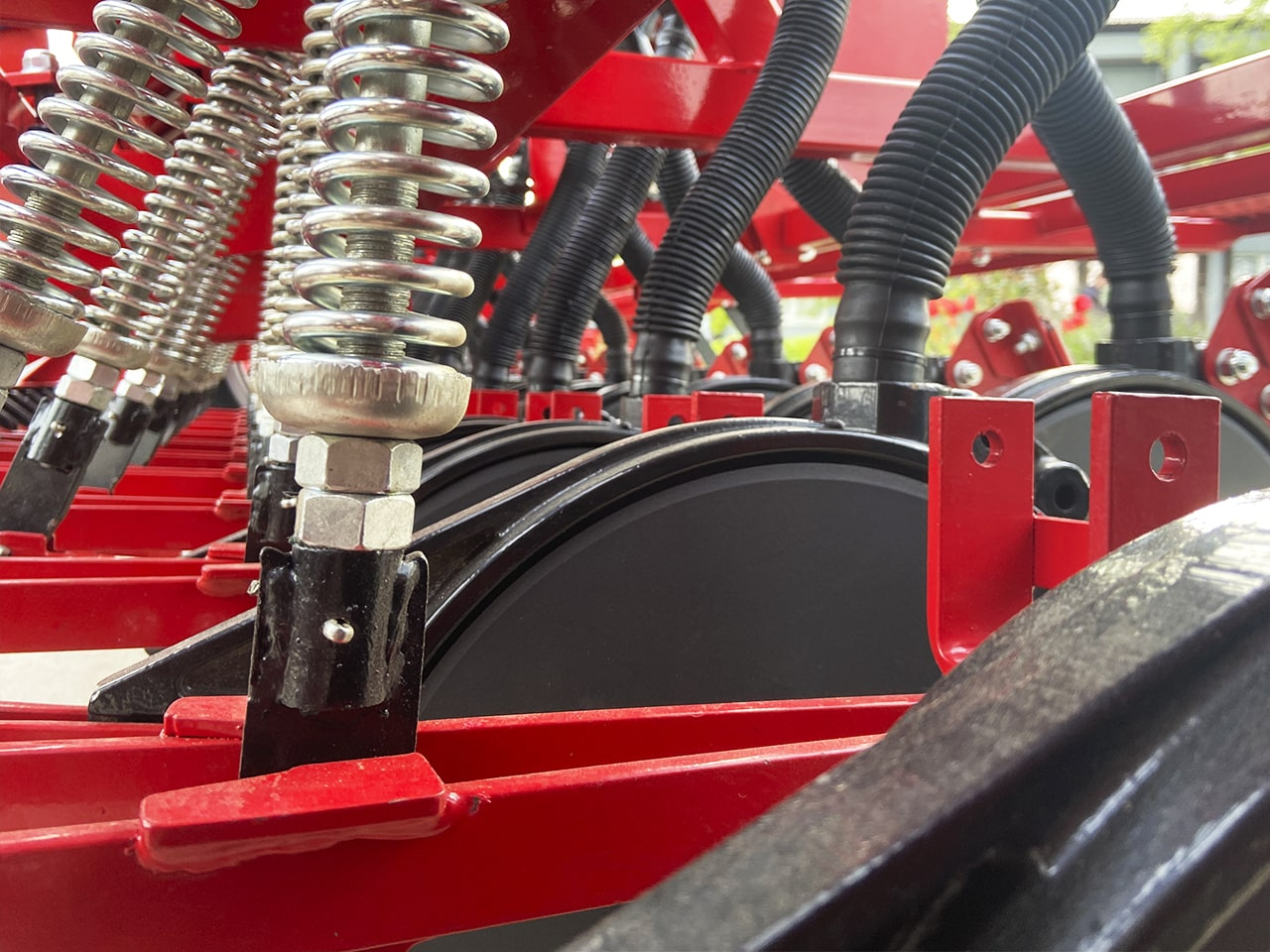

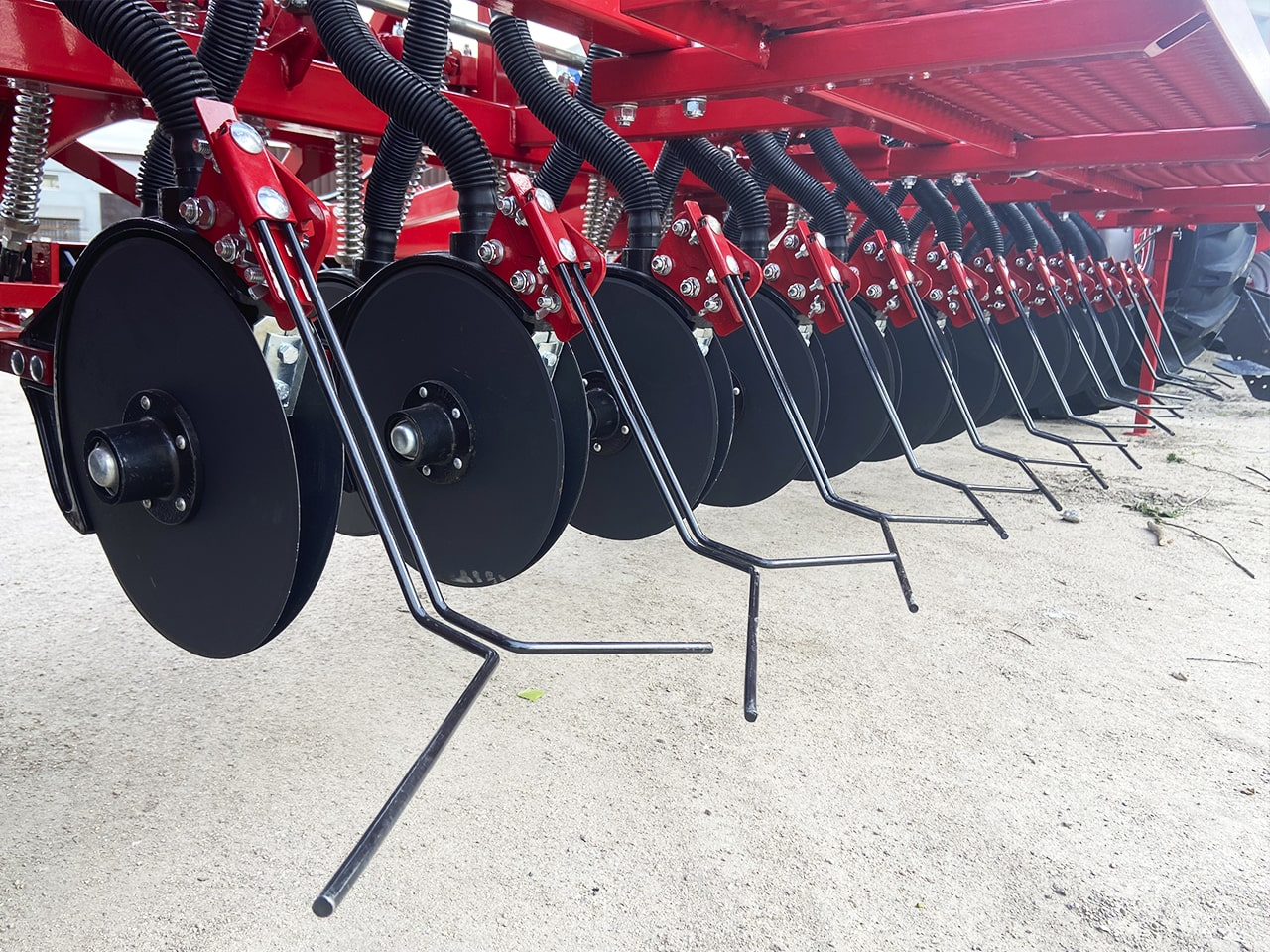

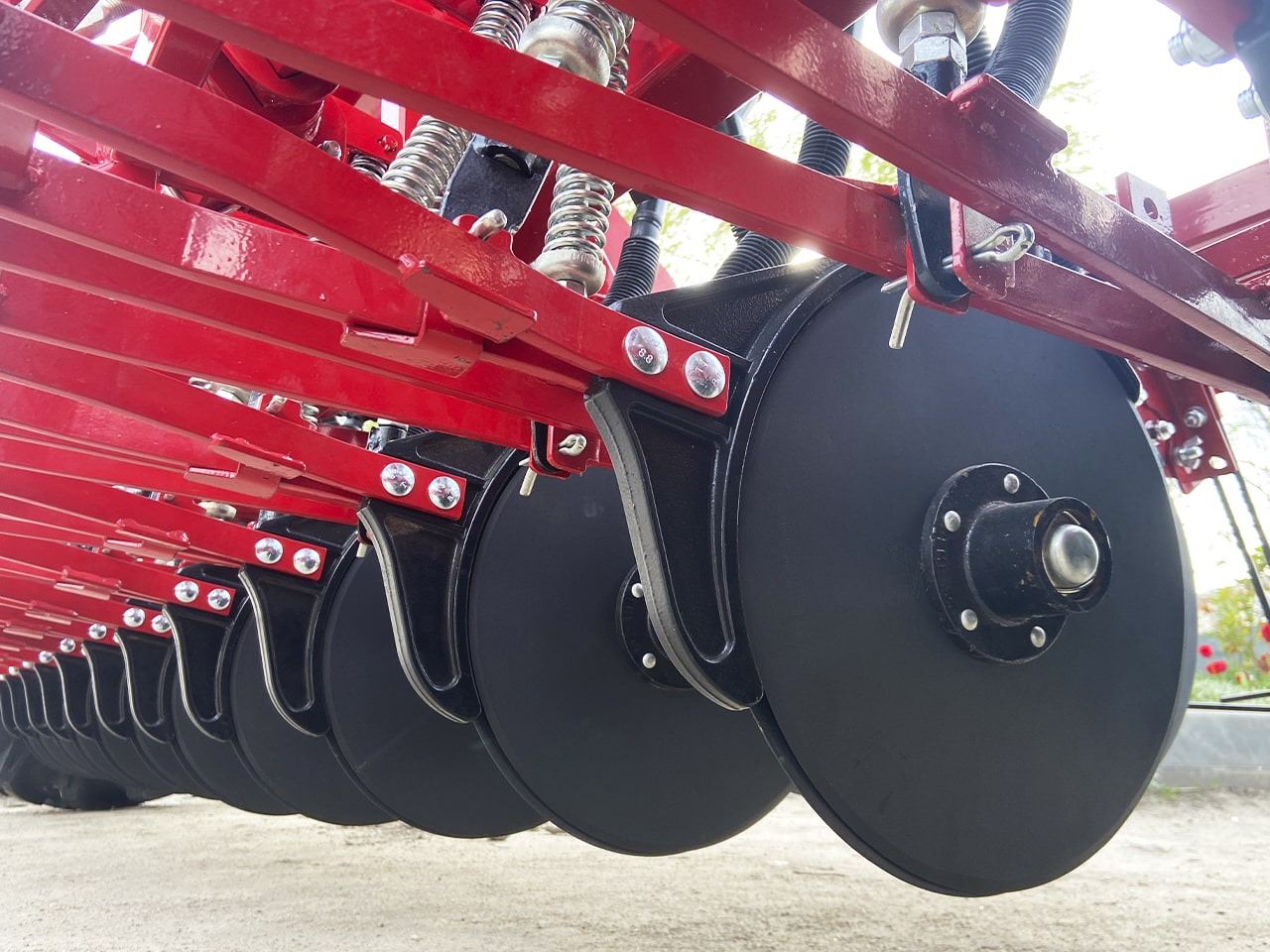

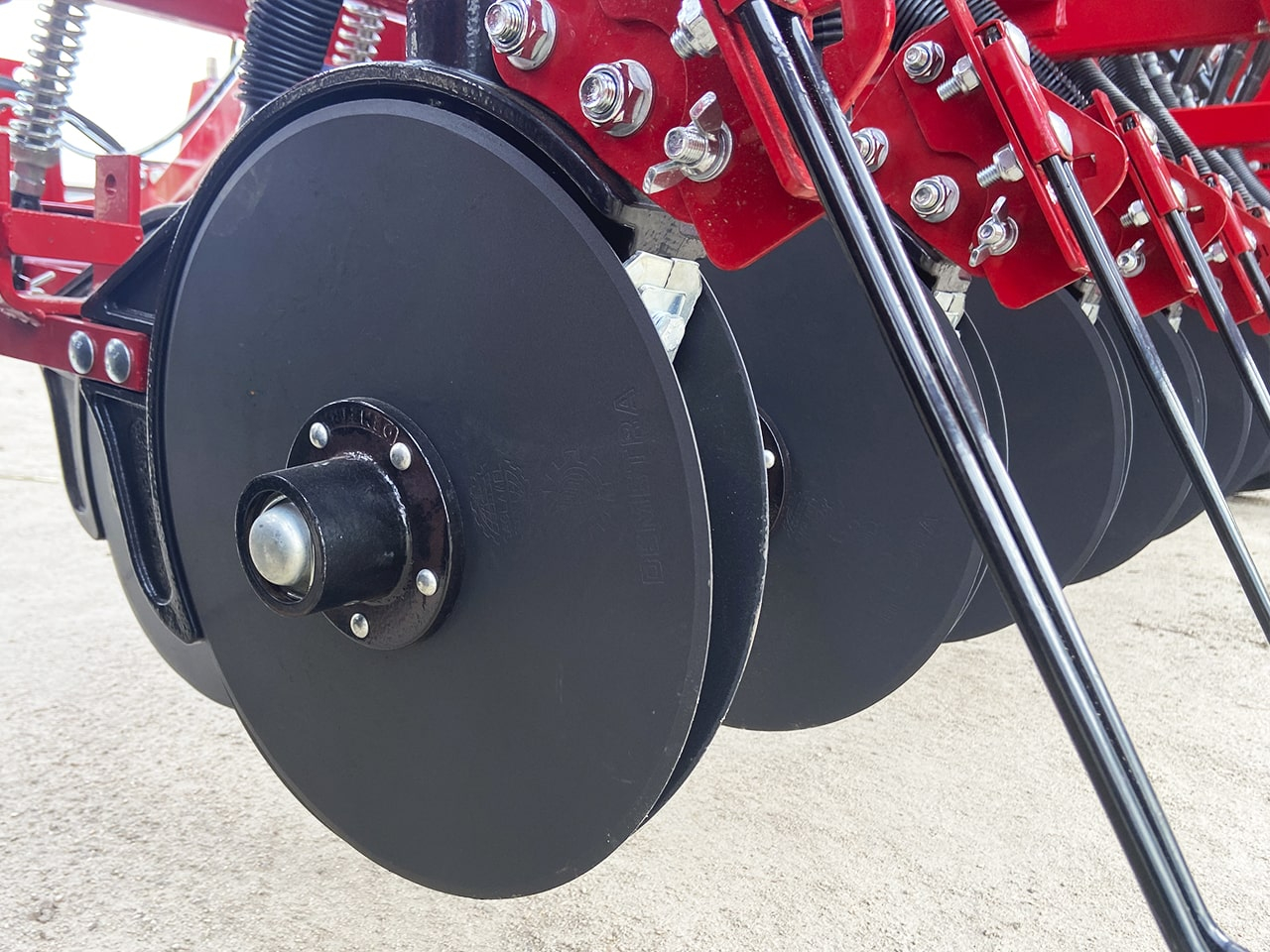

Openers made of boron-containing steel 30MnB5, 3 mm thick
-

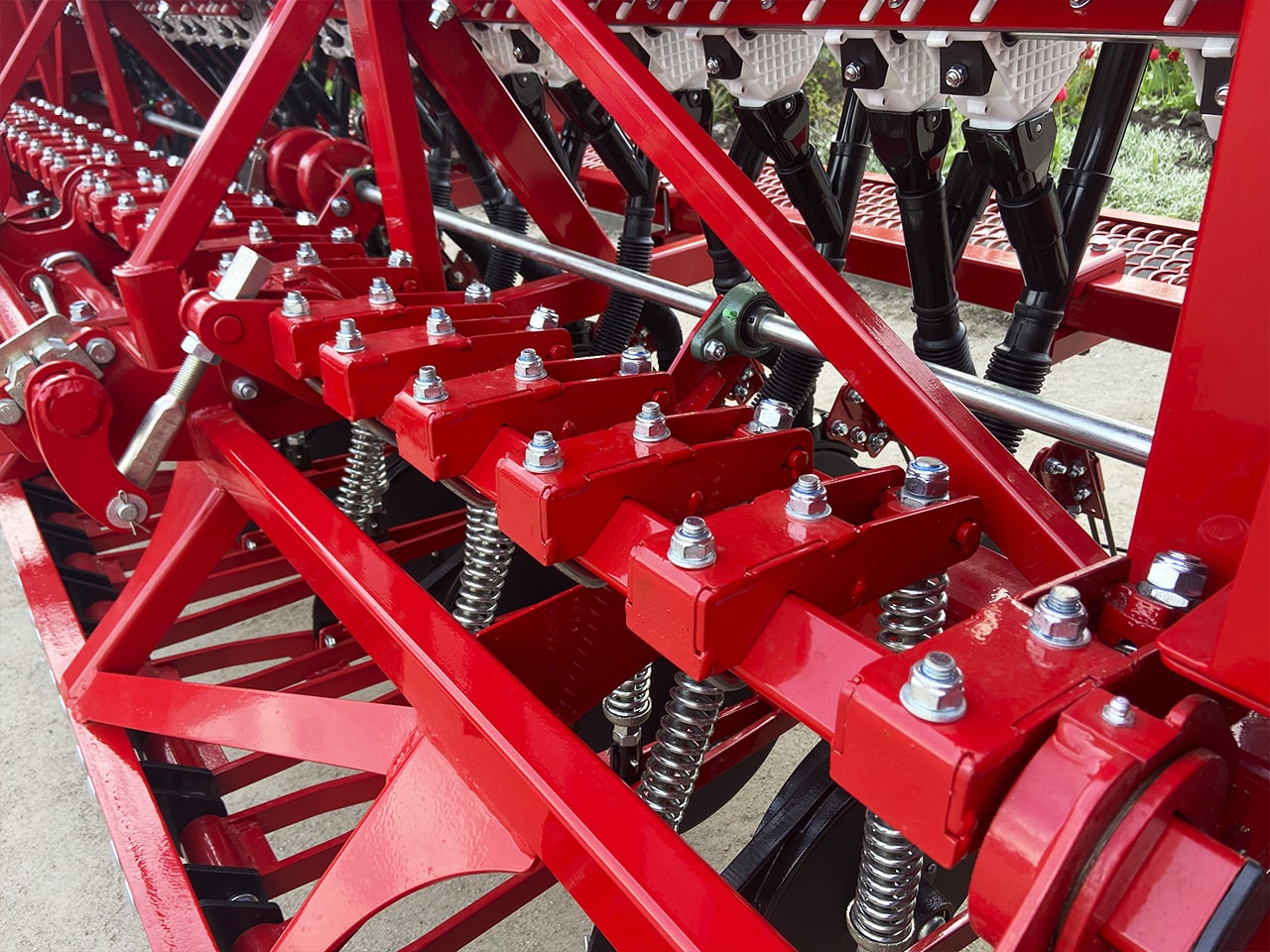

Opener link with a thickness of 10 mm
-

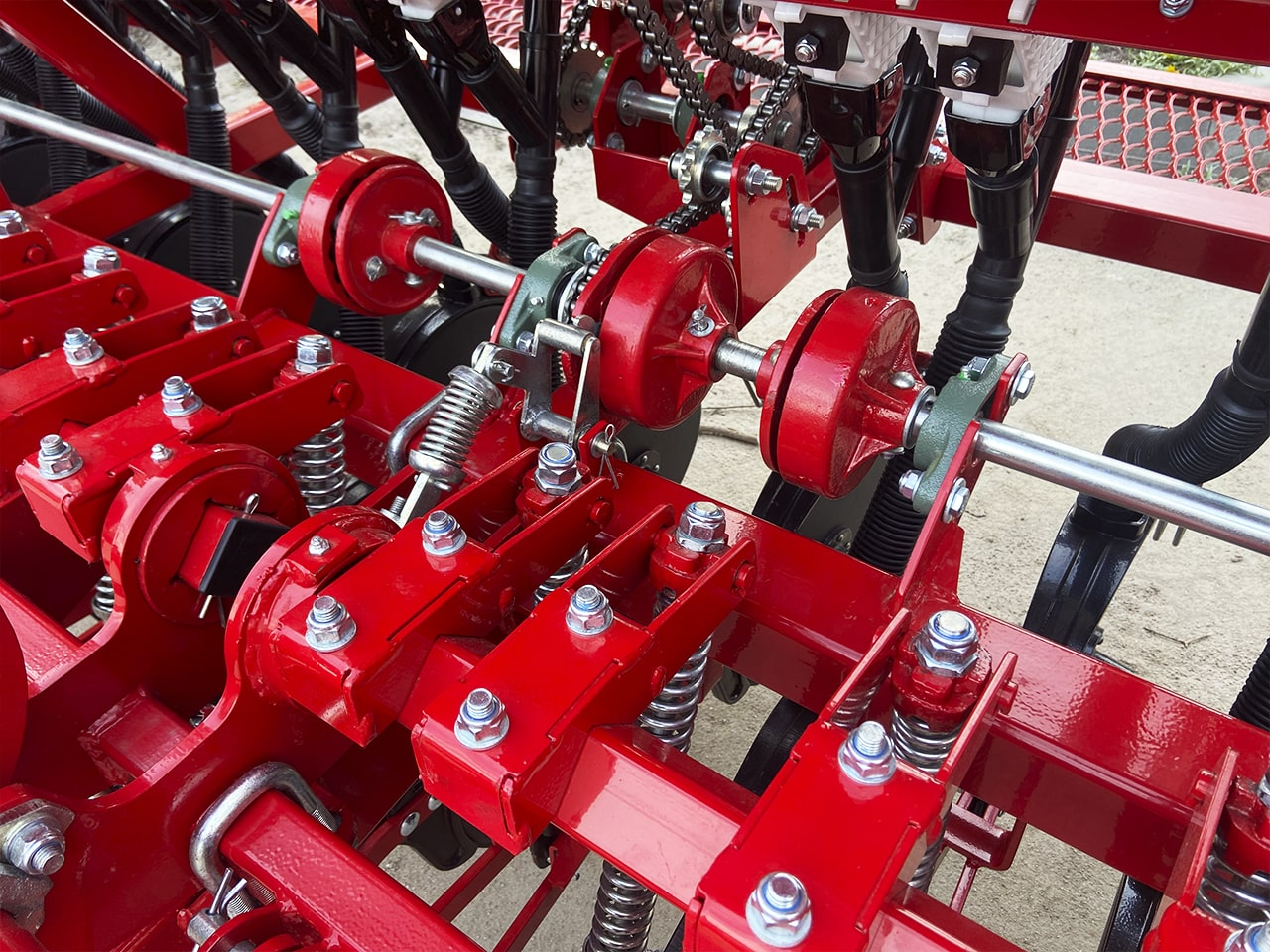

Counterdrive shafts mounted on rolling bearings
-
Detailed powder coating
-
Anti-corrosive galvanic coating on selected parts
|
Name of parameters |
Unit |
Parameters |
|||
|
SZD 360-V |
SZD 420-V |
SZD 540-V |
|||
|
Productivity per hour of main operation |
ha/h |
3.2–4.3 |
3.8–5.0 |
4.9–6.5 |
|
|
Working speed in main operations |
km/h |
9–12 |
|||
|
Working width |
m |
3.6 |
4.2 |
5.4 |
|
|
Row spacing |
cm |
15 |
|||
|
Fertilizer application range |
kg/ha |
0.5–400 |
|||
|
Seeding depth |
mm |
20–80 |
|||
|
Empty seeder weight / weight with grain and bags |
kg |
1680/2700 |
2680/ |
2830/ |
|
|
Overall dimensions of the seeder in working position with transport device and markers |
m |
|
|||
|
|
Length |
3.50 |
3.80 |
4.55 |
|
|
Width (excluding markers) |
4.60 |
5.30 |
6.50 |
||
|
Height |
2.90 |
||||
|
Hopper capacity (total) |
m3 |
|
|||
|
|
for seed |
0.720 |
0.900 |
1.140 |
|
|
for fertilizers |
0.350 |
0.440 |
0.552 |
||
|
Empty seeder weight (kg) |
kg |
970 |
|
|
|
|
Full seeder weight (kg)** |
kg |
1440 |
|
|
|
|
Dimensions of the seeder (W x D x H) (m) |
m |
3.76 x |
1.63 x 1.415 |
|
|
|
Technology track (m) |
m |
3.6 |
|||
|
Hitch category |
I / II |
||||
|
Mini tractor power, not less than (hp) |
hp |
80 |
|||
* opener without or with offset/2-row
** maximum weight indicated! May vary depending on the density of the seeding material
Price is indicated for the unit, without the transport device
