Variable grain seeder СЗД-540V
Learn moreMore about "Variable grain seeder СЗД-540V"
| Parameter | Value |
|---|---|
| Ширина захвату | 5,4 |
| Кількість сошників | 36 |
| Продуктивність | 4,9-6,5 |
| Ємність бункеру для насіння м³/кг | 1,140 |
| Ємність бункеру для добрив м³/кг | 0,522 |

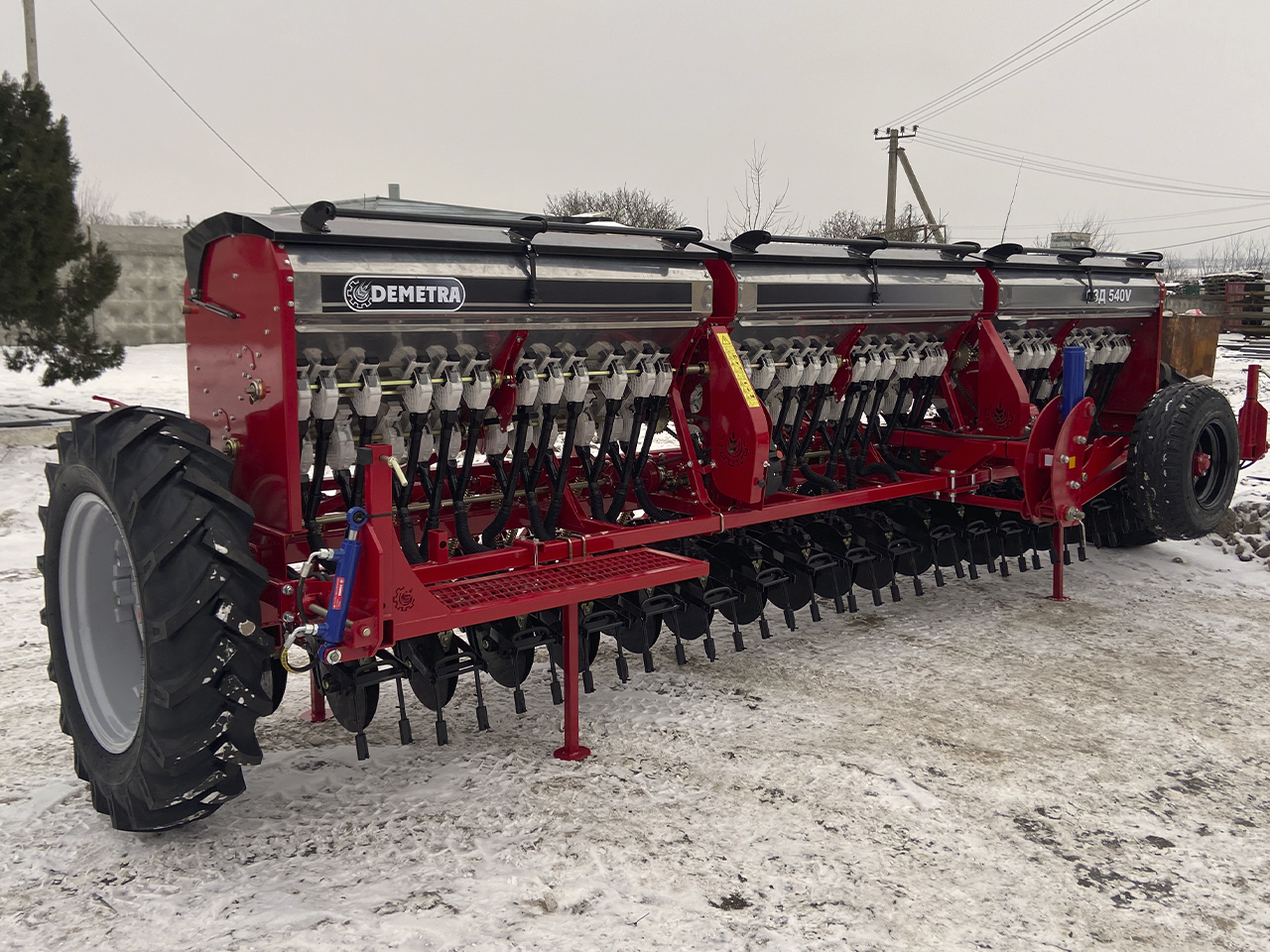

SZD-540V (SZ-5.4) – Grain Seeder with a continuously variable transmission (variator), designed for row seeding (wheat, barley, rye, oats), legumes (soy, peas, beans, chickpeas), small-seeded crops (rapeseed, mustard, flax) of loose and medium-loose grass seeds with simultaneous application of mineral fertilizers.
Advantages of this seeder:

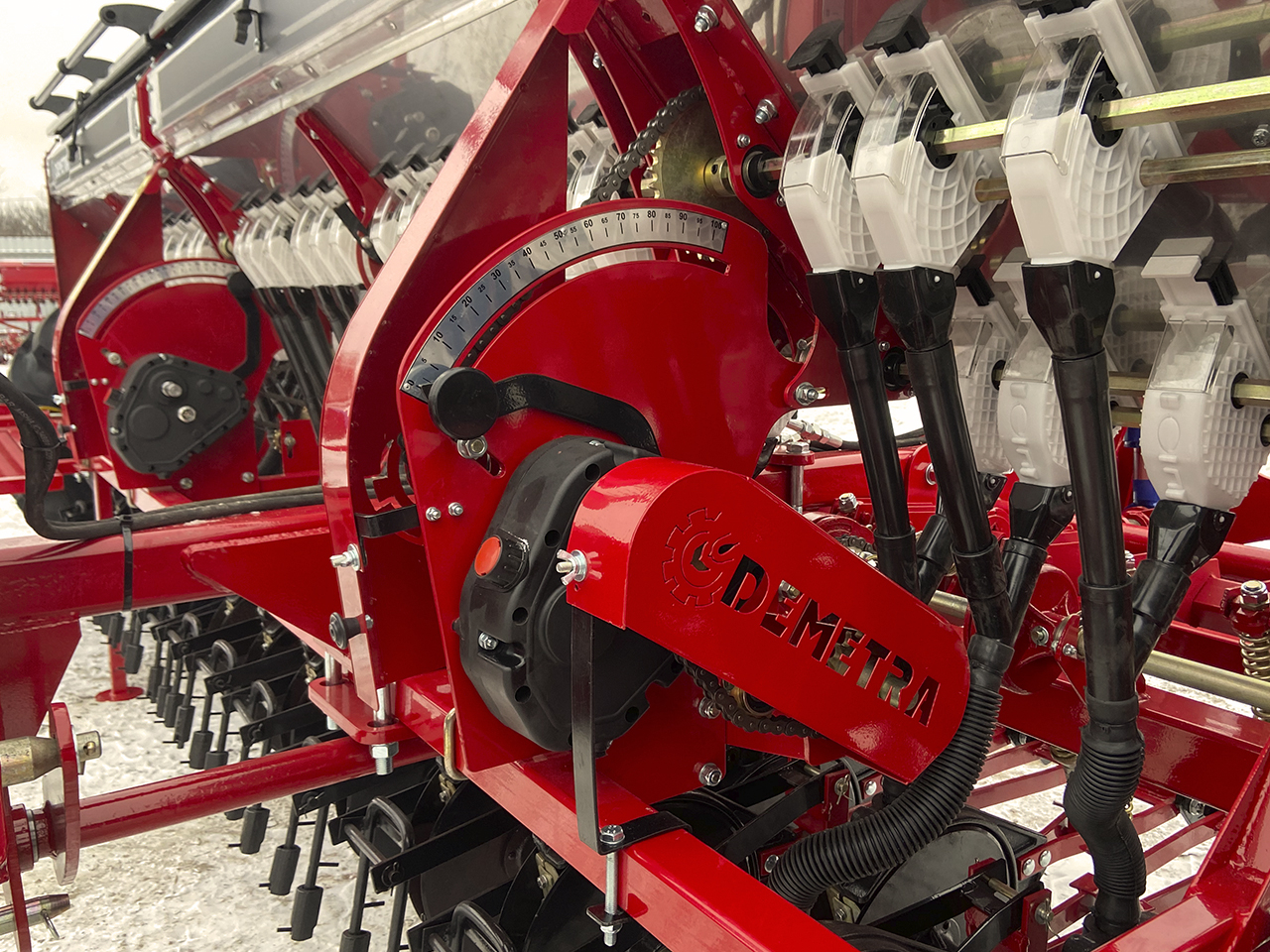

- Variator (continuously variable transmission mechanism)
- Rear wall of the tank made of stainless steel
- Seed metering and fertilizer metering devices made of polymer materials

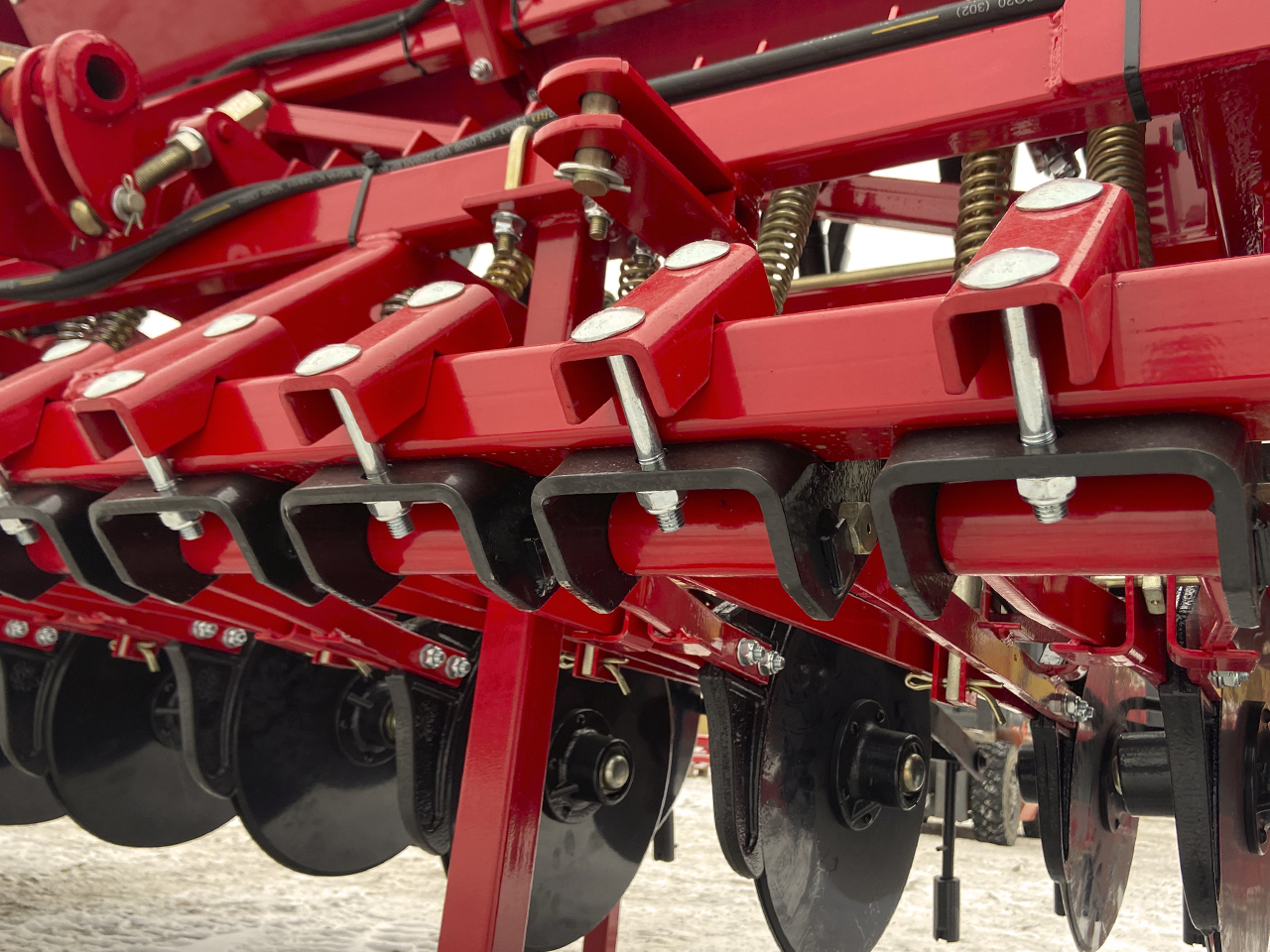

- Reinforced frame of the seeder

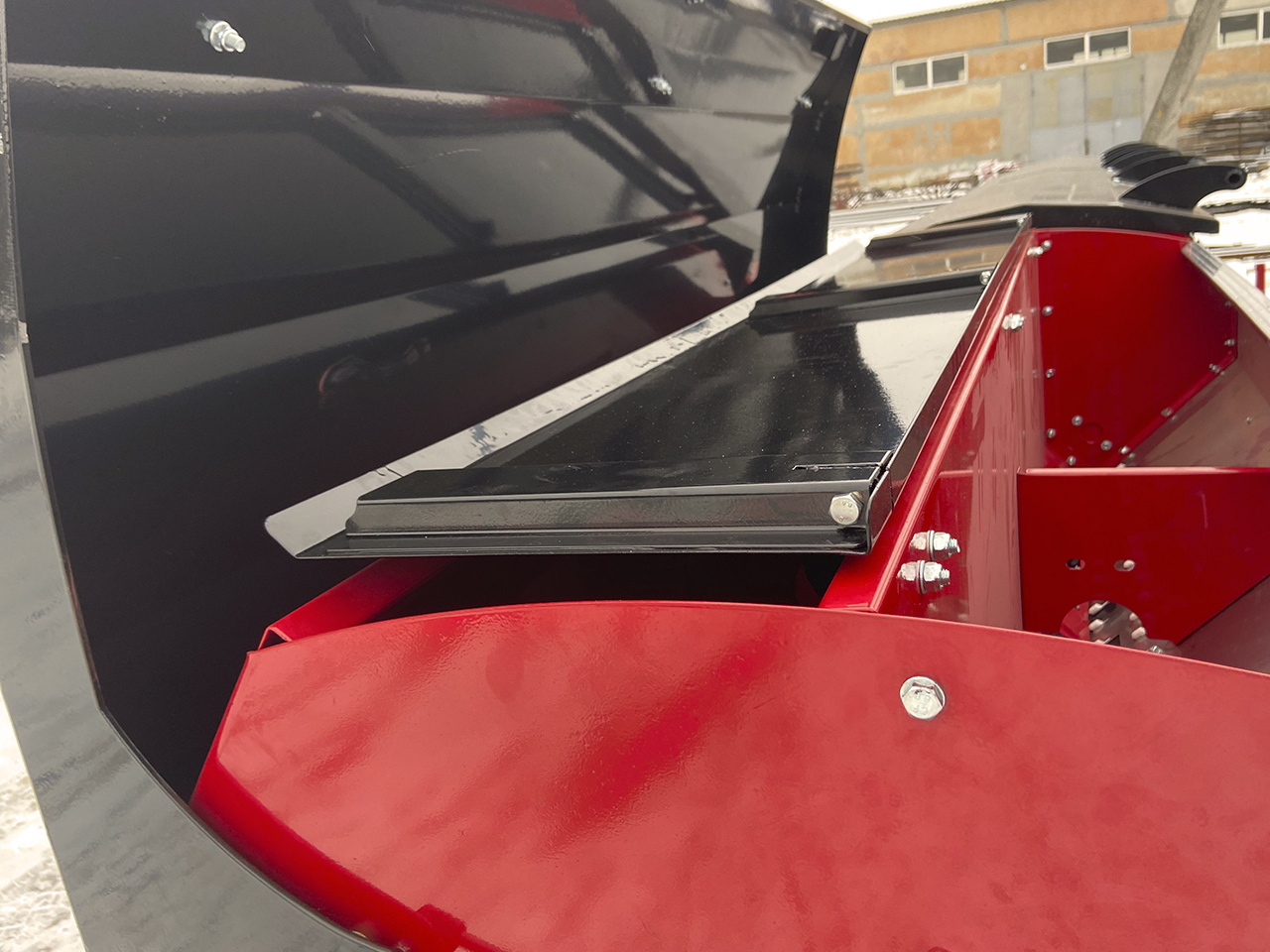

- Enlarged hoppers for grain and fertilizers
- Small-seed metering device

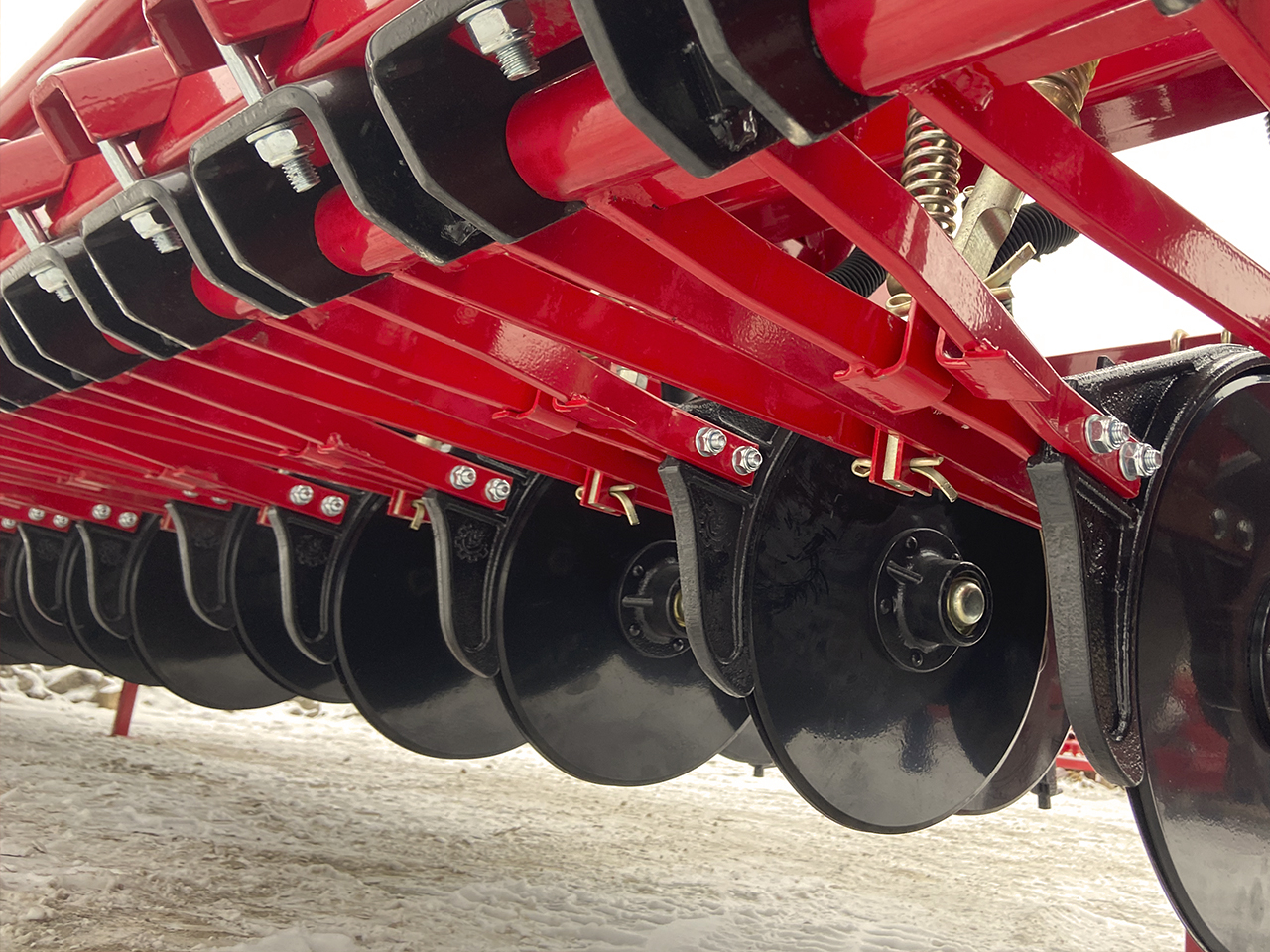

- Seeder discs made of boron-containing steel 30MnB5, 3 mm thick
- The seed metering bar has a thickness of 10 mm

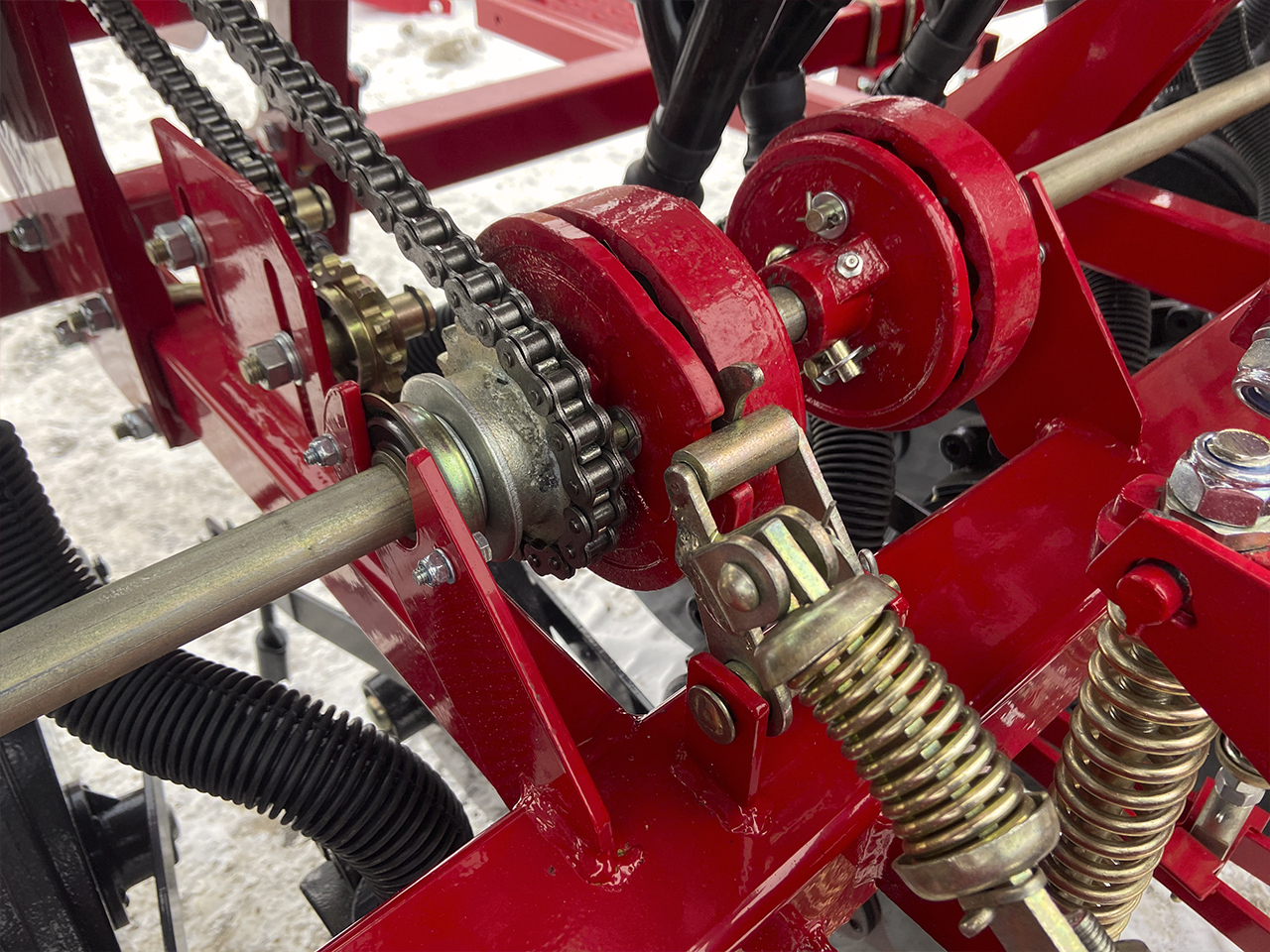

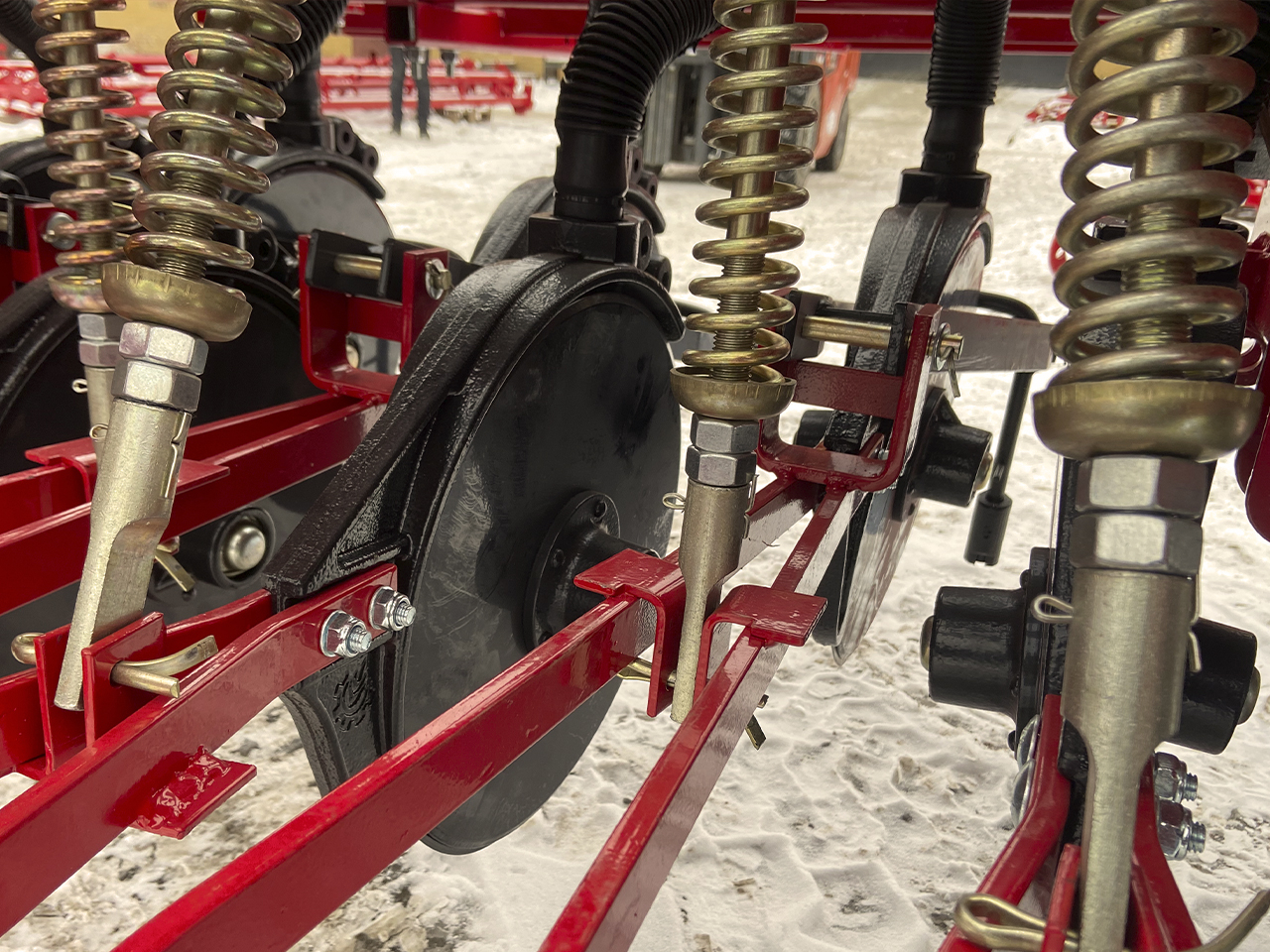

- Reinforced seeder shock absorber (16 mm bar, 6 mm spring)
- Counter-drive shafts mounted on rolling bearings
- Powder coating of individual parts
- Anti-corrosion galvanic coating on some parts
|
Specification Names |
Unit of Measure |
Parameters |
|||
|
SZD 360-V |
SZD 420-V |
SZD 540-V |
|||
|
Productivity per 1 hour of main operation |
ha/h |
3.2-4.3 |
3.8-5.0 |
4.9-6.5 |
|
|
Working speed during main operations |
km/h |
9-12 |
|||
|
Working capture width |
m |
3.6 |
4.2 |
5.4 |
|
|
Row spacing |
cm |
15 |
|||
|
Fertilizer placement depth |
mm |
20-80 |
|||
|
Number of seeding sections |
pcs |
24 |
28 |
36 |
|
|
Seed seeding rate |
kg/ha |
0.5-400 |
|||
|
Fertilizer seeding rate limits |
kg/ha |
25-200 |
|||
|
Seed placement depth |
mm |
20-80 |
|||
|
Weight of the seeder empty/filled with grain and fertilizers |
kg |
1680/2700 |
2680/ |
2830/ |
|
|
Overall dimensions of the seeder in working position with the transport device and markers |
m |
|
|||
|
|
Length |
3.50 |
3.80 |
4.55 |
|
|
Width (excluding markers) |
4.60 |
5.30 |
6.50 |
||
|
Height |
2.90 |
||||
|
Bunker capacity (total) |
m3 |
|
|||
|
|
for seeds |
0.720 |
0.900 |
1.140 |
|
|
for fertilizers |
0.350 |
0.440 |
0.552 |
||
|
Overall dimensions of the seeder in transport position with markers |
m |
|
|||
|
|
Length |
3.50 |
5.80 |
6.90 |
|
|
Width |
4.60 |
3.00 |
3.00 |
||
|
Height |
2.90 |
3.30 |
3.30 |
||
|
Transport speed, maximum |
km/h |
20 |
|||
|
Ground clearance, minimum |
mm |
300 |
|||
|
Deviation of seeding between individual seeding devices, maximum |
% |
0.5 |
|||
|
Volume of damaged (crushed) seeds, maximum |
% |
0.2 |
|||
